Left speaker right speaker – Definitive Technology BP7001SC User Manual
Page 10
+
-
Left Right
Power Amplifier or Receiver
LFE or Sub Out
(on receiver or pre-amp.)
Y-Connector

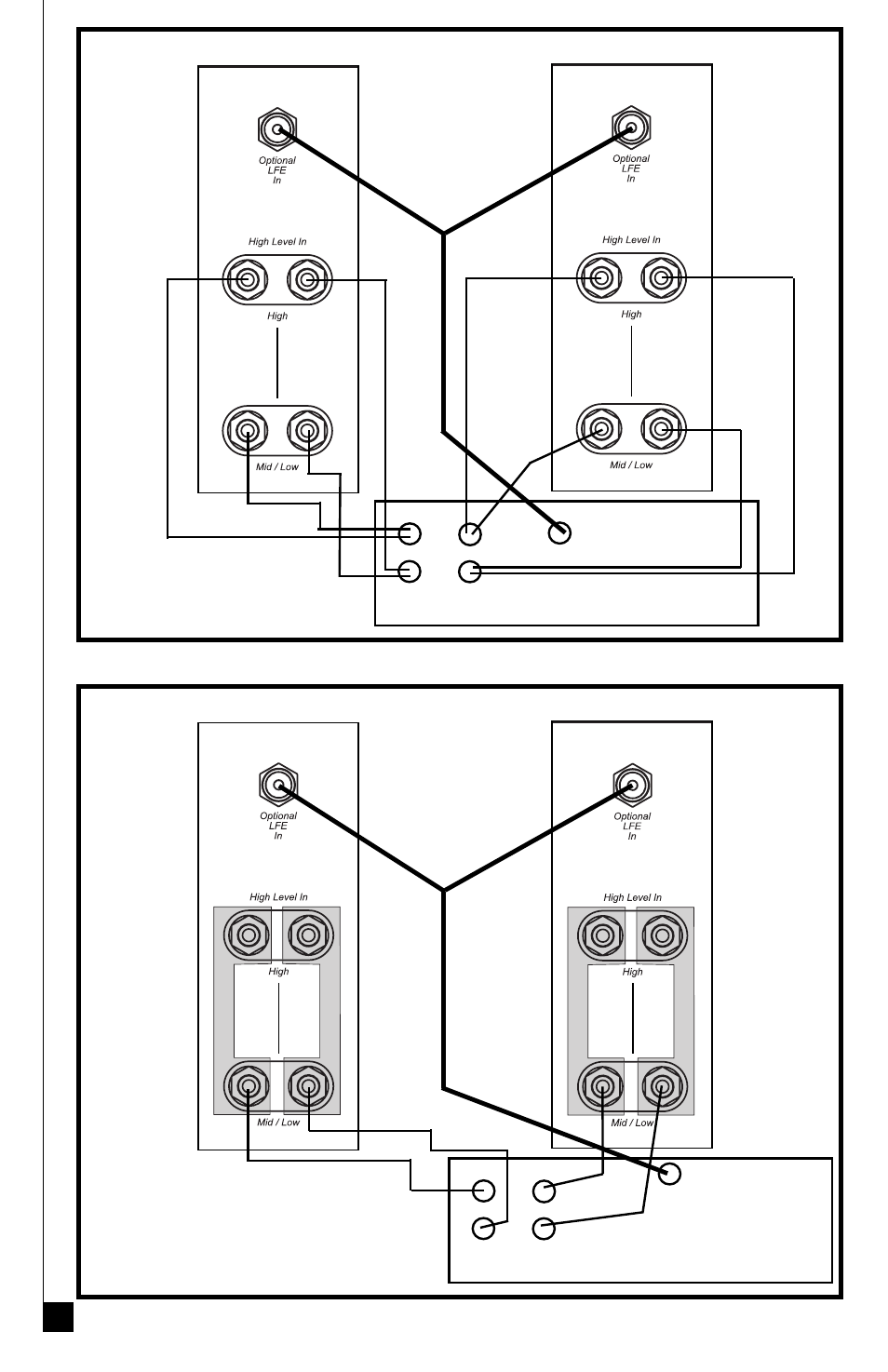

Diagram # 3: One Option for Using the BP7000
SC
/BP7001
SC
’s Optional LFE Input (Bi-Wired)
Left Speaker
Right Speaker
Diagram # 4: One Option for Using the BP7000
SC
/BP7001
SC
’s Optional LFE Input (Non Bi-Wired)
+
-
Left Right
Power Amplifier or Receiver
LFE or Sub Out
(on receiver or pre-amp.)
Y-Connector
Left Speaker
Right Speaker
