OPERATING INSTRUCTIONS

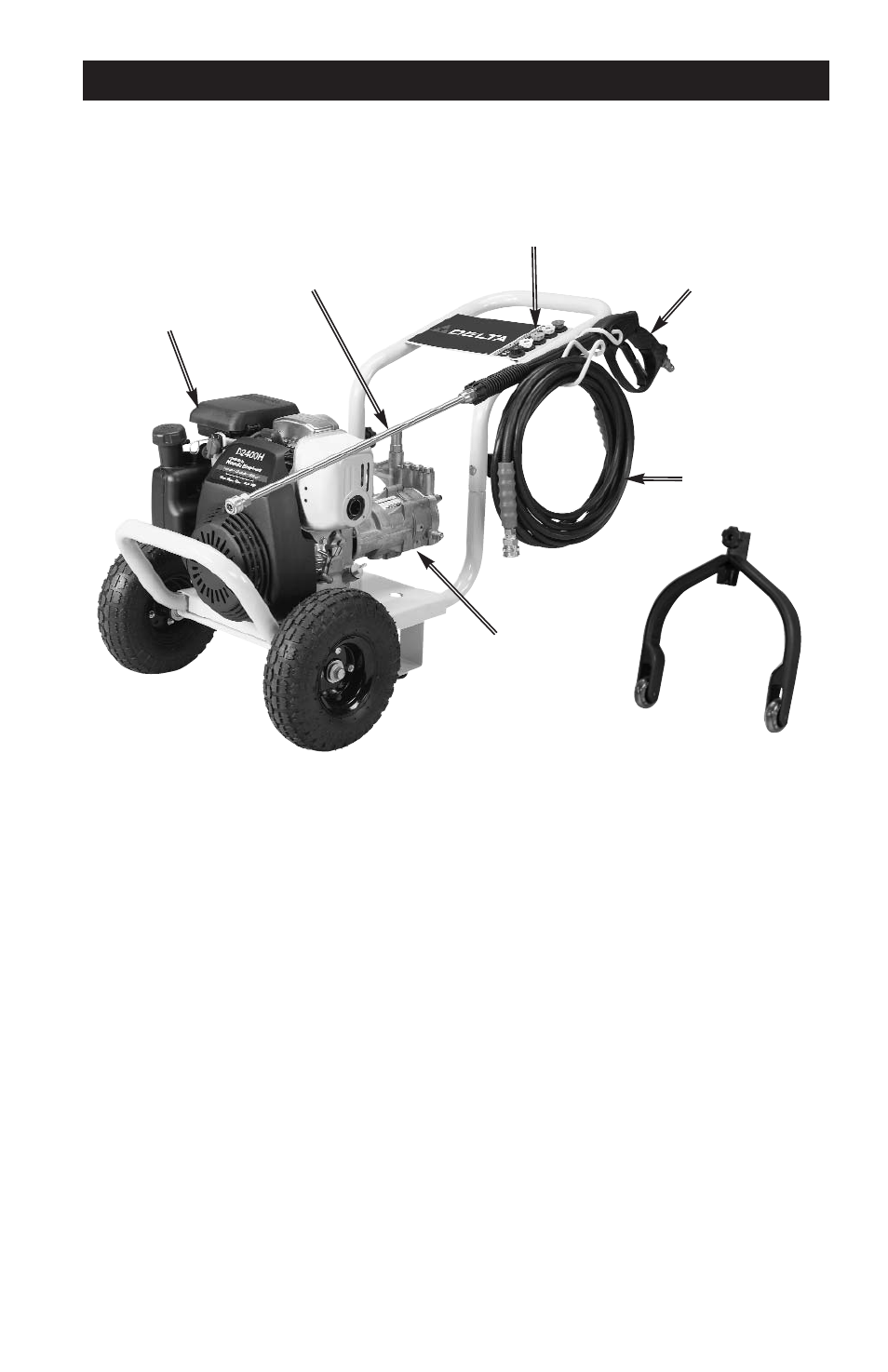

BASIC ELEMENTS OF A PRESSURE WASHER
High Pressure Pump: Increases the pressure of the water supply.
Engine: Drives the high pressure pump.
High Pressure Hose: Carries the pressurized water from the pump to the gun
and spray wand.
Spray Gun: Connects with spray wand to control water flow rate, direction, and
pressure.
Quick Connect Spray Wand: Spray wand is equipped with a female quick
connect coupler on the end. This allows the user to quickly change out high-pres-
sure nozzles for different spray patterns and change to the soap nozzle for low
pressure and chemical/soap applications. See How To Use Spray wand paragraph
in this section.
Chemical Hose (not shown): Feeds cleaning agents into the pump to mix with
the pressurized water. See How To Apply Chemicals/Cleaning Solvents in
Operation section of this manual.
"Water Vroom" surface cleaning guide: Allows the operator to maintain a
consistent distance when cleaning most any flat surface.
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Engine
High
Pressure
Hose
Spray
Gun
Quick
Connect
Spray
Wand
High
Pressure
Pump
Quick Connect Nozzles
Surface
Cleaning
Guide
