ImagePro 8039B
Multi-Media LCD projector
Specifications
Great Data and Super Video Images

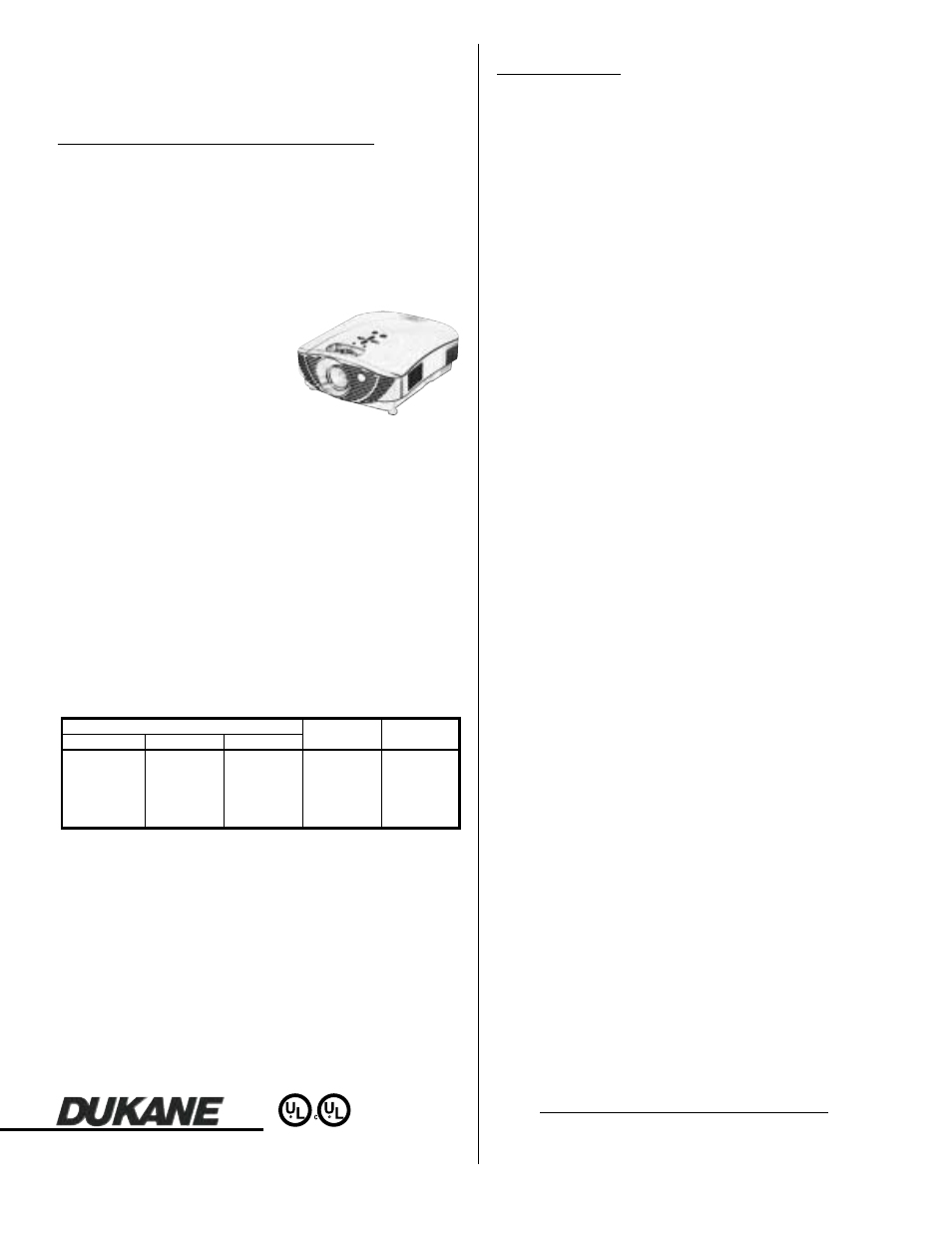

The Dukane ImagePro 8039B is a multimedia projector
that employs LCD elements to generate vibrant full color
images. The 8039B accepts signals from sources like a
VCR, DVD player, or PC/MAC computer.
Potential applications are placement on tables and carts,
or the projector can be permanently installed in a ceiling
mount.
Thºis value packed projector
has SVGA resolution with
advance electronics that permit
showing XGA. An IR remote
control permits operation from
convenient locations and can
turn the projector completely
“On” or “Off”.
• Multi Media Projector
• SVGA 800 x 600 and Compressed XGA 1024 x 768
• 1400 Lumens for a bright image
• 400:1 Contrast Ratio
• HDTV Compatible
• Digital Keystone Correction
• Kensington Lock Slot for security
• Monitor Loop Thru and Picture -In- Picture
• Zoom Lens with a 1.3x range
Two (2) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program.
2
YR
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
Toll-free: 800-676-2485
Fax:
630-584-5156
E-mail: [email protected]
#11592-B-04
8039B
Image Element
0.7” polysilicon active-matrix
TFT x3
Brightness 1400 ANSI lumens
Resolution 800 x 600 pixels (H X V)
Contrast 400 to 1
Scanning Frequency fh 30-70 kHz, fv 56-85 Hz
Lens Manual zoom & focus lens, 1.3X
Lens Throw Ratio 1.48 to 1.91:1, throw distance
to image width
Keystone Correction Digital, vertical +/-15 degree
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA,
Compatibility SXGA(Compressed) for PC, and
Mac13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL,
SECAM, S-video, HDTV (1080i,
720p, 575i)
Picture -In- Picture Video image in computer
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 150W UHP
Lamp Life 2000 hours (typical)
Audio 1 speaker x 1 watt
Throw Distance 3.5 to 20 ft.
Screen Size 35” to 200”
Inputs, Video (1) Min DIN 4-pin, s-video
(1) RCA, composite video
(1) Audio, Stereo, RCA x 2
Inputs, Computer (1) Signal: D-sub, 15 pin
(1) Audio, PC mini plug
Inputs, Other 15 pin, D-sub RS-232 Service
Outputs Monitor 15 pin, D-sub
Outputs,other USB for Mouse control
Operating Range 5 to 35 deg. C
Security Kensington lock slot
Fan Level 36dB, very quiet
Power AC 100-120V, AC220-240V
50/60 Hz, 220 watt
Size (WxHxD) 10.5” x 3.5” x 11.4”
Weight 5.9 lbs.
Shipping Weight 14 lbs.
Carton Size 19.5” x 10.3" x 17.5”
Accessories Included Remote control, batteries, power
cord, Video cable, Audio cable,
RGB cable, operators manual and
soft carry case.
Safety UL/CUL, EC, FCC Class B
Optional Accessories Lamp 456-242; rolling
briefcase; 185-406
Projection throw distances for 4:3 Aspect, in inches (feet)
60 (5.0) 48 (4.0) 32 (3.0) 71 (5.9) 92 (7.7)
72 (6.0) 57 (4.7) 43 (3.6) 85 (7.1) 111 (9.3)
84 (7.0) 67 (5.6) 50 (4.2) 99 (8.3) 129 (10.8)
100 (8.3) 80 (6.7) 60 (5.0) 118 (9.8) 154 (12.8)
120 (10.0) 96 (8.0) 72 (6.0) 142 (11.8) 184 (15.3)
Minimum distance to screen is 59 inches (4.9 feet)
Image Size in inches (feet) MIN Max
Diagional Width Height Throw Throw
