Disassembly/Assembly Instructions (continued)
7. Slip 94523 Inlet Adapter through muffler assembly and install 95711 Retainer Ring into groove on inlet adapter.
8. Install air control ring into housing.
9. Apply Loctite
® #567 to threads of 94523 Inlet Adapter and install entire muffler assembly onto housing inlet (torque 23.0 N•m/200 in. - lbs.).
10. Replace air fitting. Secure inlet adapter with a wrench before tightening air fitting.
11. Install throttle lever and 01017 Pin.
Tool Assembly Complete. Please allow 30 minutes for adhesives to cure before operating tool.
Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the
tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet
with throttle lever depressed. Operate tool for 30 seconds to determine if tool is operating properly and to allow lubricating oils to properly penetrate motor
Loctite ® is a registered trademark of Loctite Corp.
DYNABRADE
®
DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524
DYNABRADE EUROPE S.àr.l.,
Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1
© DYNABRADE, INC., 2001 PRINTED IN USA
Visit Our Web Site: www.dynabrade.com Email: [email protected]

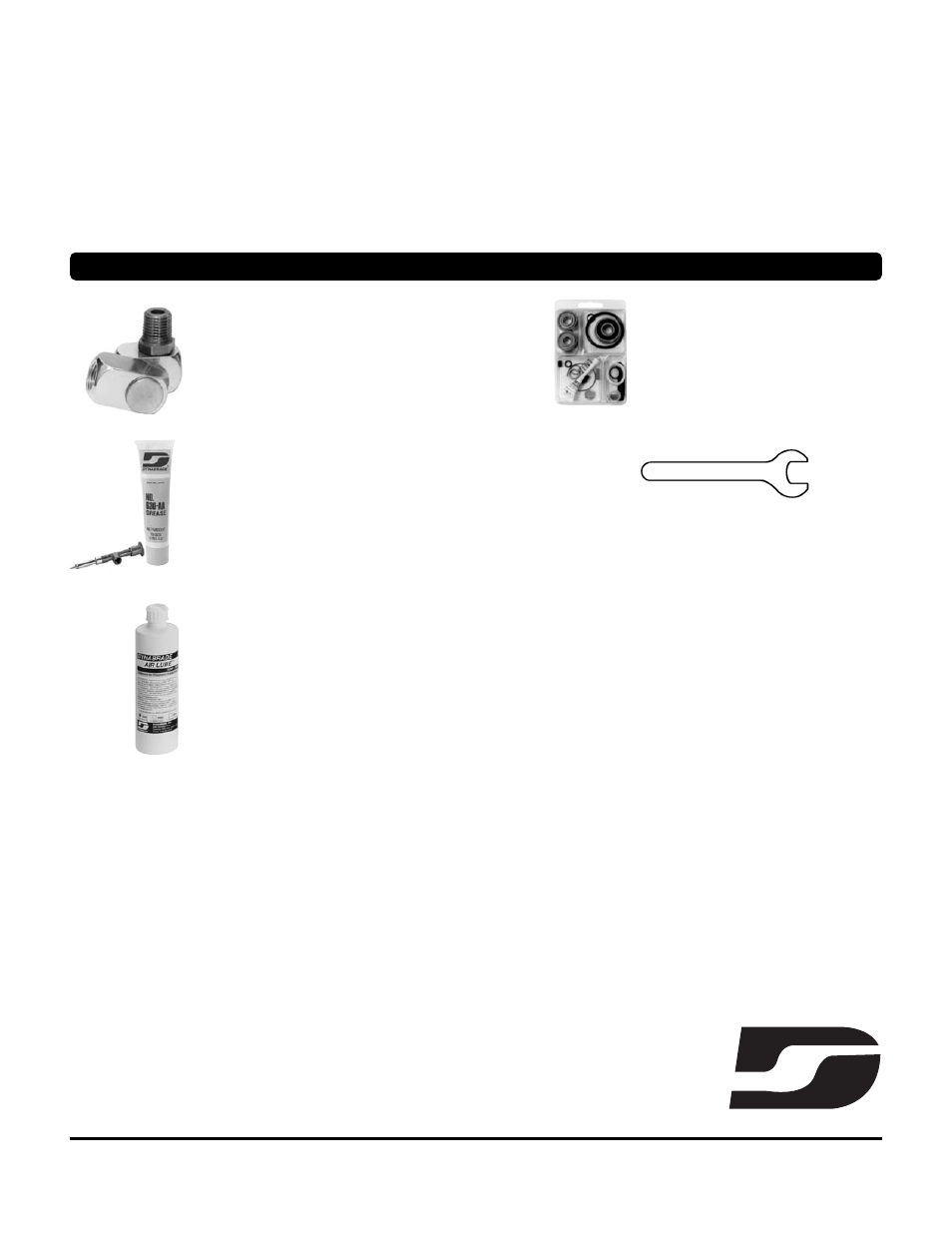

Optional Accessories
Dynaswivel ®
Swivels 360° at two locations which allows an
air hose to drop straight to the floor, no matter
how the tool is held.
Note: For proper connection to a 1/4" NPT
a threaded reducing bushing is required.
• 95461 3/8" NPT.
96234 Tune-Up Kit
• Includes assorted parts to help
maintain and repair motor.
95542 Grease 10 oz.
• Multi-purpose grease for all types of bearings, cams, gears.
• High film strength; excellent resistance to water, stream, etc.
• Workable range 0˚F to 300˚F.
95541 Push-type Grease Gun
• One-hand operation.
Dynabrade Air Lube
• Formulated for pneumatic equipment.
• Absorbs up to 10% of its weight in water.
• Prevents rust and formation of sludge.
• Keeps pneumatic tools operating longer
with greater power and less down time.
95842: 1 pt. (437 ml)
95843: 1 gal. (3.8 L)
95281 Wrench – 19 mm
