3. Lever lower
hinge pin out
with door
(keep 3
washers) 2. Knock
out top
hinge pin
750873 Issue A
ECN: 04053

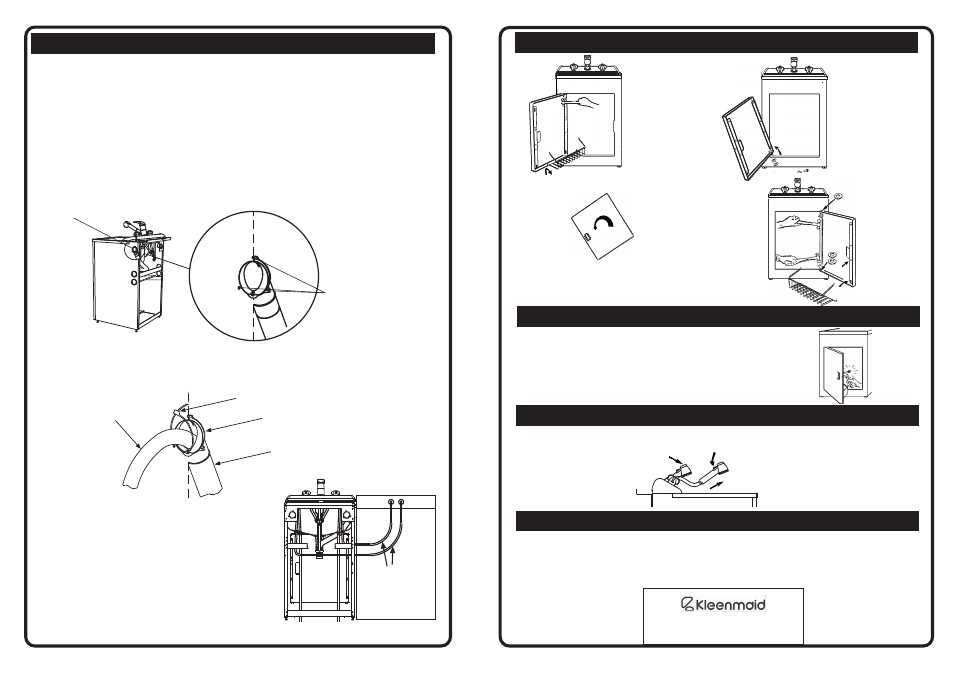

The Washing Machine Waste Hose can be connected to either the side or rear
of the laundry tub.
A1: Rear Mounted.
Place the Washing Machine Connector from the inside of the laundry tub to either
the L/H or R/H holes beneath the Rear Shelf. Fasten from the outside with the
3 screws supplied. ( P H O T O A & B ) Insert the Grommets in all 6 holes in the
side panels.
A2: Side Mounted.
Fit Grommets supplied from installation kit into side panel holes. Insert Grommets
in the 3 holes that are not to be used for plumbing. On the opposite side fit
Grommet to the bottom 2 holes only, and tap the centre section inward to
produce a hole for the Washing Machine Hoses.
Place the Washing Machine Waste Hose from inside the laundry tub to the
required side hole fastening it from the outside with the 3 screws supplied.
(Pictured)
D: Pass the Washing Machine Inlet Hoses through
the gap, fastening them firmly to Pipe Work
Connectors.
E: On completion of installation check the
complete system for water leaks.
IMPORTANT: Ensure flexible hose is correctly fitted to the plastic waste outlet and
the plastic washing machine connector and that the spring clip is firmly in place.
B: To prevent the Washing Machine Waste Hose from coming loose use the Tie
provided to fasten the hose firmly to the Washing Machine Waste Connector.
3 C o n n e c t W a s h i n g M a c h i n e
Washing
Machine
Waste
Hose
Tie
Washing Machine Waste Connector
Washing Machine Inlet Hose
The Safety Latch comes as a standard
fitting in the interests of child protection
against dangerous chemicals and
cleaning fluids. However, should you
not require the latch it can easily be
snipped off with sidecutters or similar
hand tool.
5 S a f e t y L a t c h
1. Remove
door rack
6 P u l l o u t S p o u t H a n d l e
7 C L E A N I N G
Powder coated surfaces must not be cleaned with abrasive or chemical cleaners. T o k e e p
t h e T a p w a r e p r o d u c t s l o o k i n g t h e i r b e s t , w i p e r e g u l a r l y w i t h a d a m p s o f t
c l o t h . S o m e t i m e s a m i l d s o a p a n d w a t e r s o l u t i o n m a y b e n e c e s s a r r y t o s h i f t
t h e s t u b b o r n d i r t . U n d e r n o c i r c u m s t a n c e s u s e h a r s h d e t e r g e n t s
( i n c l u d i n g c h e m i c a l c l e a n e r s ) b l e a c h e s , s c o u r e r s o r a n y a b r a s i v e c l e a n e r .
T h e s e p r o d u c t s m a y i r r e p a r a b l y d a m a g e m a n y t a p w a r e f i n i s h e s , e s p e c i a l l y
g o l d a n d c o l o u r c o a t e d .
N B . T h e i r u s e w i l l r e n d e r t h e w a r r a n t y v o i d .
Washing Machine
Waste Connector
Fixed with 3 Screws
Alternatively it can be
fitted to the rear
shelf.
Holes
Washing Machine
Hoses
4. Turn door
around
5. Tap in
hinge pins
with
washers
in position
one at
top, two
at bottom
6. Refit door rack
(top first)
4 C h a n g e D o o r
To return pullout
spout to standard
flow press the
release button
T o u s e t h e s p r a y
f u n c t i o n , p r e s s t h e
e n g a g e b u t t o n
Pull out the hand unit for
flexibility in cleaning or
general use.
MANUFACTURED FOR:
BY:
ROBINHOOD LIMITED
6 ZELANIAN DRIVE, EAST TAMAKI
AUCKLAND, NEW ZEALAND
ISO9001 Certified
