Dakota Digital LAT-NR402 - Manual

MAN#650235 :B
INSTALLATION INSTRUCTIONS
LAT-NR402
LED Tail Lights for 1980-90 Caprice, 1986-90 Impala
1983-84 Pontiac Parisienne
MAN#650235 rev. B

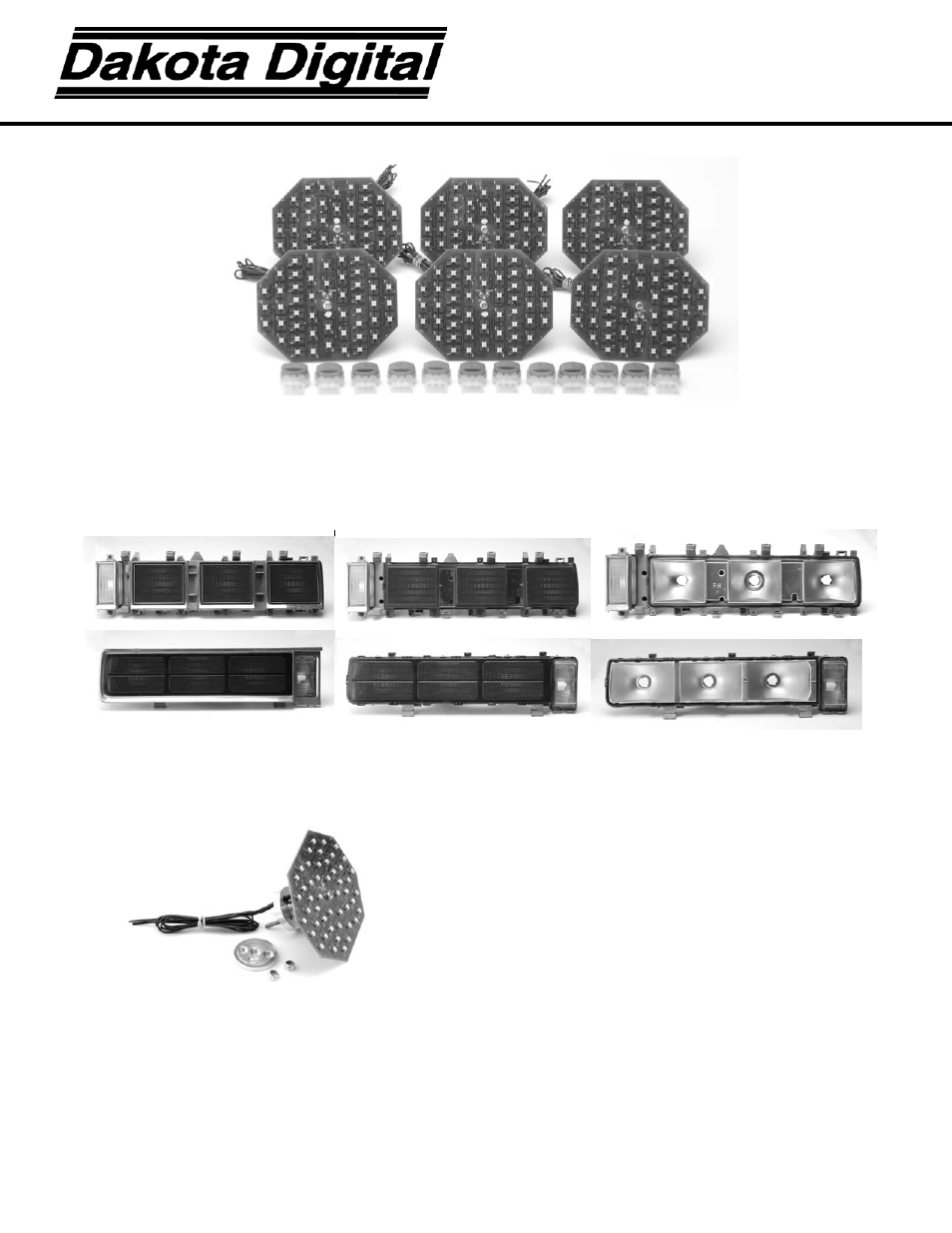

Kit Includes:
Installation:
1. Remove the original bulb connector from the back side of the housing.
2. Remove the tail light housing from the car.
3. Remove any body trim from the housing so the screws holding the lens on are exposed.
4. Remove the tail light lens.
5. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is
recommended.
6. Remove the lock nuts and aluminum back plate from the back of the new LED assembly.
