PREPARATIONS BEFORE OPERATION

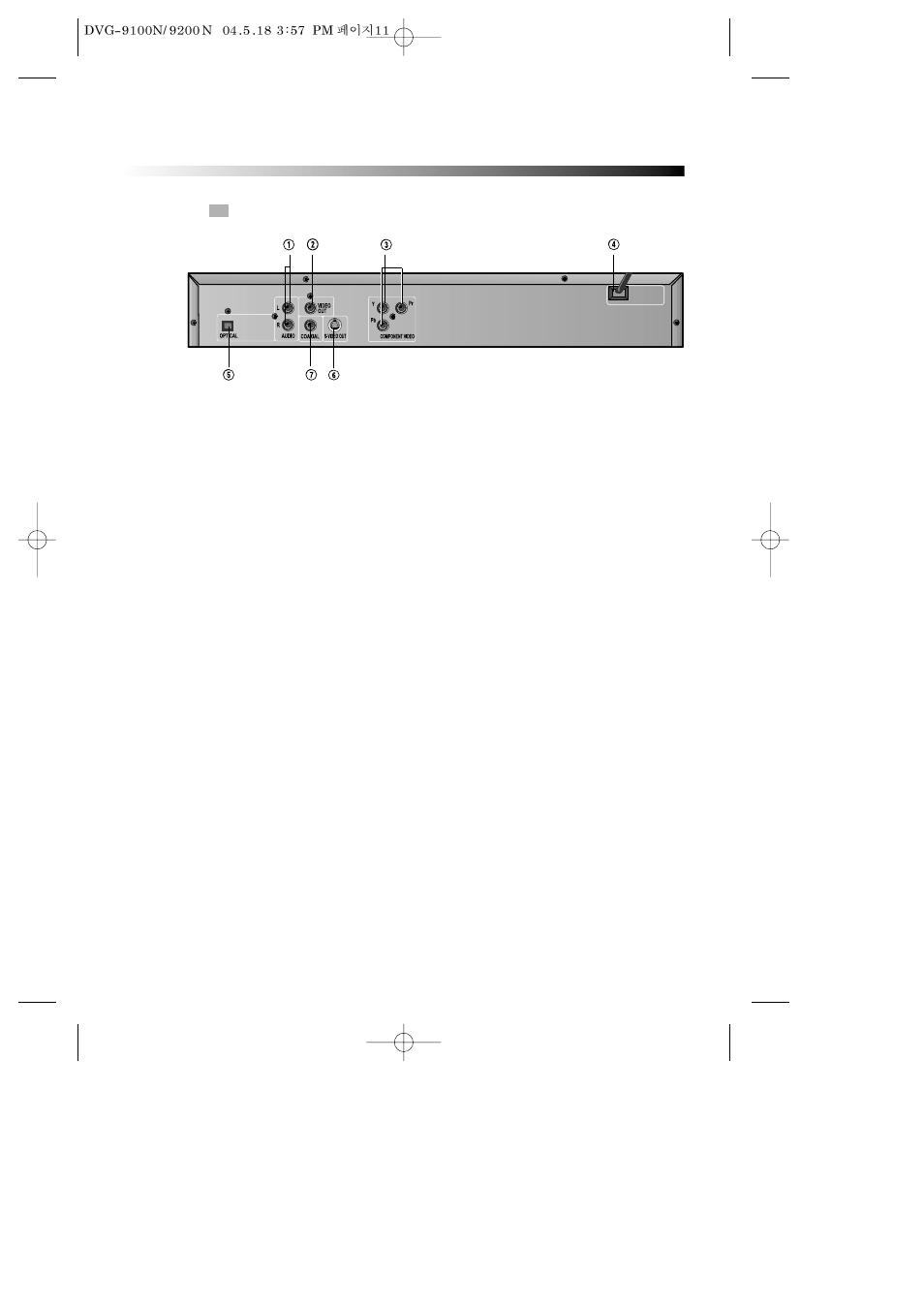

REAR PANEL
! AUDIO OUT (L/R TRACK)
Two phono sockets for analogue 2 Channel audio in order to a TV or stereo amplifier.
@ VIDEO OUT
Connects composite video signal to input AV or PHONO sockets of TV or monitor to achieve
high fidelity colour reproduction.
# COMPONENT (Y.Pb.Pr)
Connects to TV or monitor equipped with Component input . In order to achieve a sharper and
cleaner picture than when connected via VIDEO OUT (composite video).
$ POWER SUPPLY SOCKET WIRE
Creates POWER between wall outlet and the unit..
% DIGITAL AUDIO OPTICAL OUT
Connects digital audio under play mode into an AV amplifier or a receiver equipped with
digital audio decoder for you to enjoy the theatre-quality sound in your home.
^ S-VIDEO OUTPUT
Connects to TV or monitor equipped with S-VIDEO input. In order to achieve a sharper and
cleaner picture than when connected via VIDEO OUT (composite video).
& DIGITAL AUDIO COAXIAL OUT
Connects digital audio under play mode into an AV amplifier or a receiver equipped with
digital audio decoder for you to enjoy the theatre-quality sound in your home.
