Installation
4
for the associated link. For a x8 connection, only one LED will be lit over the lower
port.

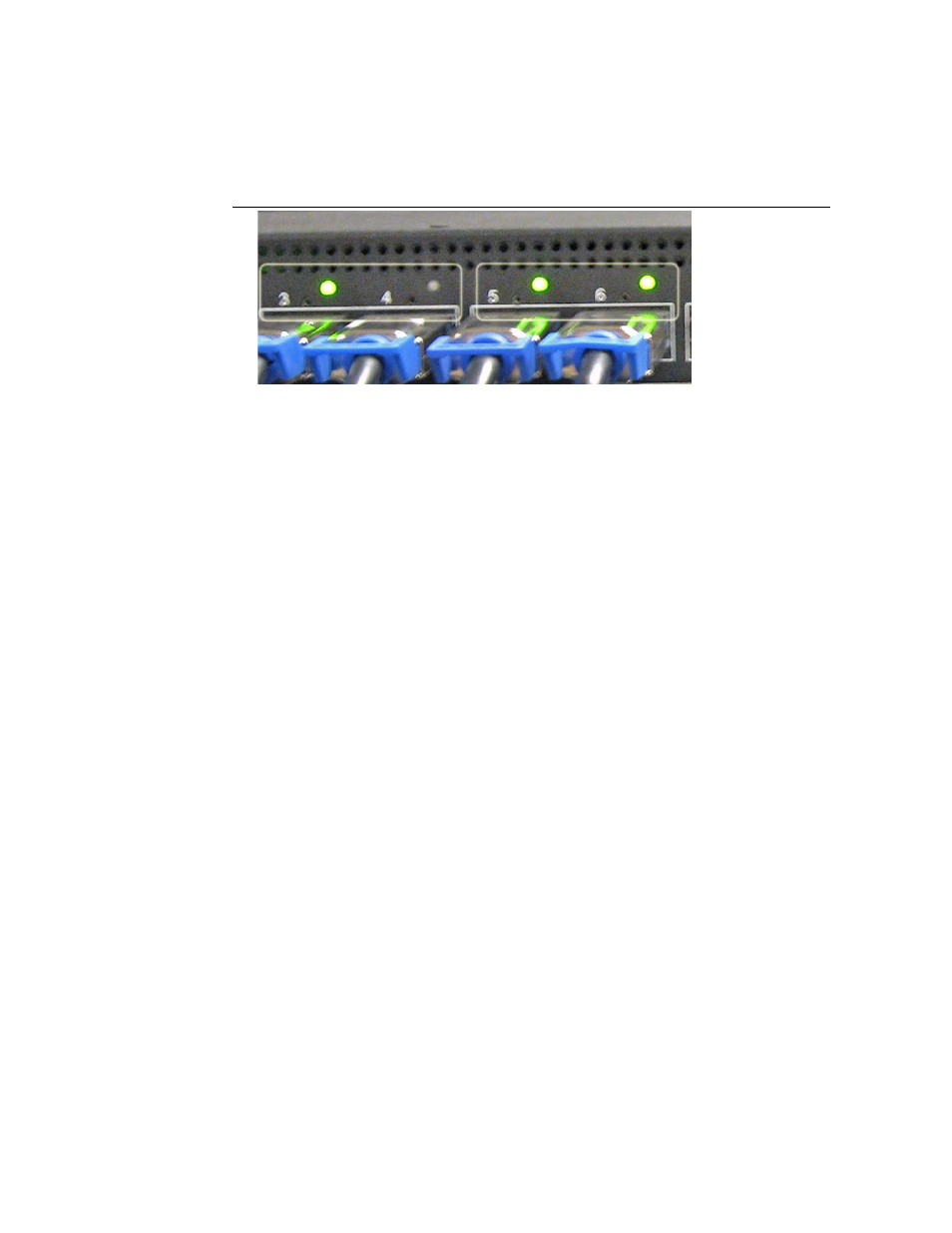

Figure 1–3 Switch LEDs
Note:
Ports 3 and 4 illustrate a x8 connection with a single LED lit while Ports 5 and 6 illus-
trate two independent x4 connections with a LED lit for each port.
10. The switch is now ready to use
