Specifications, Ds series installation – Dual DS SERIES DS573 User Manual
Page 5
MOUNTING HEIGHT
TWEETER PROTRUSION
TOP-MOUNTING DEPTH
BOTTOM-MOUNTING DEPTH
CUT-OUT DIAMETER
Specifications
5
DS SERIES
INSTALLATION

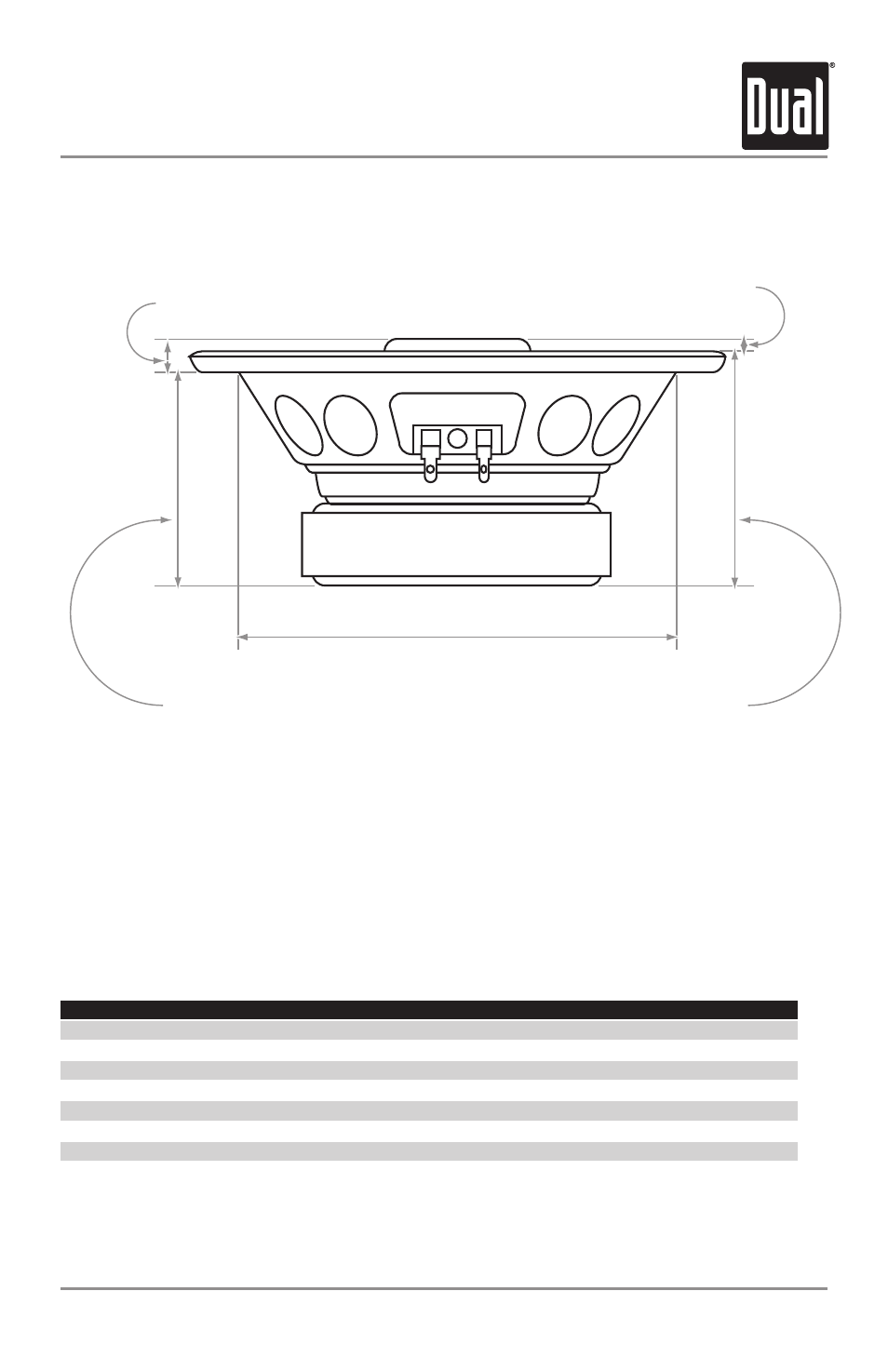

The diagram featured above is to be used in conjunction with the specifications matrix
guide below:
DS42
.38"
2.25"
.25"
2.00"
3.63"
86
85Hz-20kHz
50
100
DS52
.44"
3.06"
.31"
2.75"
4.56"
86
80Hz-20kHz
50
100
DS652
.38"
2.00"
.25"
2.30"
5.63"
86
80Hz-20kHz
50
100
DS692
.38"
3.00"
.19"
3.31"
6.00" x 8.69"
88
70Hz-20kHz
60
120
DS573
.40"
2.10"
.30"
2.40"
5.00" x 7.13"
90
70Hz-20kHz
60
120
DS653
.40"
2.10"
.30"
2.40"
5.63"
89
75Hz-20kHz
60
120
DS693
.40"
2.68"
.30"
2.98"
5.88" x 8.69"
91
60Hz-20kHz
75
150
Mounting
Height
Top-Mounting
Depth
Tweeter
Protrusion
Bottom-Mounting
Depth
Cut-out
Diameter
Sensitivity
(dB)
Frequency
Response
RMS
Power
Rating
Peak
Power
Rating
