Page 17
17

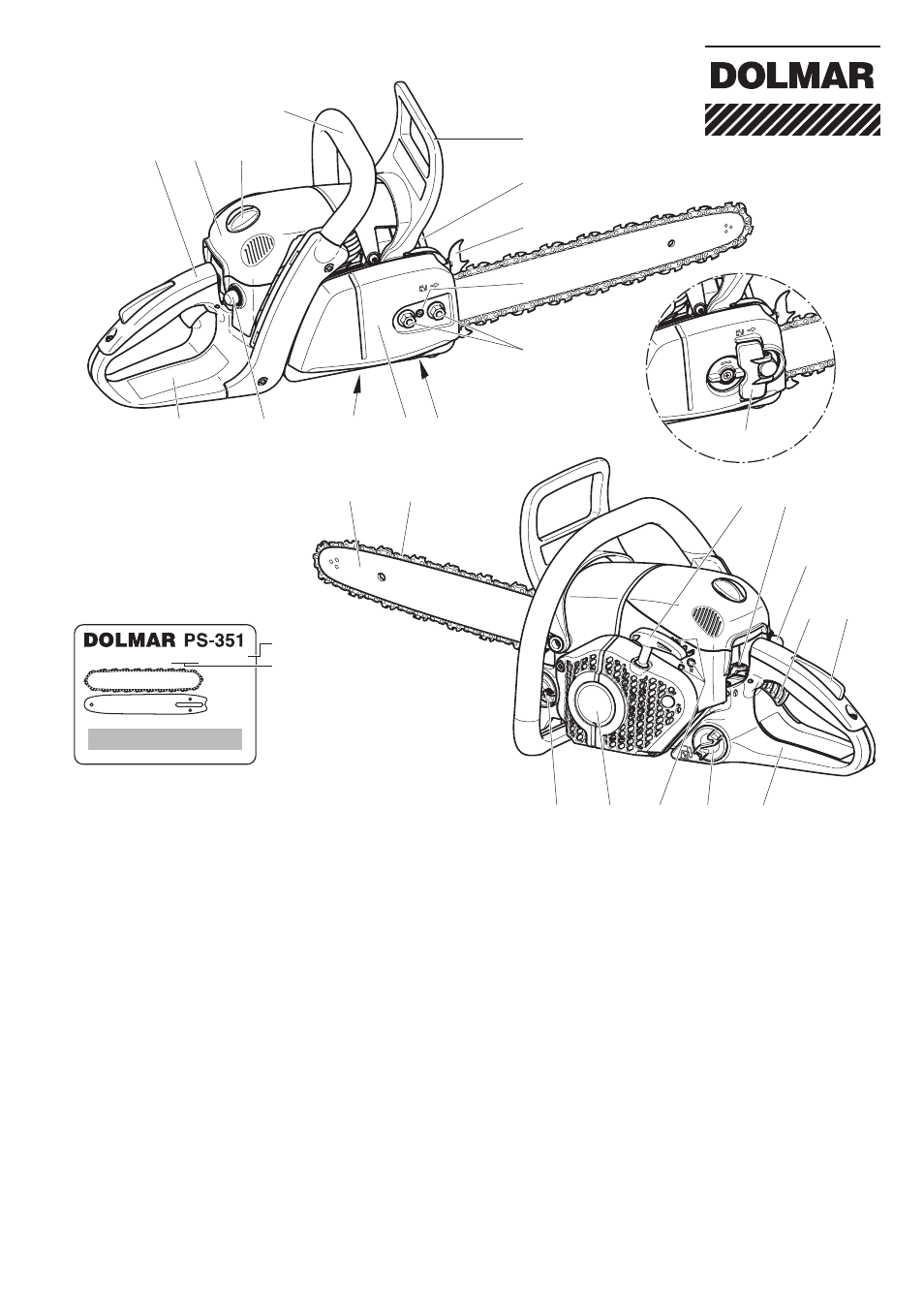

Denomination of components
Indicate when ordering spare parts!
Identification plate
Serial no.
Year of manufacture
1 Handle
2 Cover
3 Hood lock
4 Tubular handle
5 Hand guard (release for chain brake)
6 Muffler
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Adjusting screw for oil pump (bottom side)
13 Fuel pump (Primer)
14 Identification plate
15 Starter grip
16 Combination switch (Choke / Start / Stop)
17 Fuel pump (Primer)
18 Throttle lever
19 Safety locking button
20 Rear hand guard
21 Fuel tank cap
22 Adjusting screws for carburetor
23 Fan housing with starting assembly
24 Oil tank cap
25 Chain (Blade)
26 Guide bar
27 Sprocket guard quick tensioner
2
26
25
16
15
18
17
19
3
4
1
6
7
5
8
9
11
12
20
21
23
24
10
13
14
27
22
6" (400mm)
0 2456
42.040.66
XXX.XXX. XXX
Typ 94
528.092.056
DOLMAR GmbH, 22045 Hamburg, Germany
