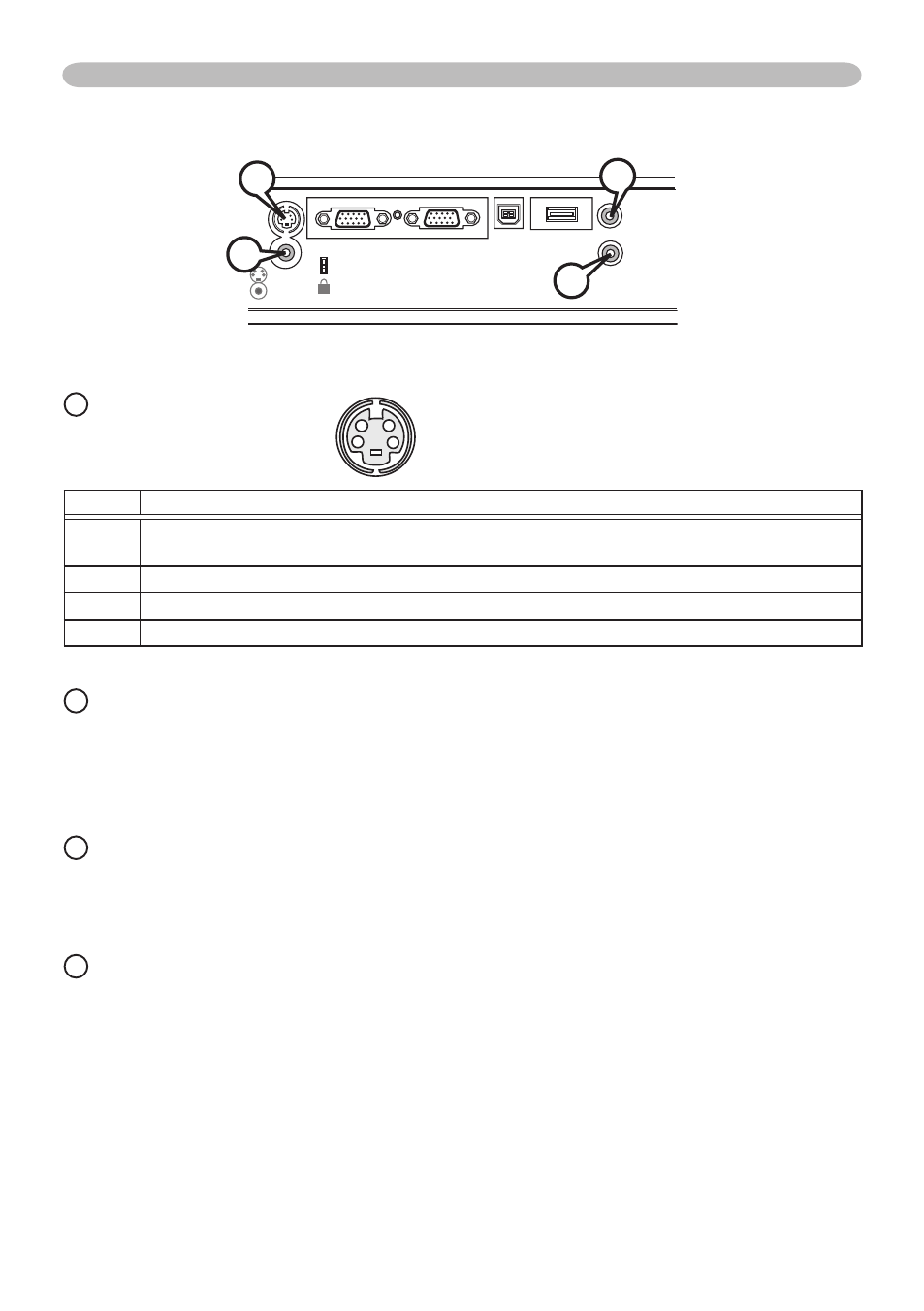

Connection to the ports (continued)
4 3
2
D VIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
• 1.0±0.1Vp-p, 75Ω terminator
E AUDIO IN
Ø3.5 stereo mini jack
• 200 mVrms 47kΩ terminator
F AUDIO OUT
Ø3.5 stereo mini jack
• 200 mVrms 1kΩ output impedance
C S-VIDEO
Mini DIN 4pin jack
Pin Signal
Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator
Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground
D
C
F
E
