INSTALLATIONS

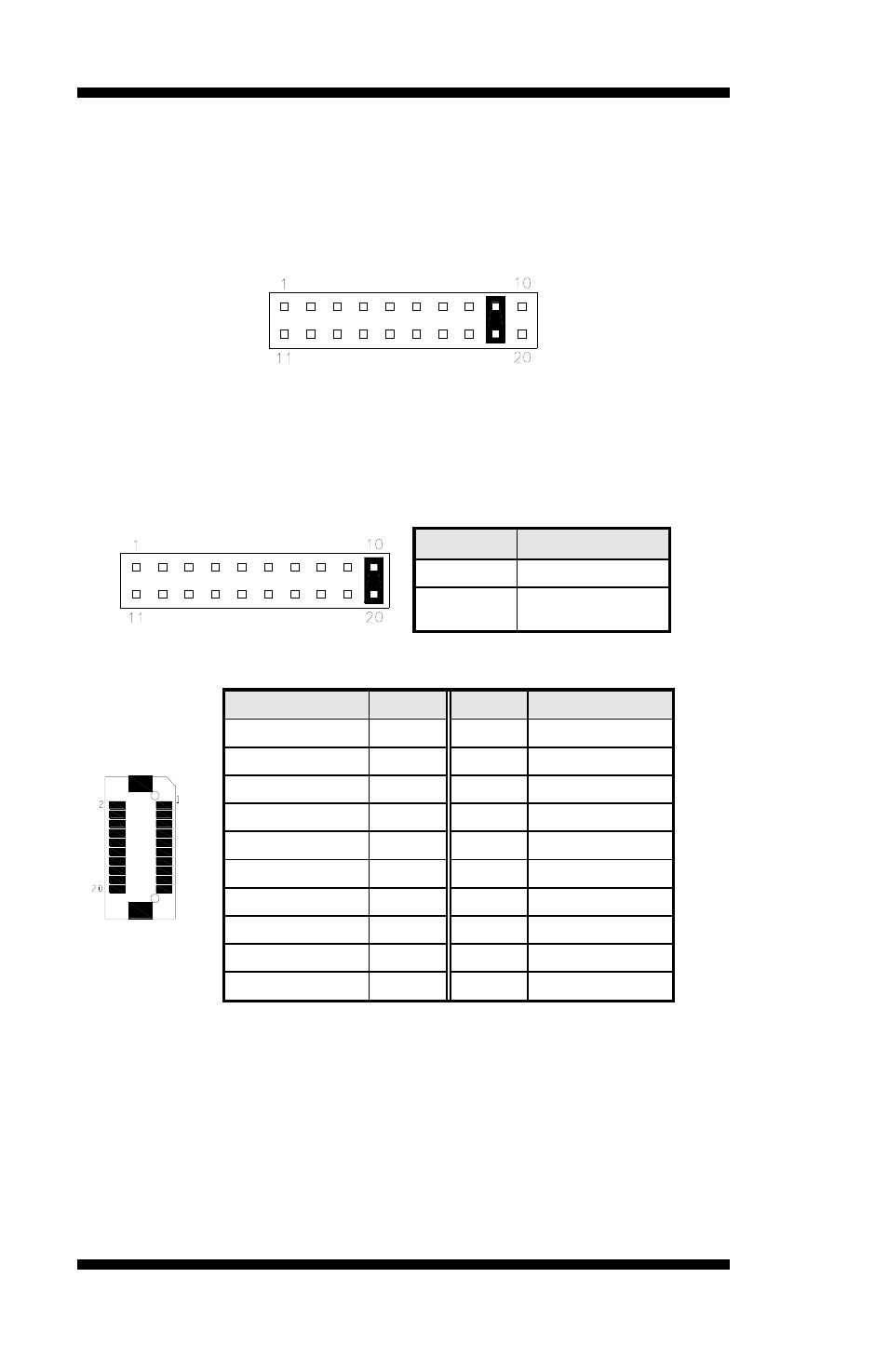

Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
this header.
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin #
Signal Name
10 HDD
Active
20 5V
J7, J8: LVDS Connectors (DF13 type)
Signal Name
Pin #
Pin #
Signal Name
TX0- 2
1 TX0+
Ground 4 3 Ground
TX1- 6
5 TX1+
*5V/3.3V 8 7 Ground
TX3- 10
9 TX3+
TX2- 12
11 TX2+
Ground 14 13 Ground
TXC- 16
15 TXC+
*5V/3.3V 18 17 ENABKL
+12V 20
19 +12V
Remarks: These connectors support 24-bit.
J7 is 1st channel. J8 is 2nd channel.
JP3 can be used to set 3.3V or 5V.
