IBASE IB882 - Manual (Page 17)

INSTALLATIONS

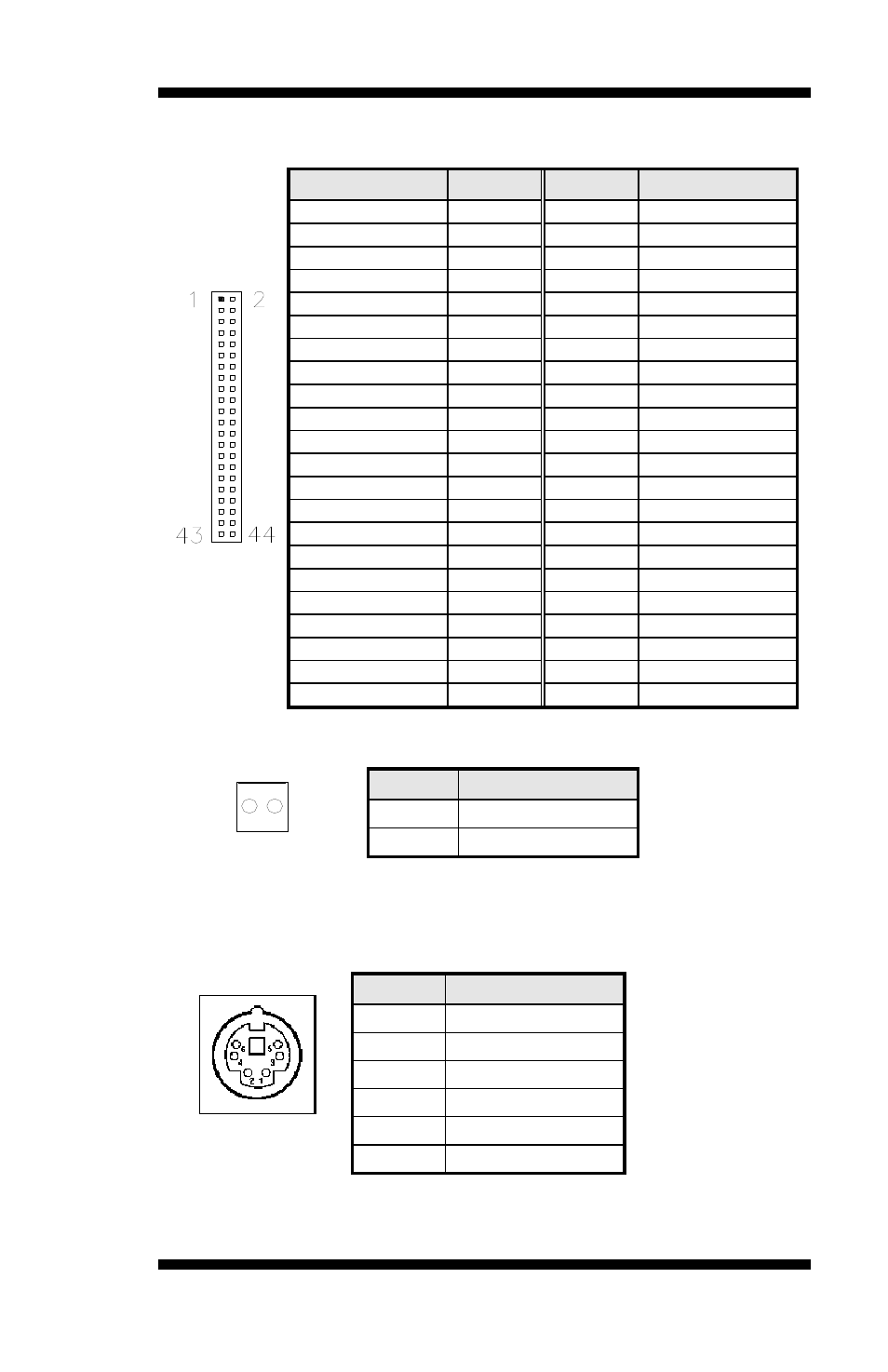

IDE1: IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect
Address 1 33 34 Cable Detect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
+5V 41 42 +5V
Ground 43 44 NC
J1: Board Input Power Connector
Pin # Signal Name
1 +12V~+19V
2 GND
IB882 User’s Manual 13
1
CN1: PCI-104 Connector
CN2: PS/2 Keyboard and PS/2 Mouse Connectors
CN3
Pin # Signal Name
1 Keyboard data
2 Mouse data
3 Ground
4 Vcc
5 Keyboard
Clock
6 Mouse Clock
