Daytime Running Lamps (DRL)

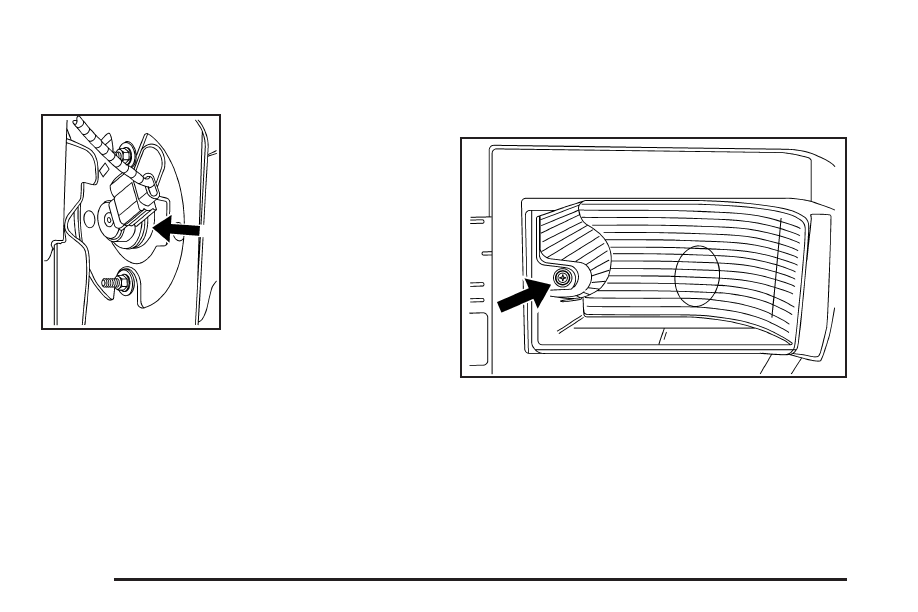

To replace a daytime running lamp bulb:
1. Locate the lamp
assembly behind the
front bumper through
the wheel opening.
2. Turn the bulb socket counterclockwise and remove
it from the lamp housing.
3. Remove the bulb from the bulb socket.
4. Install the new bulb into the bulb socket.
5. Reinstall the bulb socket into the lamp housing and
turn it clockwise until it locks.
Roof Marker Lamps
Corner Roof Marker Lamps
To replace one of these bulbs:
1. Remove the screw and lift off the lens.
2. Turn the bulb socket counterclockwise to remove it.
3. Remove the bulb.
4. Install a new bulb into the socket.
5. Reinstall the socket into the lens and turn it
clockwise to lock it into place.
6. Hook the side of the lens with the hook end into the
notch first and then tighten the screw.
5-50
