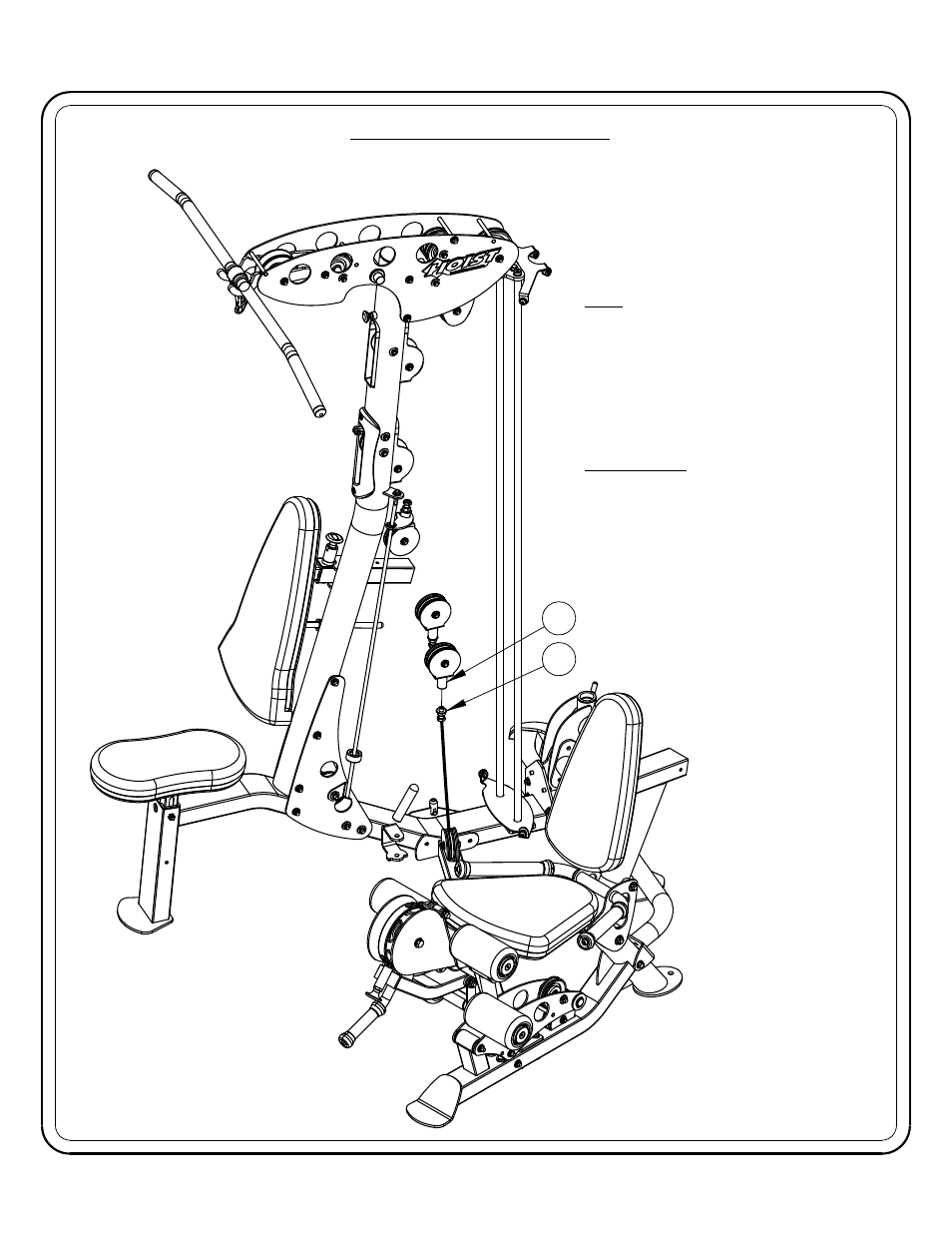

1

*

*

NOTE:
FOR EITHER V-PREMIER OR V-CORE, ANCHOR
CABLE (1) TO THE NEAREST FLOATING PULLEY,
WHICH WAS PREVIOUSLY ANCHORED TO
THE PLATE DISCARDED ON PAGE 11.

LOOSEN JAM NUT AND THREAD
BOLT IN/OUT TO GIVE THE CABLE
PROPER TENSION. RE-TIGHTEN
JAM NUT.

FINE TUNING:

WARNING - CABLE BOLT MUST BE THREADED
A MINIMUM OF 3/8" WITH JAM NUT TIGHTENED
SECURELY TO ENSURE PROPER CONNECTION.

FRAME ASSEMBLY

NOTE:
- WRENCH TIGHTEN HARDWARE.
- INCLUDED IN V-BASE UNIT.

OWNER'S MANUAL

VR-COMBO ASSEMBLY

PAGE 32
