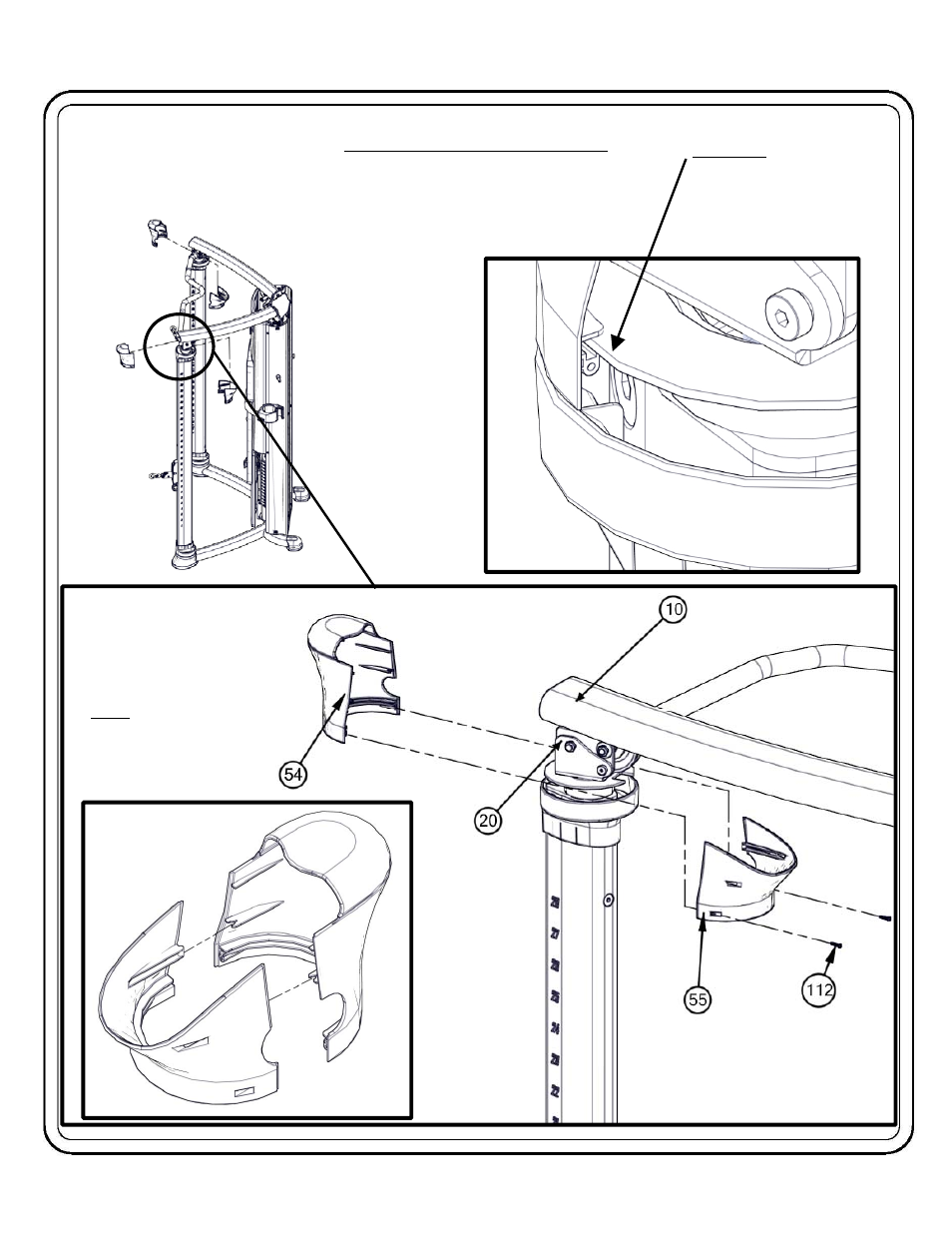

Mi6 ASSEMBLY
OWNER’S MANUAL
FRAME ASSEMBLY
NOTE:
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
- TIGHTEN SCREWS (112) WITH PHILLIPS HEAD
SCREWDRIVER
NOTE:
ENSURE THAT THE KNOBS
PINS ON THE BOOT SNAP
INTO THE HOLDERS ON THE
OPPOSITE BOOT, AS SHOWN
IMPORTANT
ENSURE THAT THE SPINDLE
PLATE SLIDES BETWEEN THE
TABS ON THE BOOT, AS
SHOWN
