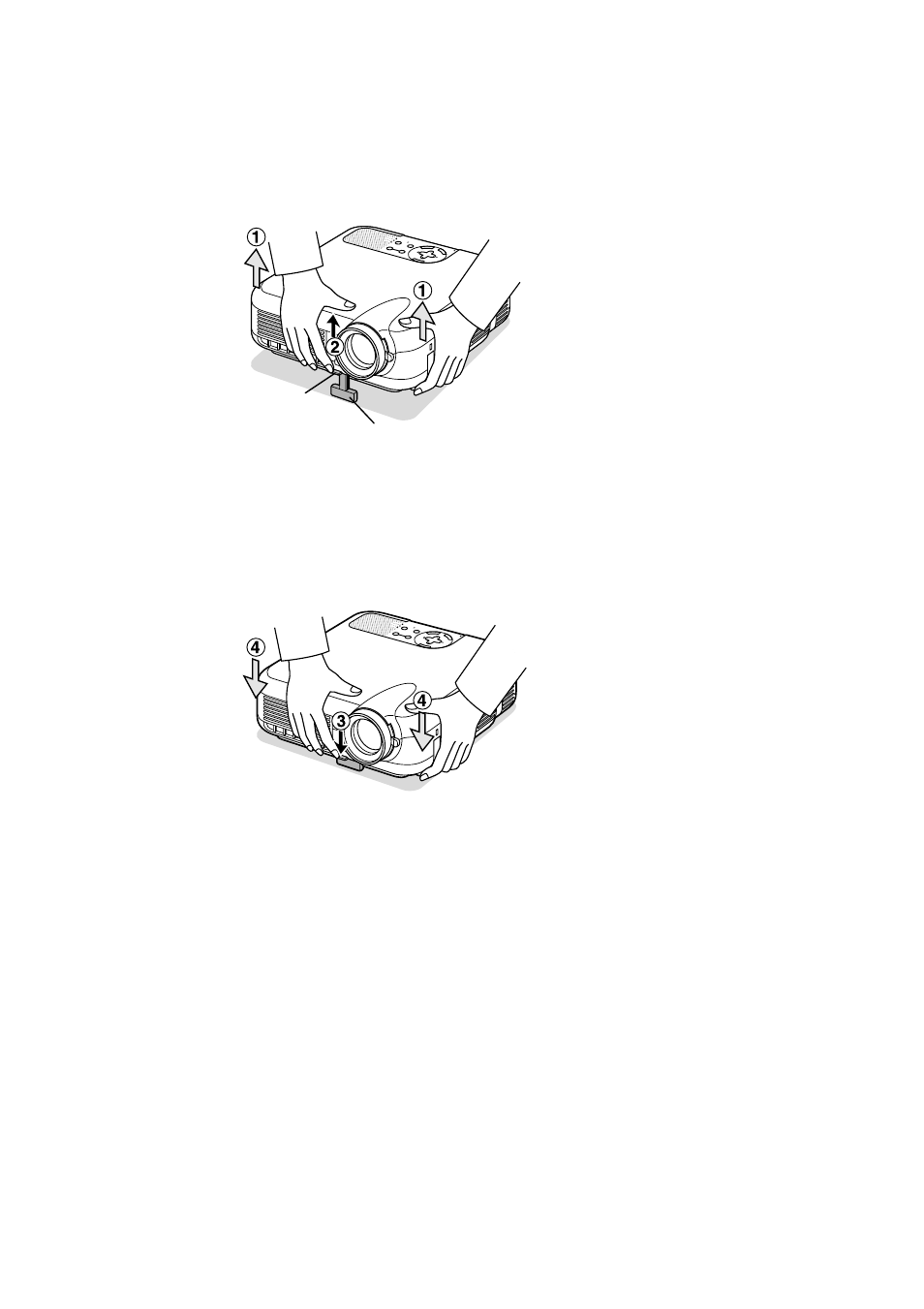

Adjust the Tilt Foot
q Lift the front edge of the projector.
w Push up the Adjustable Tilt Foot Lever on the front of the projector to
extend the adjustable tilt foot (maximum height).
e Push down the Adjustable Tilt Foot Lever.
r Lower the front of the projector to the desired height and release the
Adjustable Tilt Foot Lever to lock the Adjustable tilt foot. There is ap-
proximately 7 degrees of up and down adjustment for the front of the
projector.
PROJECTING AN IMAGE
Ͼ
Adjusting the Picture Size and Position
SE LE CT
C N A C EL
T ER N E
E M NU
SO UR CE AU TO A DJU ST
ON S TA ND B Y ST AT US PO WE R
LA MP
AL IG NM EN T
PC -CA RD
Adjustable Tilt
Foot Lever
Adjustable Tilt Foot
