TWEETER INSTALLATION
Review the Installation Precautions
section of this guide before proceeding.
Flush Mounting into
Mounted Panels
NNoottee:: Use either the standard mount
housing or the angled mount housing.
1. Determine the tweeter mounting
location, then route the wires from
the crossover to the tweeter location.
2. Mark the center point of the
tweeter location.
3. If using a hole saw, first drill a pilot
hole, then cut out the hole using a
standard 1-3/4" hole saw.
4. If not using a hole saw, use either
the cardboard packaging for the
tweeters or the surface mount trim
ring as a template to mark the
proper size hole. Cut out the hole.
5. Remove the tweeter grill, and the
remove the tweeter from the
surface mount housing using the
tweeter tool (turn CW). Insert the
proper length machine bolt through
the housing and connect to the
metal mounting bracket. (See
Figure 2.)
6. Connect the speaker wires
observing the correct polarity.
7. Press the metal bracket portion of
the assembly through the hole.
8. Screw the bolts in until the tweeter
housing is firmly mounted to the
panel.
9. Insert the tweeter into the housing
and use the tweeter tool and rotate
the tweeter CCW till locked. Attach
the tweeter grill.

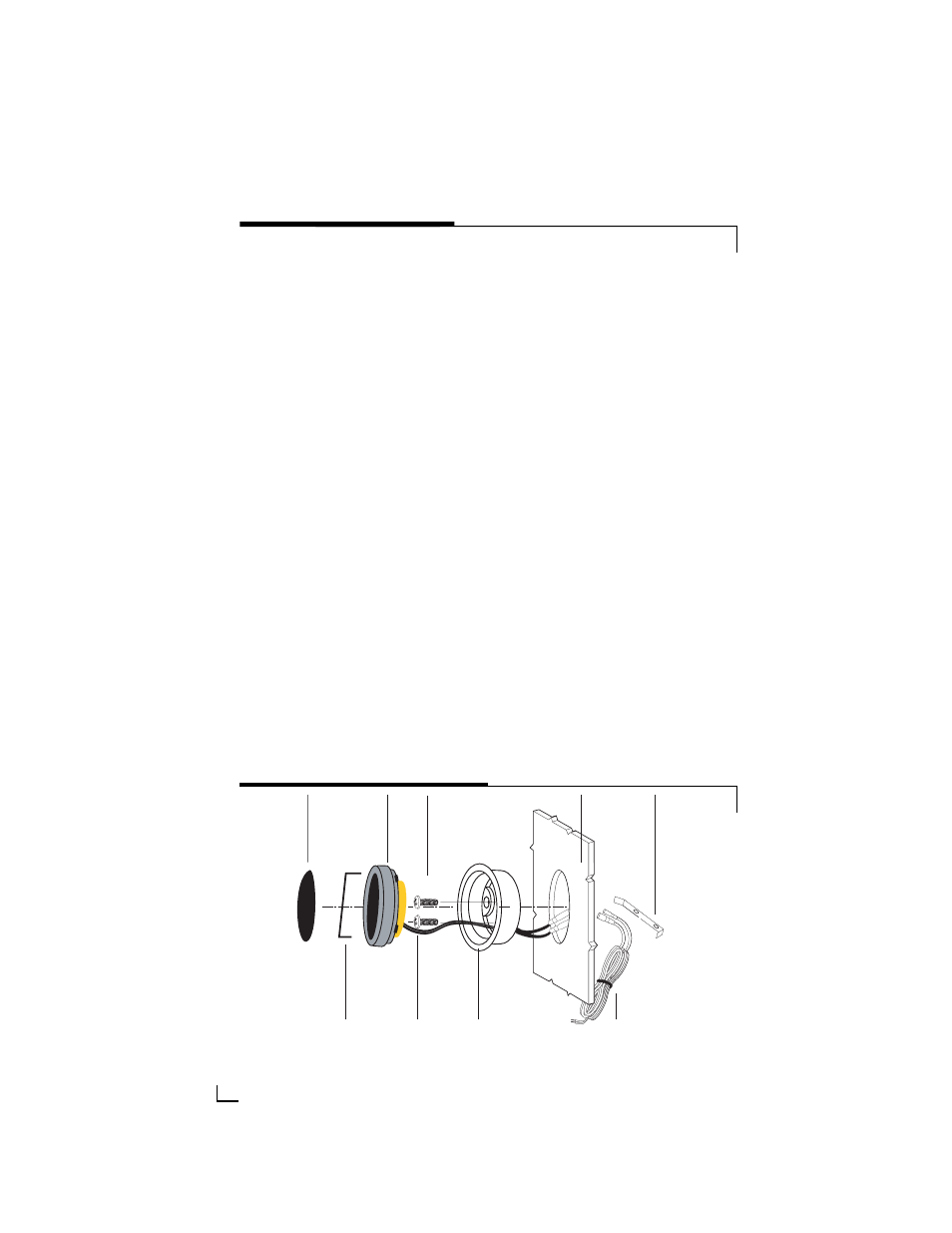

Tweeter Grill Bolts Panel Bracket
Tweeter
Wire Tweeter
Tool Flush Mount
Housing Wiring
FIGURE 2—FLUSH MOUNTING REMOVED PANELS
