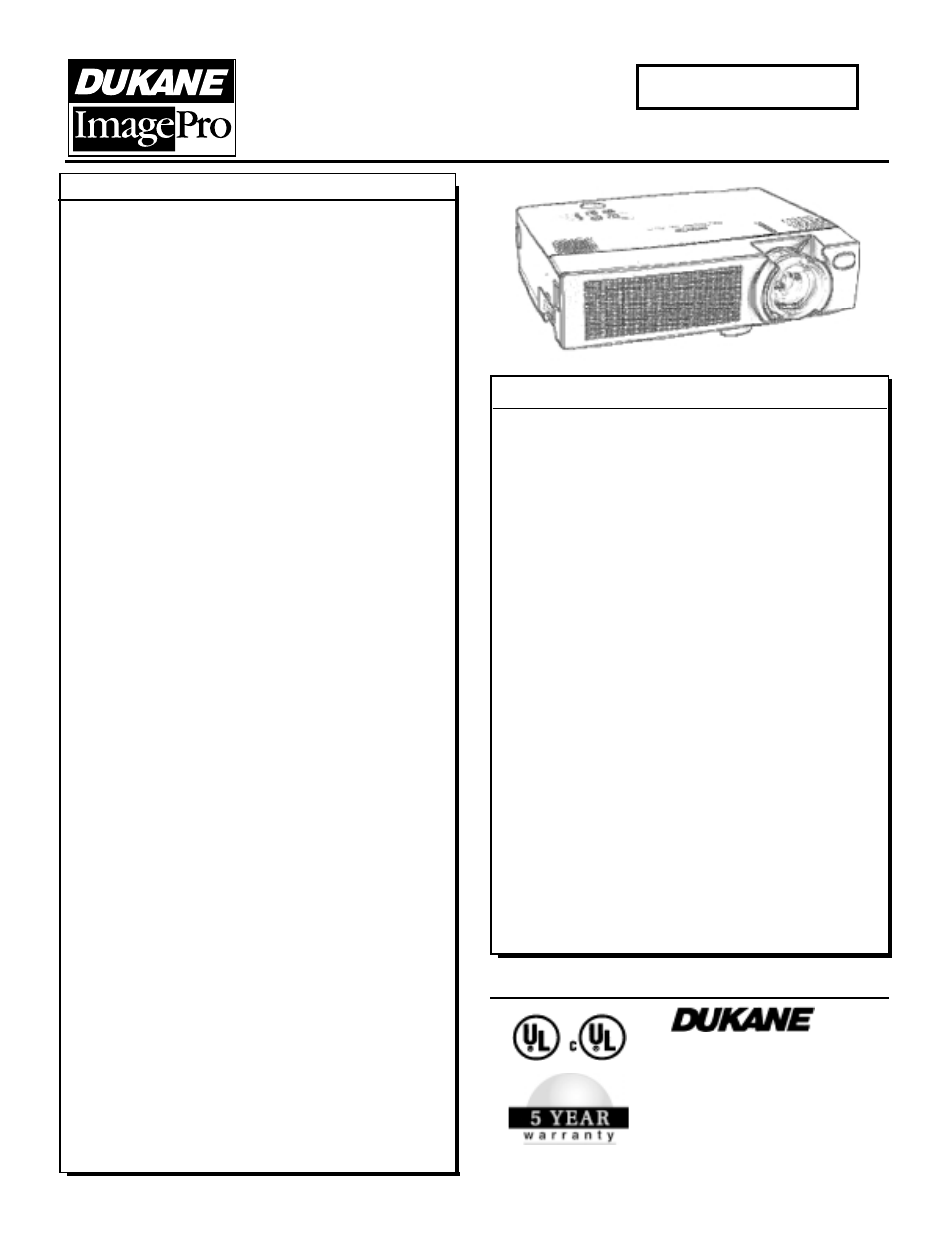

ImagePro 8801A

Data/Video Projector

Model 28A8801A

Form # 11546-A-03

Specifications

(Specifications are subject to change without notice)

Audio Visual Products

Dukane Corporation

Audio Visual Products Division

2900 Dukane Drive

St. Charles, IL 60174

Toll Free (800) 676-2485 or 2486

Fax (630) 584-5156

e-mail: [email protected]

Image Pro® is a registered trademark of DUK

DUK

DUKANE

ANE

ANE Corporation.

FFFFFAST F

AST F

AST FAX

The Dukane ImagePro 8801A™ is the ideal tool for the
presenter on the go. At only 7 lbs. The 8801A can be
easily transported. It provides an exceptional image that
is sufficiently bright to overcome ambient lighting in an
office, conference room, or school. It will display images
from a PC or MAC, and video from a VCR, DVD or other
source. The projector sets up in seconds and features
easy operation for the non-technical presenter.

Featuring true 1024 x 768 XGA resolution plus com-
pressed SXGA and 2200 lumens of brightness, the
ImagePro 8801A is engineered to reproduce data with
razor sharp accuracy and brilliant color imagery. With the
capability to show HDTV and digital TV formats, this unit
will meet all your future requirements.

In addition, the 8801A has a very quiet fan plus “whisper”
mode where the light output is reduced to 1700 lumens
and the operating unit can barely be heard. Other
features are the component video input, an FCC Class B
home environment listing, digital zoom, freeze for video,
custom start-up screen, a Kensington slot for security,
plus a super easy to use control format. The remote
control has the mouse function, plus a laser pointer.
Everything is arranged for your convenience and speed in
set-up and operation.

This projector is backed by Dukane’s legendary
service and a industry leading FIVE YEAR limited
warranty, plus a two year “Peace of Mind” program which
is the finest in the industry.

Performance and Portability

LCD Type

0.9” polysilicon active-
matrix TFT x 3

Brightness

2200 ANSI Lumens
(1,700 whisper mode)

Resolution

1024 x 768 pixels (H X V), XGA

Contrast

400:1

Color Levels

16.7 million, 24 bit

Keystone Correction

Digital, selectable, H&V

Scanning Frequency

fh 15-80kHz fv 50-120hz

Lens

Manual Zoom 1:1.3 (F1.7-2.1)

Computer

VGA, SVGA, XGA/SXGA

Compatibility

(Compressed), Mac,
Mac 13” and Mac 16”

Projection Configuration

Front/rear/ceiling

Aspect Ratio

4:3, 16:9 Selectable

Image Control

Freeze function, Electronic
Zoom and pan

Start-up Screen

User Programmable

Correction Control

Gamma and Color

Video Compatibility

NTSC, NTSC 4.43, PAL,
M-PAL, N-PAL, PAL60,
SECAM, S-Video, HDTV,
480i, 575i, 480p, 1080i, 720p

Lamp

200W UHB

Lamp Life

2000 hours (typical)

Audio

Speakers, 1W x 2 Stereo

Throw Distance

62” - 400”

Screen Size

40” - 200” diagonal

Inputs

(1) Min DIN 4-pin S-Video
(1) RCA composite video
(1) RCA x 3 Component Video
(2) Computer; D-sub 15 pin
(1) RCA jack, audio, video
(2) mini jack audio, PC

Outputs

(1) D-sub 15-pin, monitor
(1) Audio, Stereo mini jack
(1) Mouse control via
USB jack (b-type)

Control

RS-232C (1) D-sub, 15 pin

Security

Kensington slot

Noise Level

37dB,ultra quiet.
34dB, Whisper Mode

Power

AC90-132 V / AC220-240V,
50/60 Hz, 310W

Size

(WxHxD)

11.7" x 3.0" x 9.0"

Weight

7 lbs

Shipping Weight

16 lbs.

Carton Size

15” x 13” x 10.5”

Accessories Included

Remote control with laser
pointer, Batteries, Power cord
(U.S., UK, Euro), Video
cable, RGB cable, mouse
cable (ps/2) operator’s
manual, handle strip and
carry case.

Safety

UL/C-UL, FCC Class B

Optional Accessories

Lamps 456-227; Rolling
Briefcase; 185-406

Five (5) year Limited Warranty on Parts and Labor in North
America, lamp excluded (for other locations,local warranties
apply.) Includes Dukane’s FREE 24 month Peace-of-Mind
Loaner Program.
