FOLD PLATE ADJUSTMENT
1. To adjust the first fold remove the top cover to access the top fold plate. If the first fold is too long
loosen the two thumbscrews on the upper fold plate and slide the bar down. If the fold is too short
loosen the thumbscrews and slide the bar up.
NOTE: The bar should be on the same marks on each side.
2. To adjust the second fold remove the lower fold plate. If the second fold is too long loosen the two
thumbscrews and slide the bar up. If the fold is too short loosen the thumbscrews and slide the bar
down.
NOTE: The bar should be on the same marks on each side.
3. For quick setup of “C”, “Z” , Uneven “C” and “V” folds refer to the blue lines on the fold plate.
4. To reinstall the upper fold plate, slide the plate (with thumbscrews facing up and the throat toward
the inside of the machine) until the grooves on the underside line up with the four pins on the machine
(figure 4a & 4b).
3

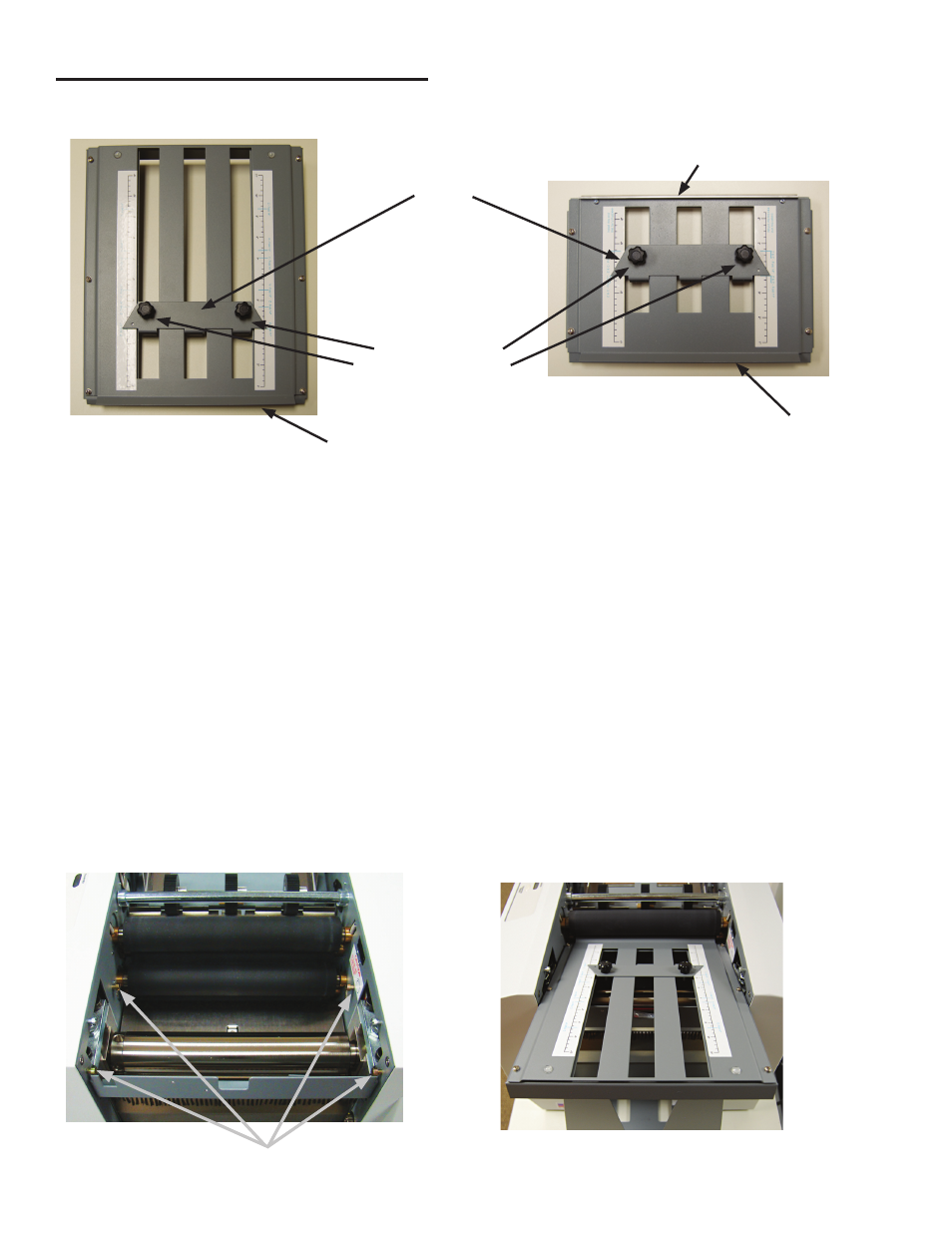

Thumbscrews
Upper Fold Plate Lower Fold Plate
Center
Bar
Throat
Throat
Figure 3a Figure 3b
Deflector (for Half Folds)
Figure 4a Figure 4b, correctly installed
Fold Plate Pins
