Resin Aviator ™
Installation, Operation and Maintenance Instructions
Accord Controls 765 South 100 East 1978 Foreman Dr.
A Unit of Flowserve Corporation Provo, Utah 84606 Cookville, TN 38501
www.accord-controls.com Phone: 801 373 4576 Phone: 931 432 4021
CONTROLS
Lubrication
All Resin Aviator ™ spool valves are pre-lubricated and will
operate dry (with no additional lubrication). The use of
lubricated air will not interfere with the Aviator’s
functioning. If air lubrication is used, the oils listed below
are popular, easily obtainable fluids that are recommended
for use with the Resin Aviator ™ Spool valve:
Gulf Harmony 47, Mobil DTE Medium, Shell Tellus 29,
Texaco Rondo B, Sohivis 47 and Sunnis 921. Many other
lubricants are acceptable providing they do not contain
detergents that will attack Buna N or Viton Seals.

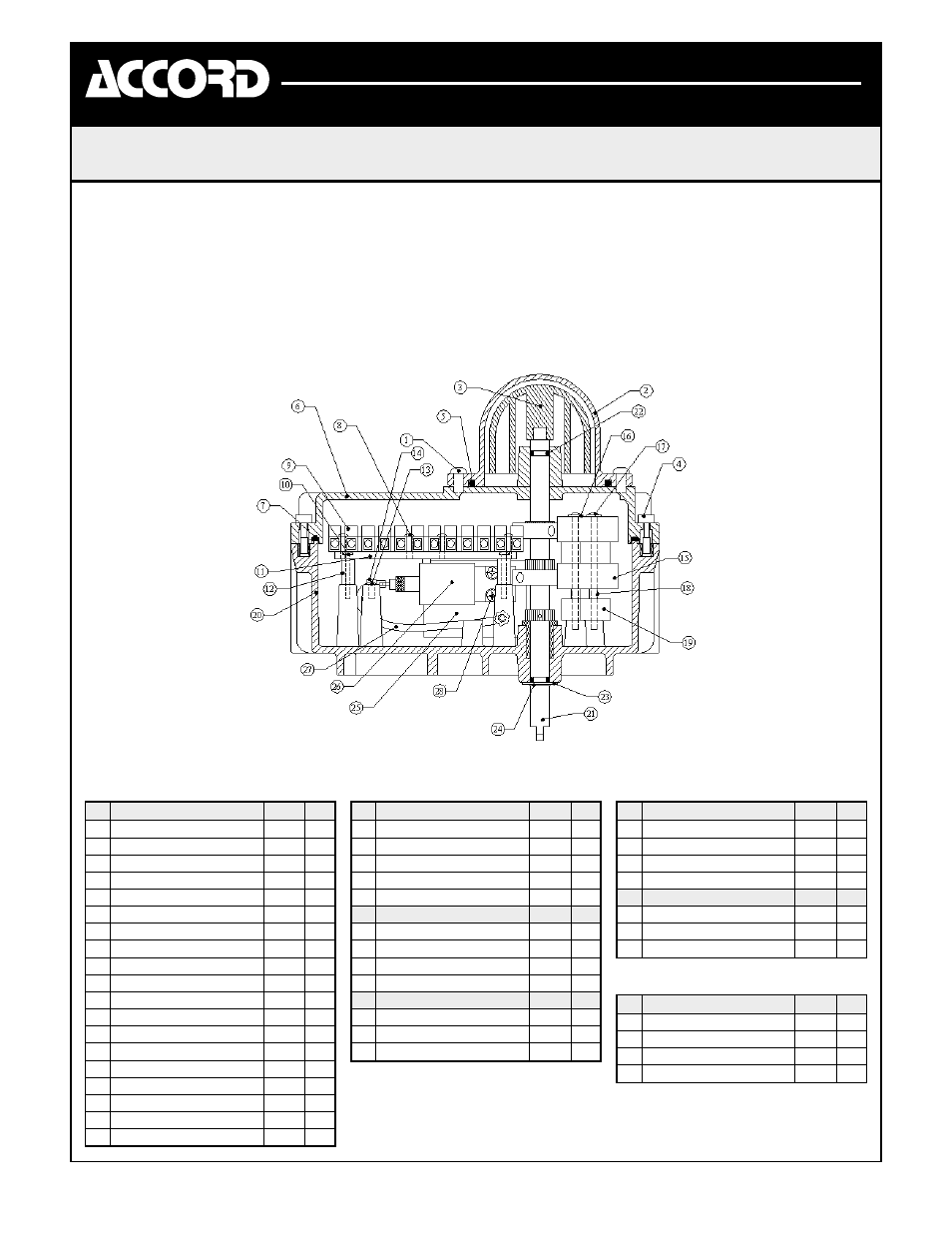

Part Numbers
How to Specify
NO. ITEM P/N QTY
1 10-24 x 1/2 Phillips Head Screw X00676 4
2 Ultra Dome X00662 1
3 Rotor X00663 1
4 10-24 Capture Screw X00360 6
5 O-ring X00677 1
6 Cover XM0310 1
7 Gasket X00981 1
8 4-40 x 1/2 Phillips Head Screw X00318 4
9 Terminal Block, 12 Position 103683 1
10 4-40 x 1/2 Phillips Head Screw 100518 2
11 Bracket, Terminal Block XM0063 1
12 Spacer, 0.68" High 104158 2
13 4-40 x 3/16 Ground Screw 104147 1
14 8-32 Ground Cup Washer 105626 1
20 Base XM0311 1
21 Shaft Assembly Varies 1
22 O-ring 103603 1
23 Washer X00361 1
24 Snap Ring 101810 1
Switch Options
NO. ITEM P/N QTY
15 Proximity Switch Varies 2
16 4-40 Washer X00425 2
17 4-40 x 2.25 Phillips Head Screw 106130 2
18 Spacer, 0.2" High 105679 2
19 Spacer X00691 2
SPDT Mechanical Switch Varies 2
4-40 x 1.125 Phillips Head Screw 100159 2
Insulator 103675 2
Spacer, 0.2" High 105679 2
DPDT Mechanical Switch 103628 2
4-40 x 1.125 Phillips Head Screw 100159 2
Insulator 103675 2
Solenoid Options
NO. ITEM P/N QTY
25 Manifold, 2 Watt Coil Varies 1
26 2 Watt Coil Varies 1
27 1/8 Tubing X00837 1
28 4-40 x 1 Phillips Head Screw 100158 2
Manifold, 0.67 Watt Coil Varies 1
0.67 Watt Coil Varies 1
1/8 Tubing X00837 1
Spool Valve Options (Not Shown)
NO. ITEM P/N QTY
Spool Valve Varies 1
O-ring X01039 Varies
10-32 x 1.5 Socket Head Screw X00784 3
Muffler Varies 2
