ACCESS I and 39 Actuator

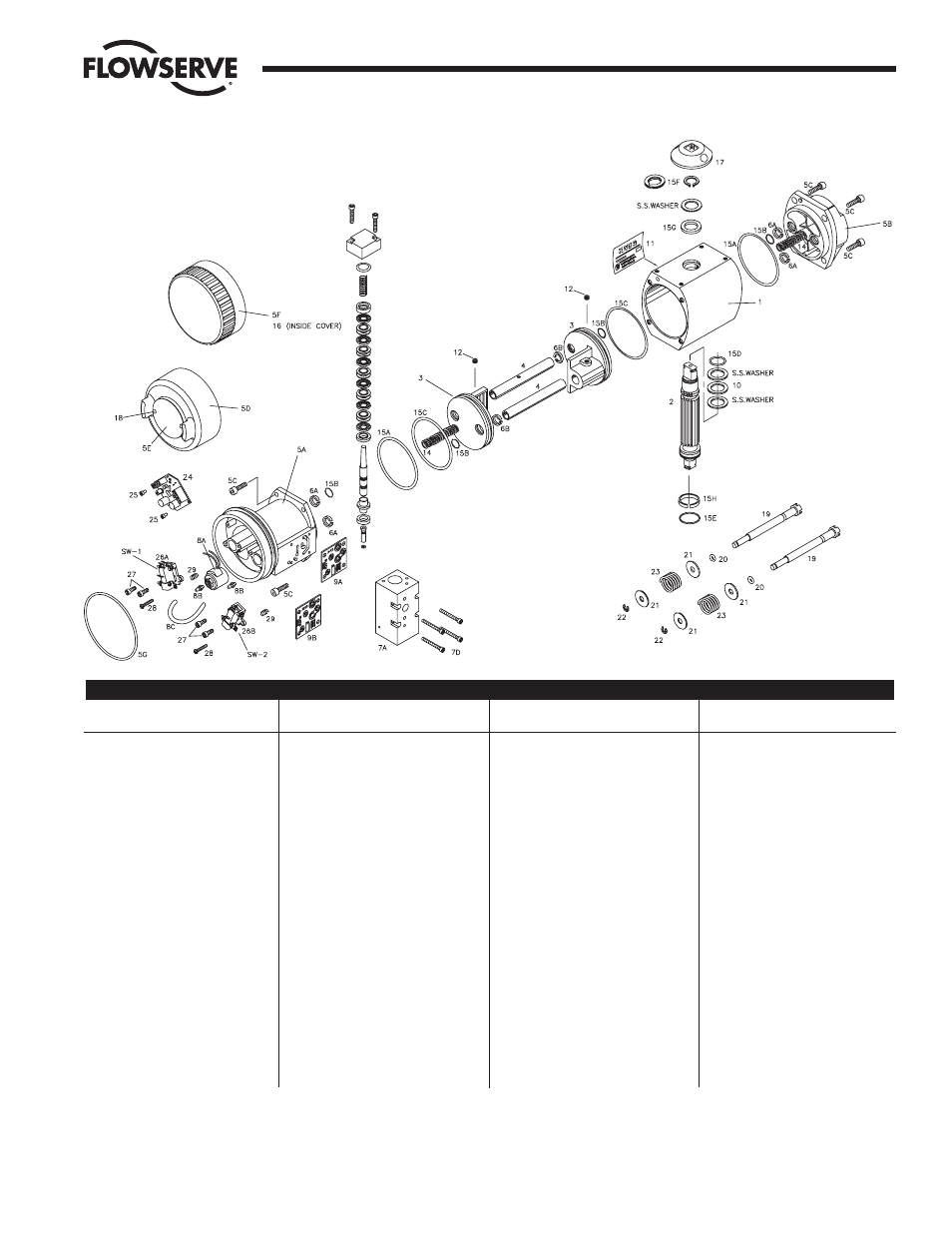

Exploded View
1 1 Actuator Body
2 1 Shaft (10-2039)
3 2 Pistons
4 2 Guide Rods
5A 1 Access End Cap
5B 1 End Cap
5C 8 End Cap Screws
(Metric)
5D 1 Cover "Z"
5E 1 Caution Nameplate "Z"
5F 1 Cover "W"
5G 1 O-Ring – Cover
6A 4 End Cap Bearing
(Split-Ring Style)
6B 2 Piston Bearing
(Split-Ring Style)
7A 1 Control Block Assembly
7B - Not Used
7C - Not Used
7D 4 Control Block Bolts
8A 1 Solenoid Assembly
8B 2 Solenoid Exhaust
Port Fittings
8C 1 Solenoid Exhaust Tubing
9A 1 Gasket – Control Block
(Double-Acting) (Fig. 2)
9B 1 Gasket – Control Block
(Spring-Return) (Fig. 2)
10 1 Thrust bearing
11 1 Nameplate
12 2 Piston Set Screws
(if any)
13 1 Conduit Plug –
Not Shown
14 Varies Springs – See Table
on Page 11
15A 2 End Cap O-Rings
15B 4 Guide Rod O-Rings
15C 2 Piston O-Rings
15D 1 Top Shaft O-Ring
15E 1 Bottom Shaft O-Ring
15F 1 Shaft Clip
15G 1 Top Pinion Bearing
15H 1 Bottom Pinion Bearing
16 1 Wiring Diagram –
Not Shown
17 1 Position Indicator
18 2 Drive Screw
19 2 Probes
20 2 O-Rings – Probe
21 4 Washers – Probe
22 2 Retaining Clips – Probe
23 2 Spring – Probe
24 1 Printed Circuit Board
25 2 Printed Circuit
Board Mounting Screws
26A 1 Limit Switch
(proximity sensor)
Assembly – left
26B 1 Limit Switch
(proximity sensor)
Assembly – right
27 4 Mounting Screws –
Limit Switch
(proximity sensor)
28 2 Switch (sensor)
Adjustment Screw
29 2 Switch (sensor)
Adjustment Spring
Item Qty. Description Item Qty. Description Item Qty. Description Item Qty. Description
Parts List
To order proper parts, please specify the actuator size, model, and revision number. Use the standard nomenclature listed above.
The rebuilding kits include Items 15A through 15H, 6A and 6B, 10, and S.S. washers. Color of some replacement parts, such as bearings, may
vary from the parts removed.
