INSTALLATION
Continued
INSTALLATION
Installing Logs (Cont.)

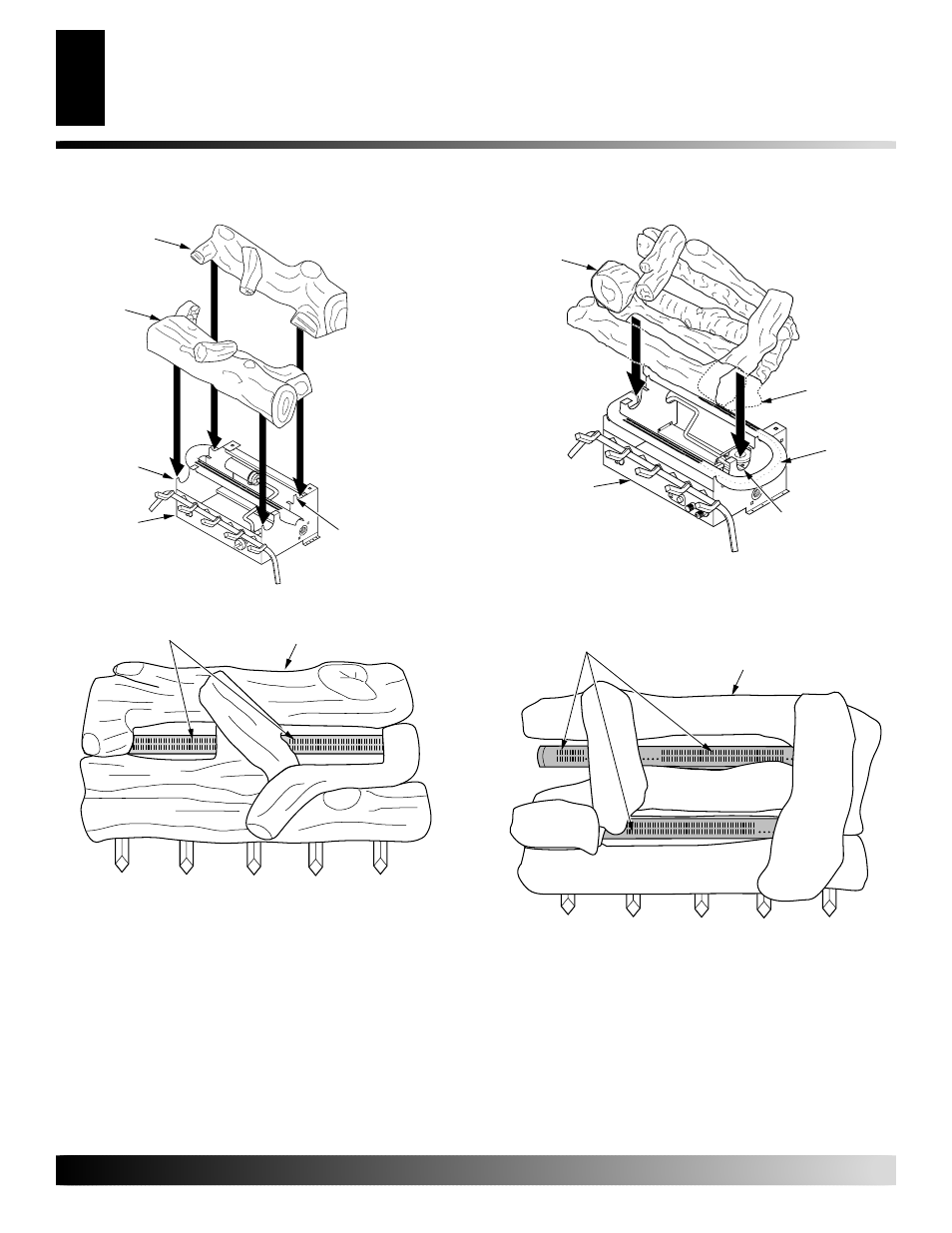

Figure 22 - Installing Vintage Oak Two-Piece Log Set
Figure 23 - Installing Vintage Oak Two-Piece Log Set (Top View)
Two Piece
Log Set
Burner Ports
Figure 25 - Installing Golden Oak Log Sets (Top View)
Figure 24 - Installing Golden Oak One-Piece Log Set
Log #2
Chassis
Rear Post
Middle Section
at Bottom of
Log Set
Five Piece
Log Set
Chassis
Burner
“U”-shaped Cutout
in Chassis
Log Set
Burner Ports
Golden Oak One-Piece Log Set
1. Place one-piece log set on grate to fit as illustrated in Figure
24. Make sure middle section at bottom of log set is seated
into “U”-shaped cutouts in center of chassis (see Figure 24).
IMPORTANT: Make sure log does not cover any burner ports
(see Figure 25).
2. Place lava rock around base of heater if desired.
Log #1
Front Post
