Flowserve Valtek VL Spring Cylinder Linear Actuators - Manual (Page 7)

Valtek Spring Cylinder Linear Actuators FCD VLENIM002-00-AQ 10/14
7
flowserve.com
Piston O-ring
(Item No. 271 )
Spring
(Item No. 229 )
Actuator Stem Lock Nut
(Item No. 348)
Spring Button
(Item No. 227 )
Stem Spacer
(Item No. 228 )
Piston
(Item No. 225 )
E0170
Actuator Stem Lock Nut
(Item No. 348)
Lifting Ring
(Item No. 209 )
Adjusting Scre w
(Item No. 210 )
Piston O-ring
(Item No. 271 )
Piston Stem O-ring
(Item No. 272 )
Stem Spacer
Spring
(Item No. 229 )
Upper Stem Bushin g
(Item No. 253 )
Actuator Stem
(Item No. 211 )
Actuator Stem O-ring
(Item No. 275 )
Lower Stem Bushin g
(Item No. 254 )
Yoke O-ring
(Item No. 274 )
Yoke
(Item No. 201 )
Serial Plate
(Item No. 252 )
Stem Clamp
(Item No. 249)
Stem Clamp Bol t
(Item No. 240)
Cylinder Retaining Rin g
(Item No. 256 )
Stem Bellows
(Item No. 247)
Stem Clamp Nut
(Item No. 345)
Stroke Plate
(Item No. 213 )
Adjusting Screw Gasket
(Item No. 248)
Cylinder
(Item No. 202 )
Piston Stem O-ring
(Item No. 272 )
Piston
(Item No. 225 )
Spring Button
(Item No. 227 )
NOTE: Item numbers correspond directly to actuator’s bill of material. Refer to it for specific part numbers.

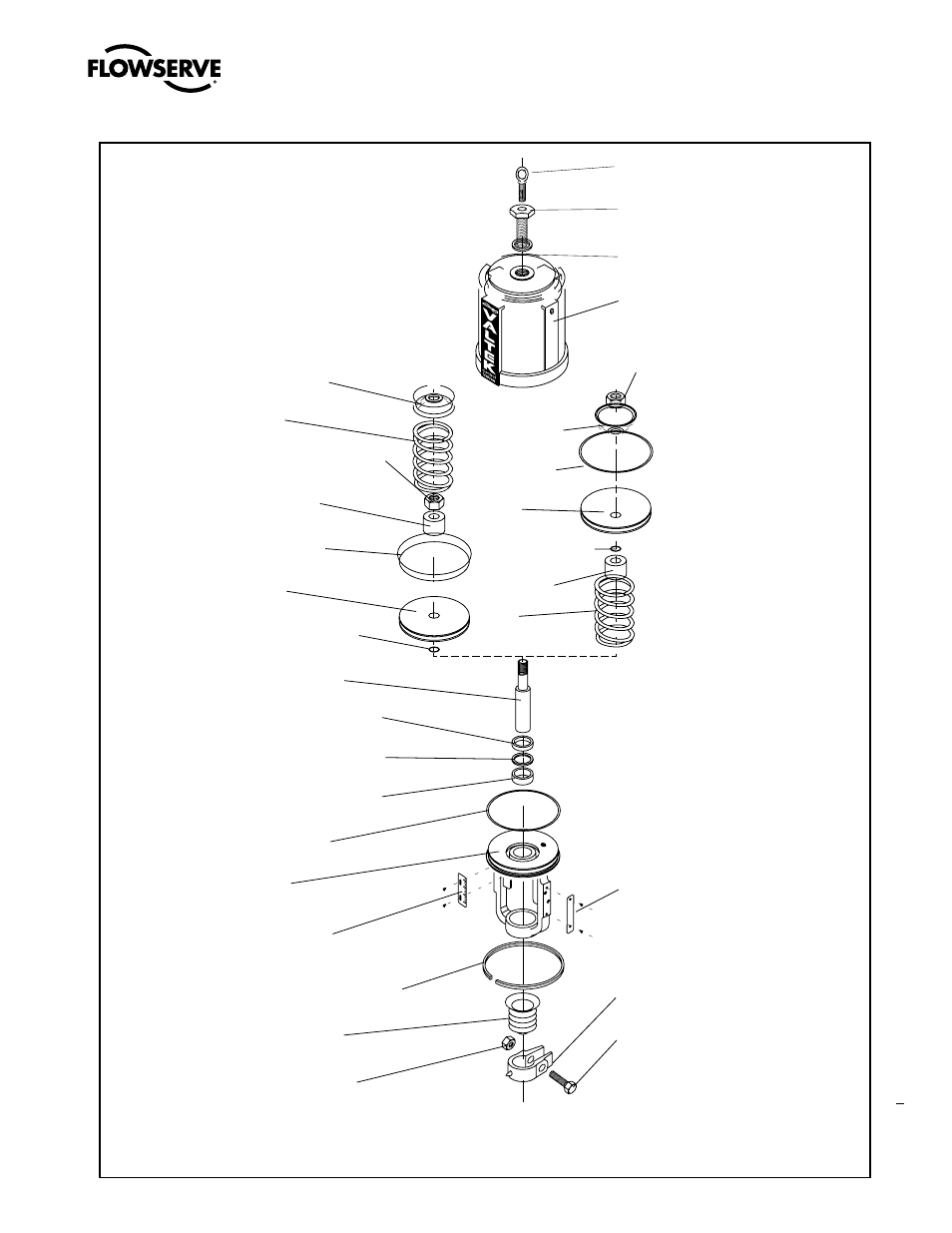

Figure 5: Exploded View, Spring Cylinder Actuator
