Dimensional Data for P-200 Seal, inch
3

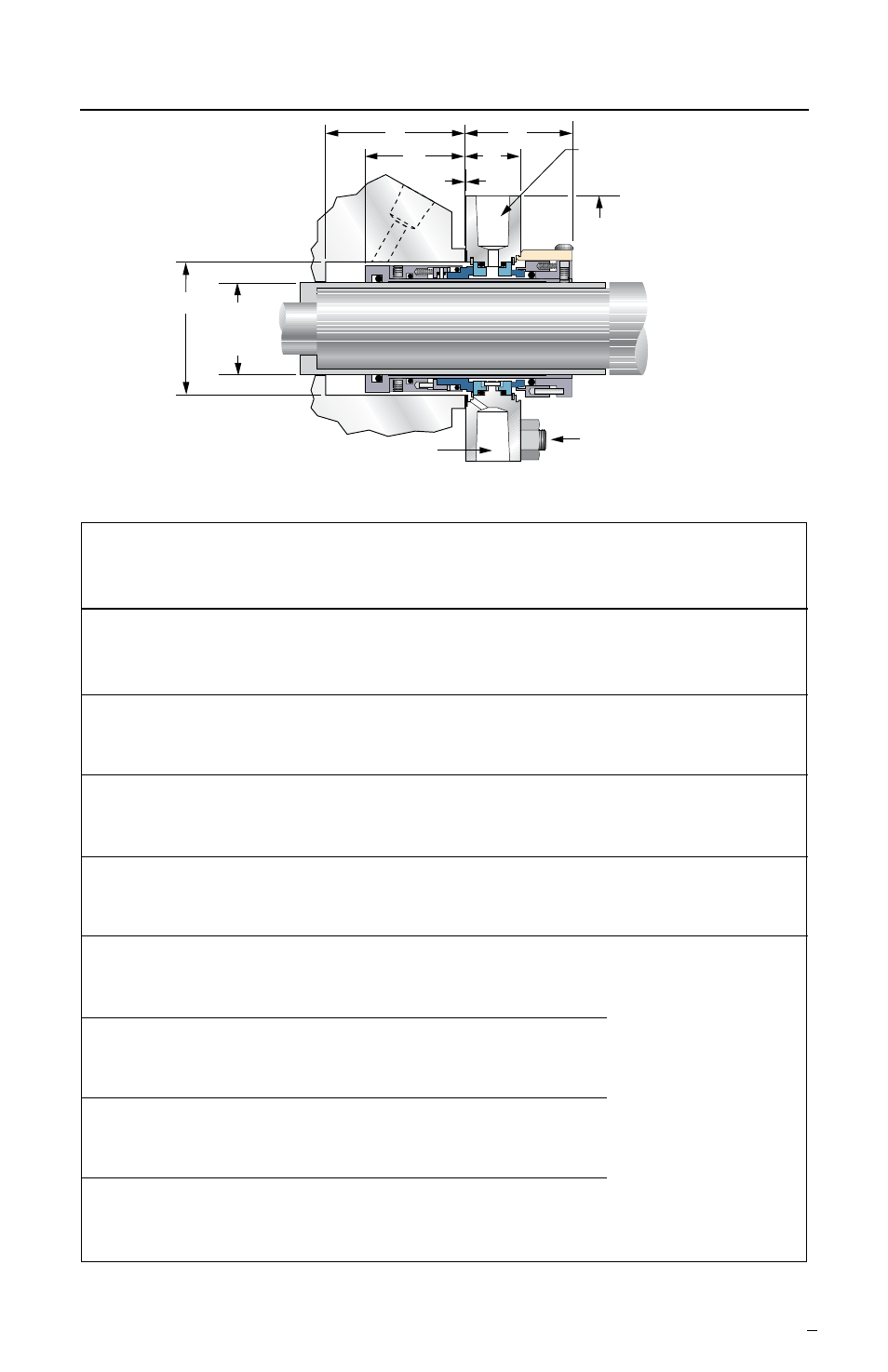

P-200 Dimensional Data Figure 2
* This seal size uses the N-CBR inner seal rotary unit.
† Preferred design for these shaft sizes. Use whenever possible.
.03
A
Shaft & Seal
Size
C
B
K
ø
D F
E
G NPT marked "Flush" should be
plugged when not used for flushing
4 H ø studs
equally
spaced on J
BC
2 G NPT for
sealing fluid inlet
and outlet.
1.000 1.750 1.875 1.78 1.69 2.00 1.02 0.375 0.375 2.75 3.75
1.125 1.750 2.000 1.78 1.69 2.00 1.02 0.375 0.500 3.00 3.88
1.250 2.000 2.125 1.97 1.88 2.00 1.02 0.375 0.500 3.12 4.25
1.375 2.000 2.250 1.97 1.88 2.00 1.02 0.375 0.375 3.25 4.25
1.500 2.250 2.500 1.97 1.88 2.00 1.02 0.375 0.375 3.75 4.75
1.625 2.375 2.625 1.97 1.88 2.00 1.02 0.375 0.500 3.75 4.75
1.750 2.500 2.750 1.97 1.88 2.00 1.02 0.375 0.500 3.75 5.00
1.875 2.625 2.875 1.97 1.88 2.00 1.02 0.375 0.500 3.88 5.00
2.000 2.750 3.000 1.97 1.88 2.00 1.02 0.375 0.625 4.12 5.12
2.125 2.875 3.250 1.97 1.88 2.00 1.02 0.375 0.625 4.38 6.00
2.250 3.000 3.375 1.97 1.88 2.00 1.02 0.375 0.625 4.62 6.50
2.375 3.250 3.625 2.16 2.06 2.09 1.11 0.375 0.625 5.00 6.38
2.500 3.375 3.750 2.16 2.06 2.09 1.11 0.375 0.625 5.00 6.62
2.625 3.500 3.875 2.16 2.06 2.09 1.11 0.375 0.750 5.75 7.25
2.750 3.750 4.062 2.16 2.06 2.62 1.58 0.500
2.875 3.875 4.187 2.16 2.06 2.62 1.58 0.500
3.000 4.000 4.312 2.16 2.06 2.62 1.58 0.500
3.125 4.250 4.562 2.16 2.06 2.62 1.58 0.500
3.250 4.375 4.687 2.28 2.19 2.75 1.71 0.500
3.375 4.500 4.812 2.28 2.19 2.75 1.71 0.500
3.500 4.625 4.937 2.28 2.19 2.75 1.71 0.500
3.625 4.750 5.062 2.28 2.19 2.75 1.71 0.500
3.750 4.875 5.187 2.28 2.19 2.75 1.71 0.500
3.875 5.000 5.312 2.28 2.19 2.75 1.71 0.500
A B B C D E F G H J K
Shaft & Box Bore Box Depth Seal Seal Gland NPT Bolt Dia. Bolt Circle Gland OD
Seal Size (Min) (Max) (Min) Depth Extension Thickness (Max) (Max) (Min)
The bolt diameter, bolt
circle and gland OD for
shaft and seal sizes
2.750 inches through
3.875 inches will be
determined by equipment
requirements.
