NOTE: Take care not to dimple the vehicle exterior or
puncture the roof sheet metal when tightening
the screws.
The included mini trim ring adapter is for
installing the OHC100 to a flat headliner surface
that needs minimum space. It is also designed to
adapt the OHC100 to fit into vehicle-specific
overhead consoles available through aftermarket
mobile video distributors.
When using the OHC100 with an aftermarket
overhead console with inadequate mounting
depth, the 1" Mini trim ring adapter can be
modified by cutting out the mounting bracket
portion of the spacer and using it as a universal
1" mini trim ring adapter. this gives the installer
an additional depth of 1".
HEADLINER INSTALLATIONS
Remove the adapter portion of the mini trim
ring where indicated by the dotted line in the
diagram below.
1. Install the mounting posts.
2. Screw in the supplied metal plate to the
mounting posts.
3. Attach the 1” mini trim ring adapter to the
overhead console.
4. The OHC100 can now be installed following
the Installation Procedure of this guide.
AFTER THE INSTALLATION
1. After completion of the video source
installation, reconnect the battery or
replace any fuses that were removed prior
to installation.
2. Test the operation of the monitor door,
dome lights, and remote control operation
of the video source.
3. Remove any marks or dirt remaining on
vehicle interior using a quality fabric
cleaner and return the vehicle to the cus-
tomer.

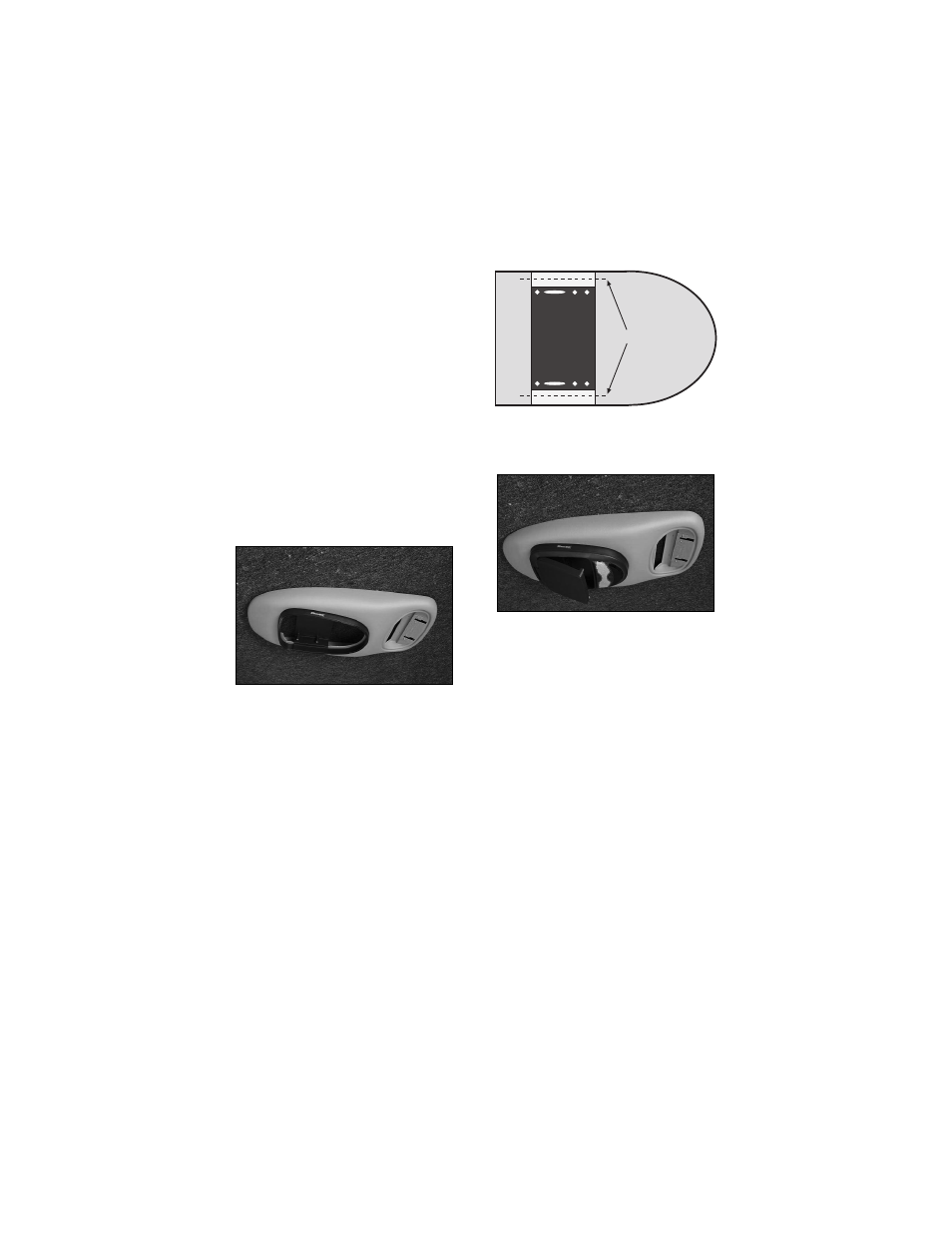

Cut along dotted lines
