Description:
The HDS 7200 rectifier is a three phase, hot-pluggable, fan-cooled rectifier. The constant output power rectifier
supplies the specified power over the full output voltage range. The rectifier employs the state-of-the-art technology
and provides excellent performance, wide input voltage range, and low THD. The HDS-7200 Rectifier is the
cornerstone of the HDS-7200 Power System that and generate up to 10,000 Amps.
Features
• 3 Phase, 380/480 V
rms
input
• Efficiency 90 %
• Low THD <5%
• Hot swappable, no system shutdown for maintenance
• Wide input voltage range: 264 - 530 V
rms
• Power factor correction (0.99)
• Constant output power
• User friendly LCD Display
•
Intelligent micro-processor controlled
Specification
General
Product name
ESR 48 V - 7200 W - A
Efficiency, 380/480Vrms 90 %
Safety EN 60950
IEC 60950
UL 60950
CAN/CSA-C22.2 No. 60950
EMI, radiated compliant with FCC Part 15 class B
EN 55022 class B
Cooling Fan cooled
Input
Voltage range
264 ... 530 V
rms
Current maximum 20 A
rms
at 264V
Power factor > 0.99
THD < 5 %
EMI, conducted compliant with FCC Part 15 class B
EN 55022 class B
Output
Voltage, nominal
54 V
dc
Voltage adjust range 40 ... 59.5 V
dc
Load sharing < ± 2%
Power limit 7200W, fixed
Mechanics
Width, overall
19” / 483 mm
Depth, overall 18.9” / 480 mm
Height, overall 5.2” / 131 mm
Weight 48.8 lb / 22 kg
Environment
Operating temperature
- 5 ... + 55 °C
Relative humidity 95 % max, non condensing
Altitude - 500 ~ 10000 feet
*Specifications are subject to change

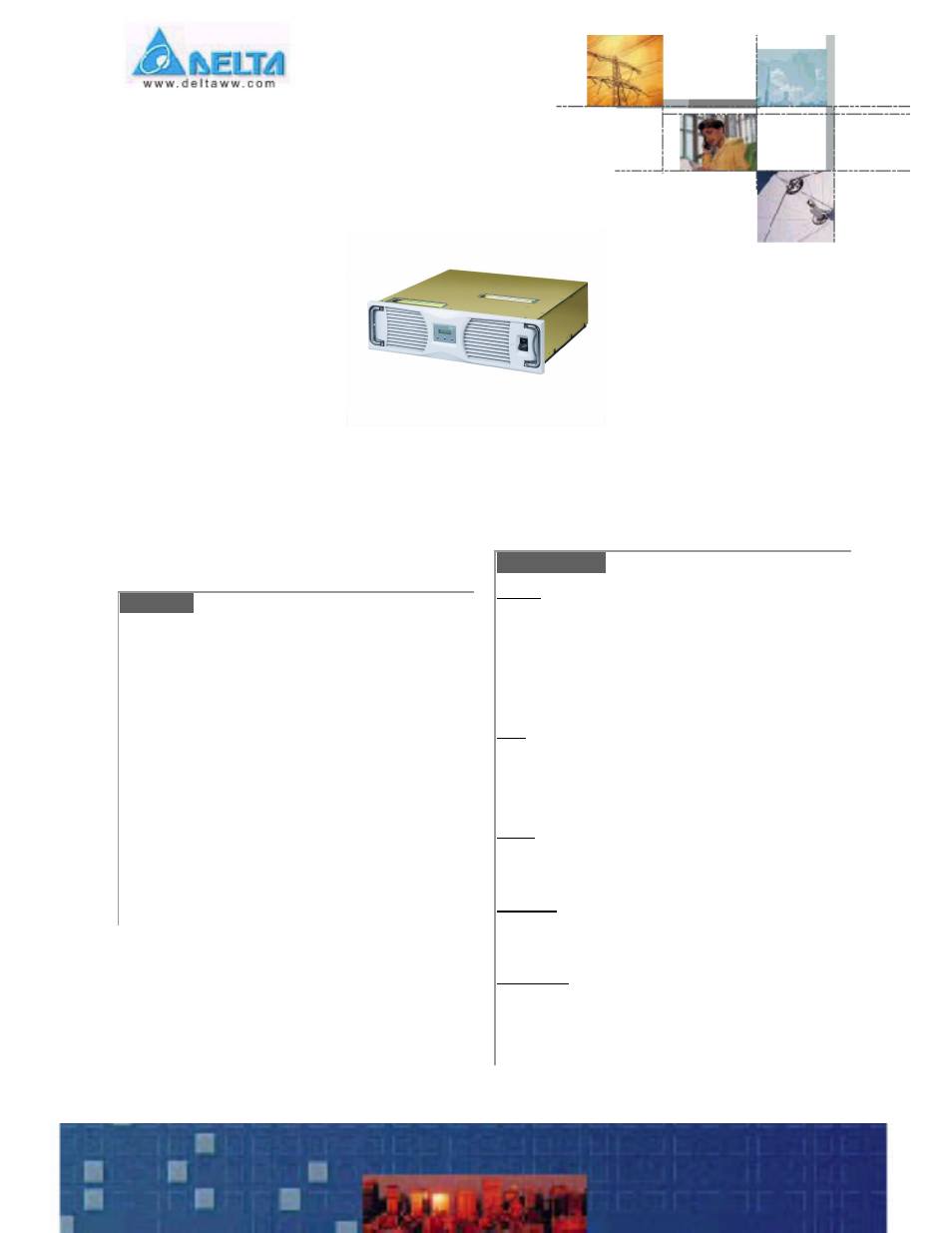

The HDS 7200-48V Rectifier
