9
English
WARNING: RISK OF ELEC TRI CAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spray di rect ed at elec tri cal
outlets or switch es, or ob jects
con nect ed to an elec tri cal
circuit, could re sult in a
fatal electrical shock.
• Unplug any elec tri cal ly
op er at ed product before
attempting to clean it. Direct
spray away from electric
out lets and switches.
WARNING: RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Serious injury can result
from attempting to lift too
heavy an object.
• The pressure washer is too
heavy to be lifted by one
person. Obtain assistance
from others before lifting.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
INSTALLATION

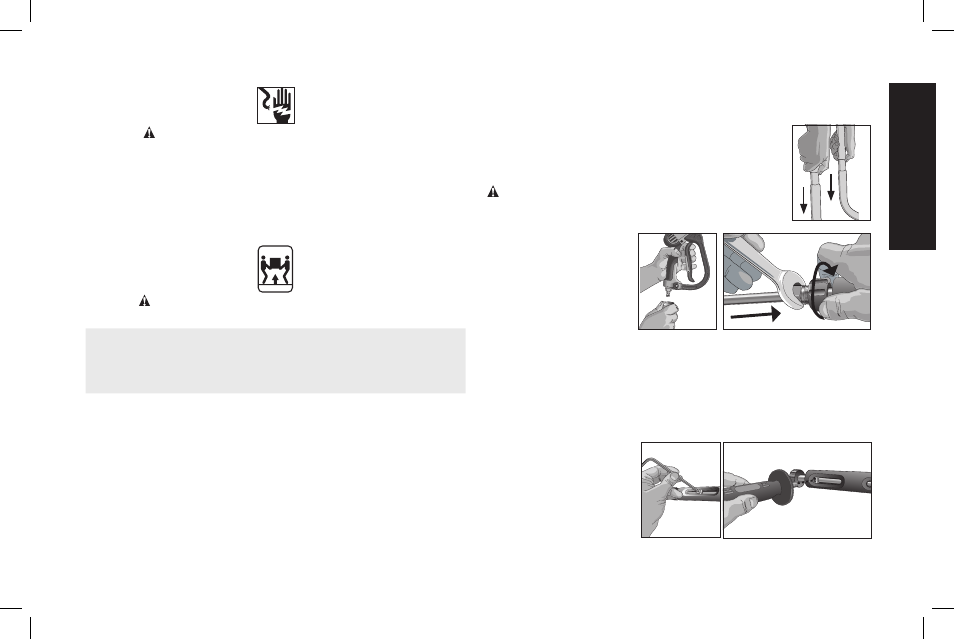

Pressure Washer Assembly (Fig. 1)
1. Place handle assembly (A) onto frame, depress
the snap buttons, and slide the handle assembly
onto the frame (B) until snap buttons are secured
in place.
CAUTION: Risk of personal injury. Avoid placing
hands between handle and frame when assembling
to prevent pinching.
2. Attach high-pressure
hose (C) to quick
connect spray gun
(D). NOTE: Two hoses
(25' and 50') are
supplied, these hoses
can be connected
together or used separately. Make sure all connections are
secure.
3. Connect quick connect spray wand (E) to spray gun. NOTE: An
extension wand is also supplied with this unit, to use the exten-
sion wand: Connect the extension wand to the spray gun and
then connect the quick connect spray wand to the extension
wand. Make sure all connections are secure.
4. Remove the set screw
from spray gun exten-
sion using a 3/16" hex
wrench.
5. Thread the side han-
dle (R) into spray gun
extension and tighten
to desired position.
