17
© 2002 Directed Electronics, Inc

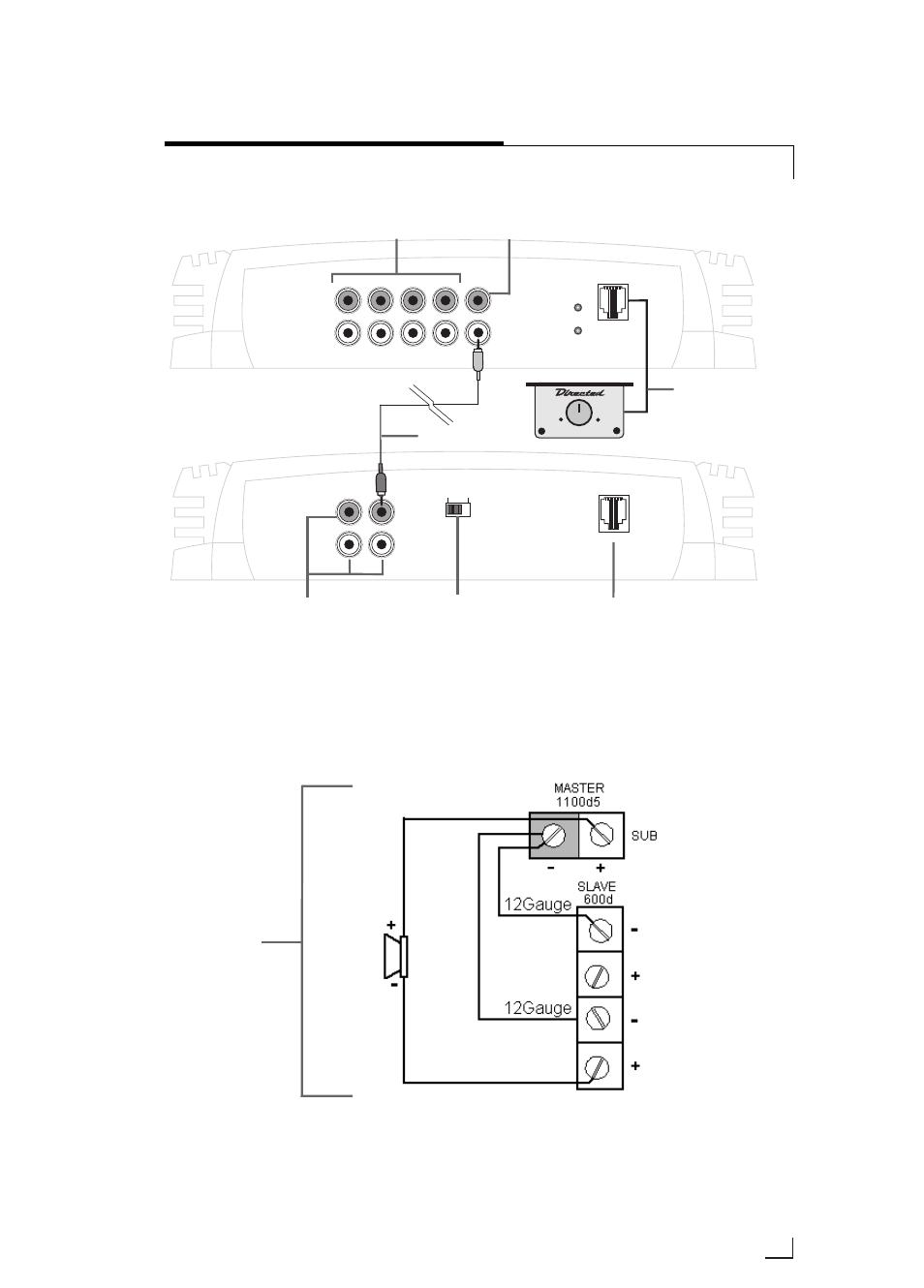

FIGURE 6—EXTERNAL SYNC BRIDGED 600d/1100d5
5
Speaker Wiring (top view)
NNOOTTEE:: The dual + and -- subout terminals of the 600d are paralleled internally and the
combined load impedance should be taken into consideration when connecting multiple
subwoofers.
INPUT I/O
R
L
SLAVE MASTER
REMOTE
SLAVE IN
SYNC OUT
BRIDGE OUT
SUB LEVEL
MIN MAX
1+2 3+4 SUB 1-4 OUT SUB OUT
SYNC OUT
BRIDGE OUT
R
L
SLAVE MASTER
REMOTE
POWER
PROTECTION
1
Do Not Use
4 Do Not Use
2
Do Not Use
Master (1100d5)
Slave (600d)
3
