CARE AND MAINTENANCE
Deck Removal - Electric Clutch - Model 3014
1. Place cut height lever in lowest cut position.

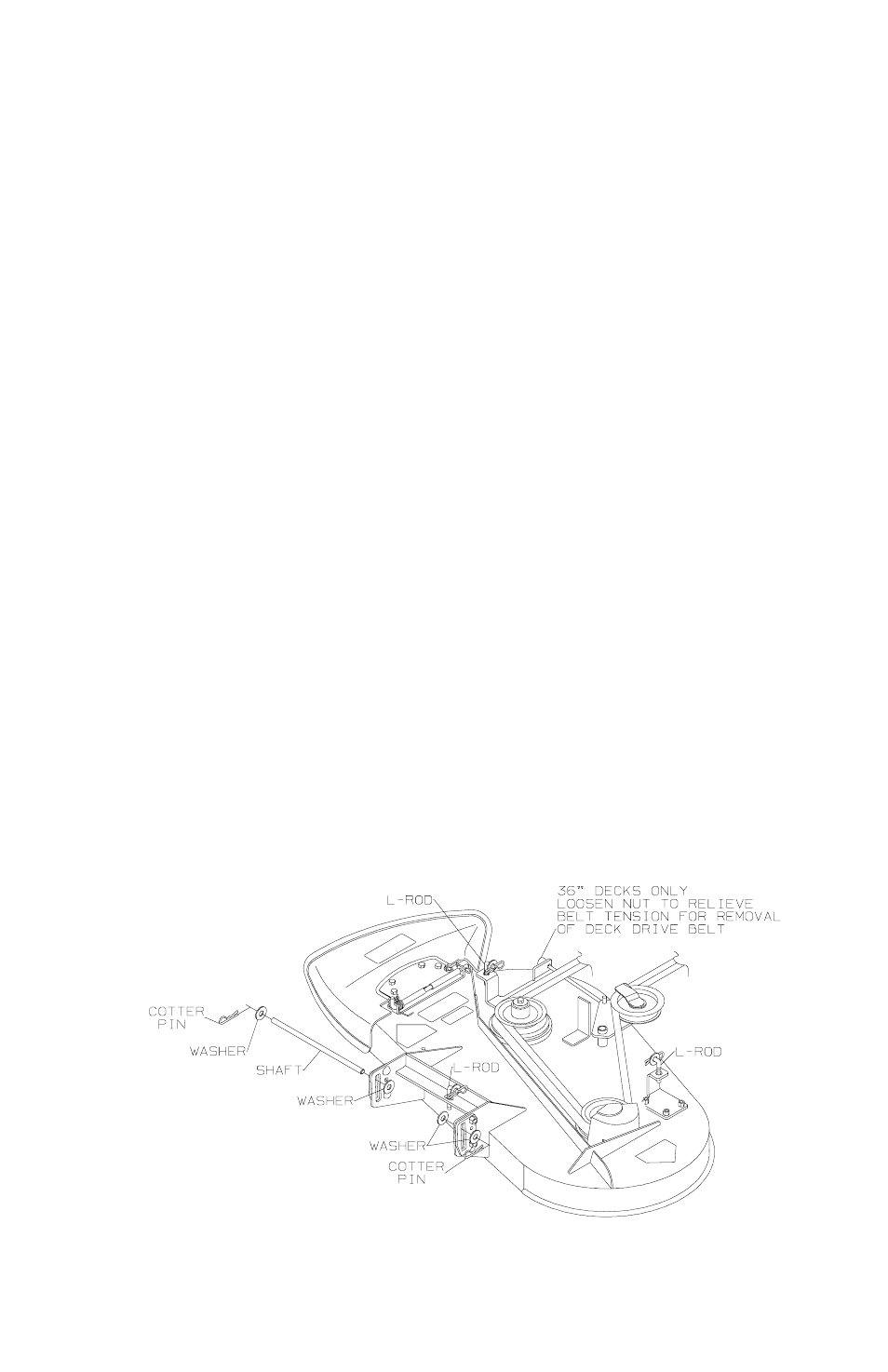

2. For 36” decks, loosen nut on belt idler shock mount
until belt can be removed from electric clutch pulley
on the bottom of the engine. Refer to illustration below.
For 42” decks, pull belt idler back to allow belt to be
removed from idler pulley and electric clutch pulley.
3. Remove hair pin cotter and washer from one end of
deck support cross shaft. Note location of remaining
shim washers used between chassis and mower deck
pan arms. Slide shaft from chassis and mower deck.
4. Remove hair pin cotter and washer from each deck
adjustment rod. Carefully push each link toward the
inside of the mower chassis. At this point, deck will
drop down.
5. Carefully raise and support front of chassis. Slide
mower deck to either side for removal. (Reverse
procedure to reinstall deck assembly.)
