DFI SR330-N User Manual
Page 48
48
2
Hardware Installation
Serial ATA Connectors
The Serial ATA ports are used to connect Serial ATA devices. Con-
nect one end of the Serial ATA cable to a SATA port and the other
end to your Serial ATA device.
BIOS Setting
Configure the Serial ATA drives in the Integrated Peripherals
submenu (“OnChip IDE Device” field) of the BIOS. Refer to chapter
3 for more information.

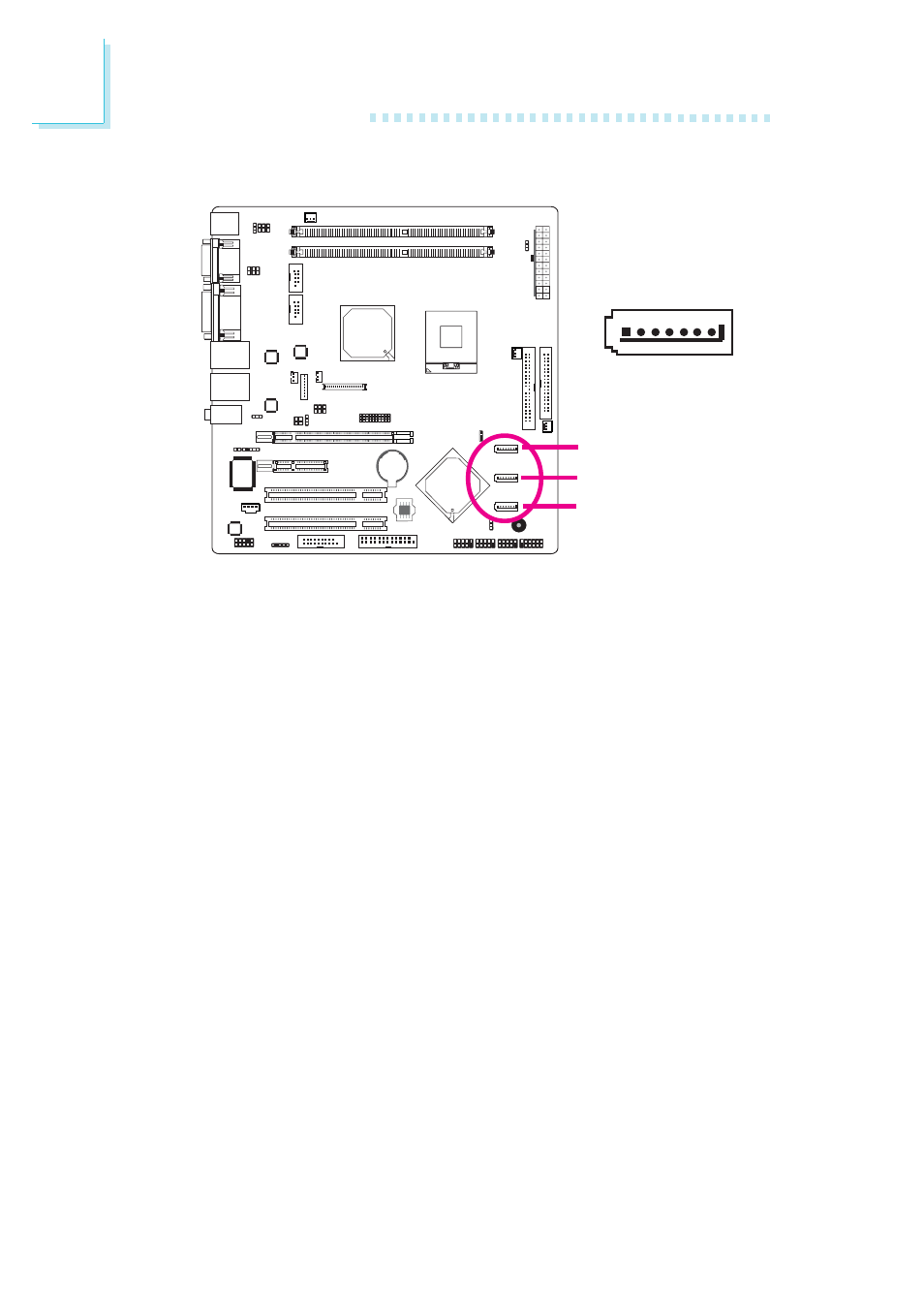

SATA 0
SATA 1
SATA 2
1
7
GND
TXP TXN GND RXN RXP GND
