Chapter 2 Hardware Installation
Chapter 2
I/O Connectors
The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Se-
rial ATA cable to a SATA connector and the other end to your Serial ATA device.
BIOS Setting
Configure the Serial ATA drives in the Advanced menu (“SATA Configuration” submenu) of the
BIOS. Refer to chapter 3 for more information.

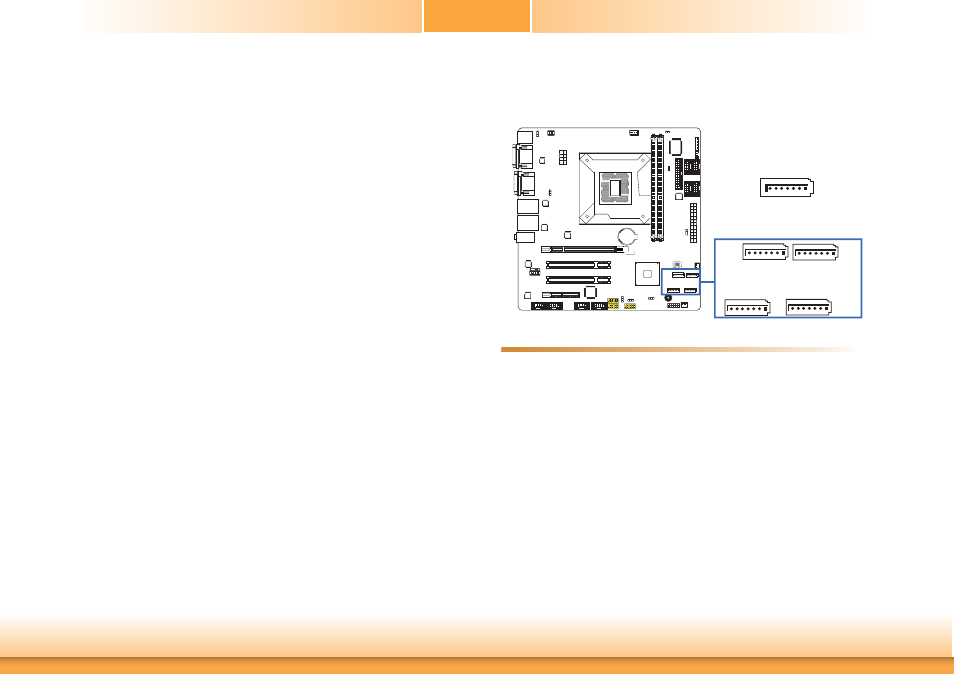

SATA (Serial ATA) Connectors
SATA 2.0 3Gb/s
• 4 Serial ATA ports
- 2 SATA2 ports with data transfer rate up to 3Gb/s
7
RXN GND TXP TXN GND
1
RXP GND
Features
BIOS Setting
Configure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS.
Refer to chapter 3 for more information.
Driver Installation
Install the audio driver. Refer to chapter 4 for more information.
SATA 1 SATA 0
SATA 5 SATA 4
