Hardware Installation
Cooling Fan Connectors

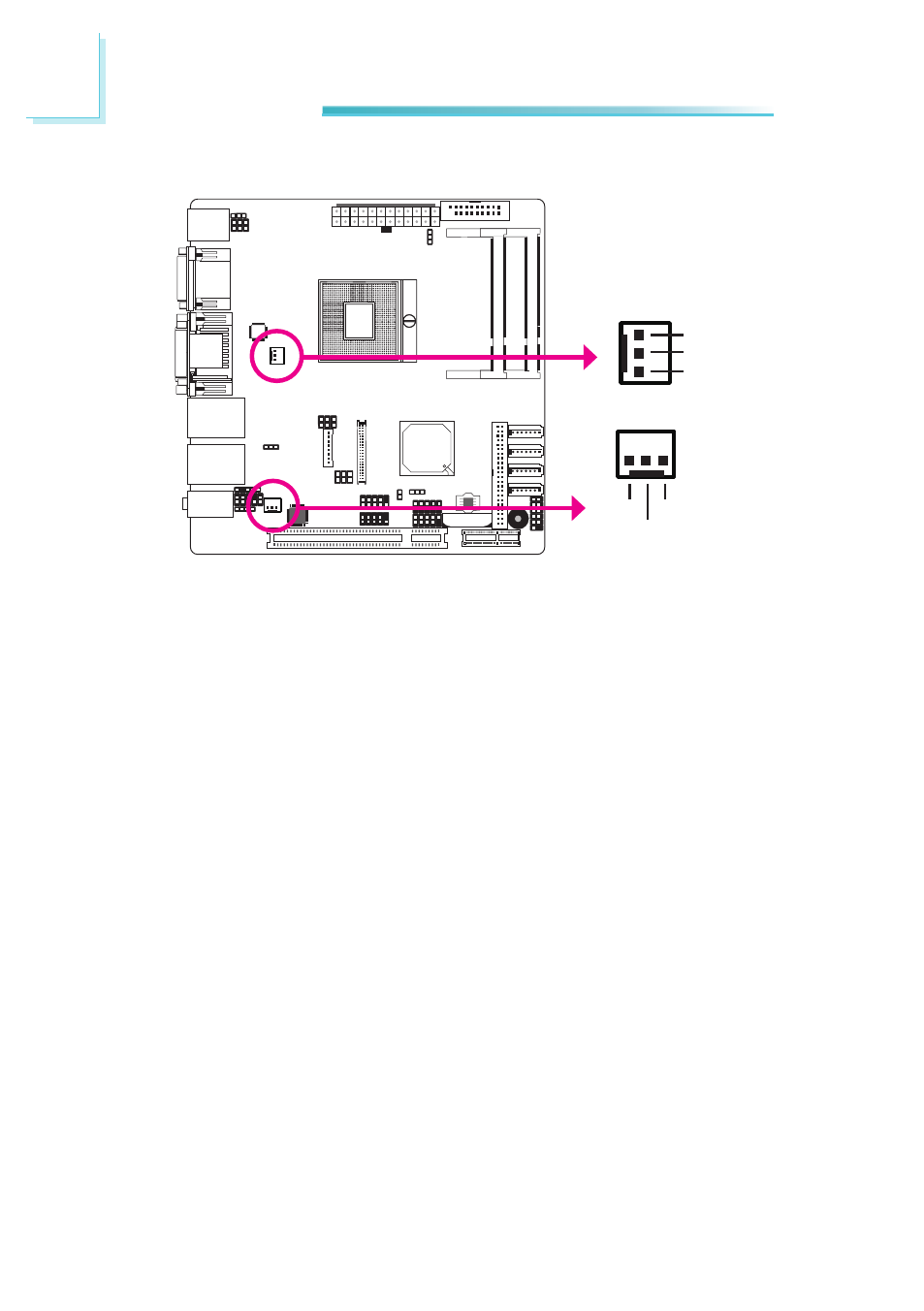

The fan connectors are used to connect cooling fans. The cooling fans will provide
adequate airflow throughout the chassis to prevent overheating the CPU and sys-
tem board components.
BIOS Setting
The Advanced menu (“PC Health Status” submenu) of the BIOS will display the
current speed of the cooling fan. Refer to chapter 3 for more information.
3
1
Sense
Power
Ground
System fan
CPU fan
1
3
Sense
Power
Ground
