Datavideo Digital Video Converter DAC-100 User Manual
Page 9

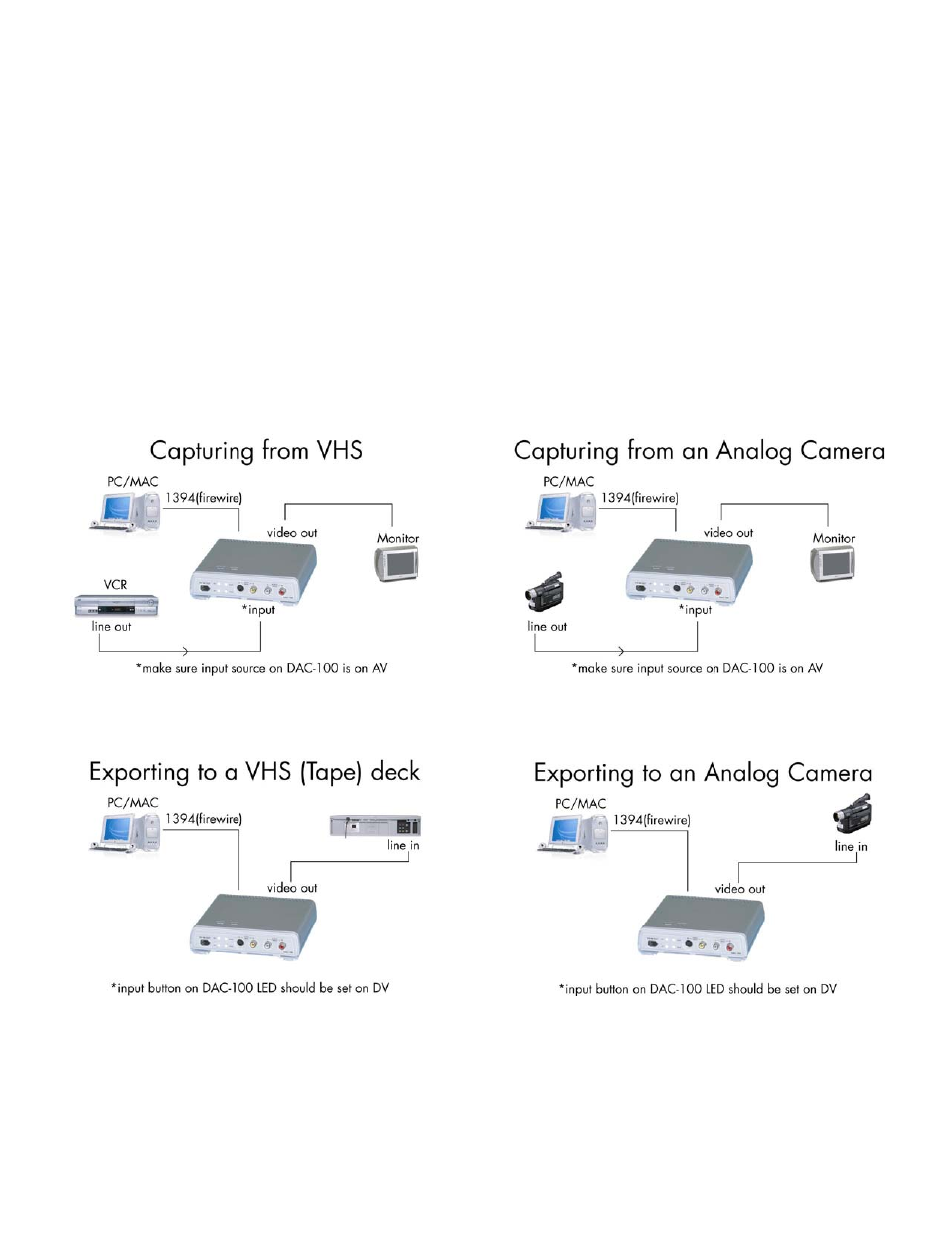

C. Diagrams of typical cable connections
Make sure your VCR or Analog source is connected to the front inputs of the DAC-100
(LED’s are on the front of the DAC-100).
A 6-pin FireWire cable can be connected to the front or rear of the DAC-100. The
opposite end should be connected to your 1394/connector on your computer.
If you would like to monitor your video, a composite video cable can be used to
connect a video monitor. Connect a composite RCA cable from the rear of the DAC-
100 and connect the opposite end to the input of your monitor.
Note: S-video cables only carry a video signal, so you will need to connect your RCA
audio cables to the converter to capture sound.
