4. Route the provided line-to-line cable from the host driver jack J9 to the next client display driver,
connecting to jack J10, as shown in Figure 4.
5. Run cable through the knockouts located on the display’s backsheet and be sure to use the provided cable
bushings that snap into place.
6. Repeat until all displays are connected.
Note: Do not connect the last display driver back to the host.
Important Notes:
• Route cables at least 6 inches away from interfering sources like ballasts, florescent light bulbs, power
sources, any type of motor, etc.
• Pull excess cable into the display cabinet, coil cable, zip tie it together and carefully place coil inside the
display cabinet.
Face 1
Price 1
Price 2
Host Driver - Comm Attached
Face 2
Price 1
Price 2
J10 - Line In
J9 - Line Out
J16 - Comm Port
J10
J9
J16
LINE TO LINE
COMM
PORT
J10
J9

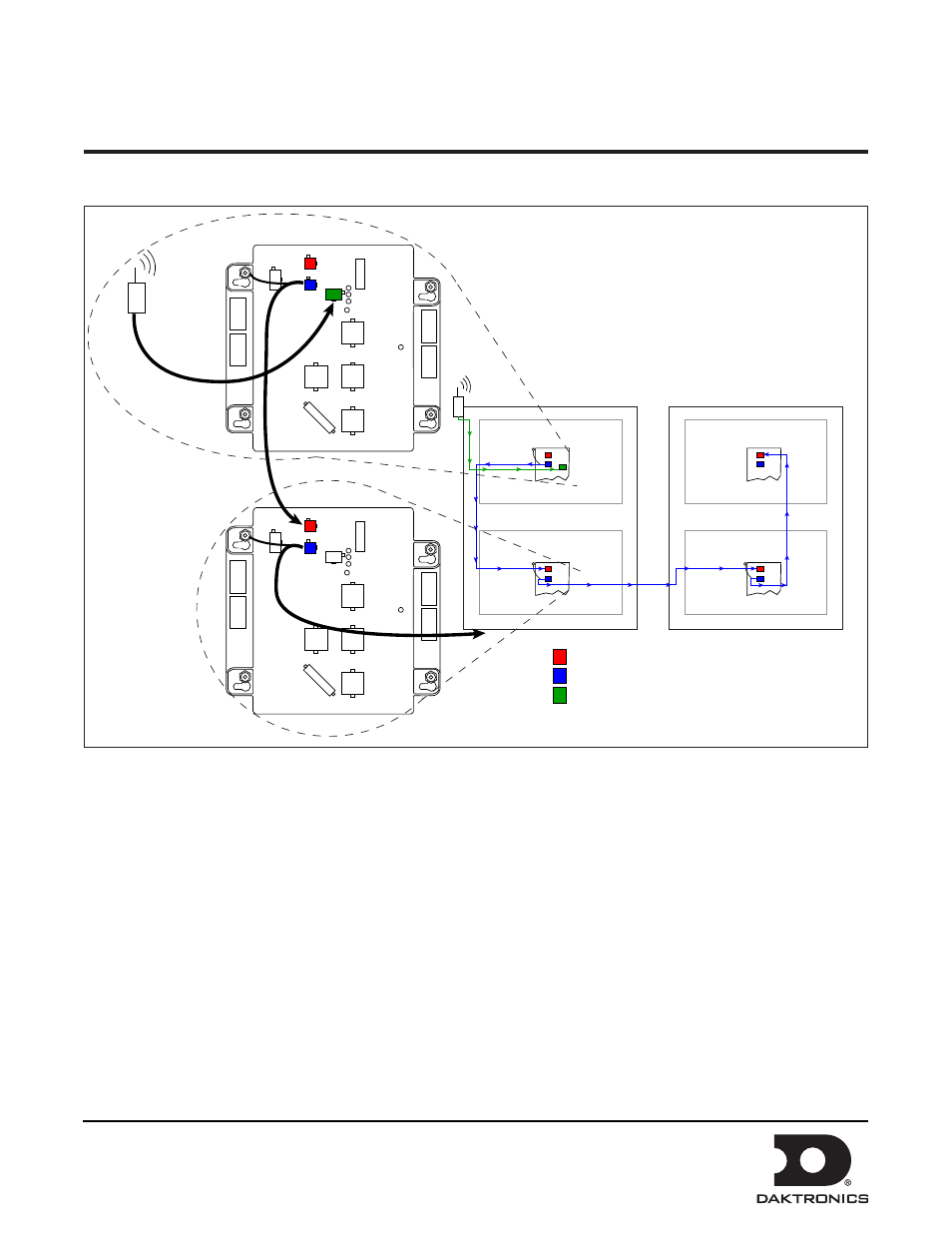

Figure 4: Line-to-Line Cable Installation
