www.desatech.com 110720-01K 14
Note: If pilot goes out, repeat steps 4 thru 7.
Thermostat models have a safety interlock
system. Wait one (1) minute before lighting
pilot again.
9. Turn control knob counterclockwise
to desired heating level. The main burner
should light. Manual control heaters should
be used in locked positions.
WARNING: Always operate
manual control heaters at the
locked positions. Operation
between these positions may
create a possible health hazard
if used in a poorly ventilated
room. Read owner’s manual for
complete instructions.
CAUTION: Do not try to ad-
just heating levels by using the
equipment shutoff valve.
OPERATING HEATER
Continued
OFF

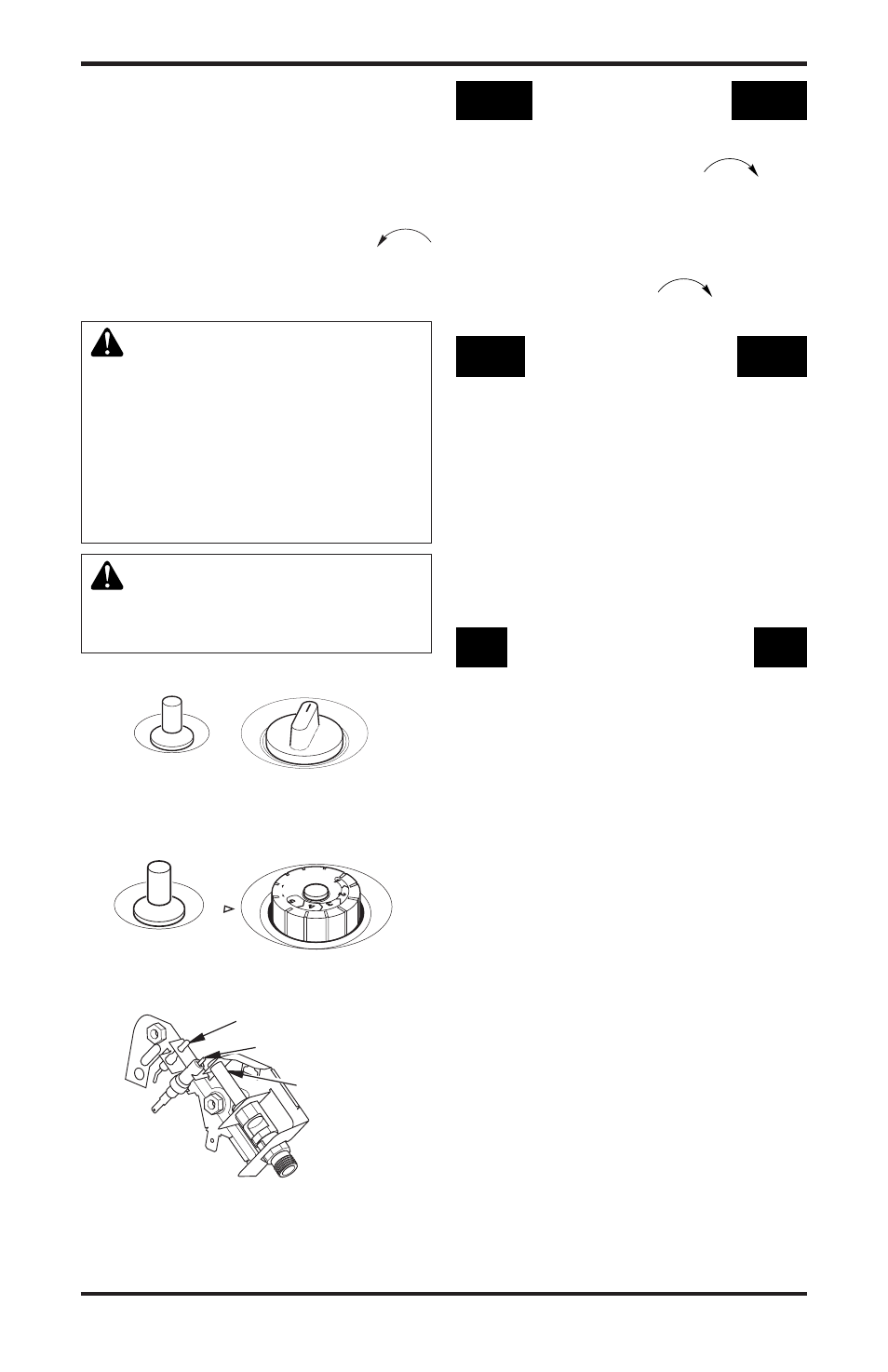

Figure 17 - Control Knob In The OFF
Position (Manual Control Models)
Ignitor Button Control Knob
Figure 19 - Pilot (pilot may vary from
illustration)
Ignitor Electrode
Pilot Burner
Thermocouple
Figure 18 - Control Knob In The OFF
Position (Thermostat Models)
Ignitor Button Control Knob
OF F P ILO T
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise to the
OFF position.
2. Turn off any electric power to the appliance
if service is to be performed.
Shutting Off Burner Only (pilot stays lit)
Turn control knob clockwise to the PILOT
position.
MANUAL LIGHTING
PROCEDURE
1. Remove front panel (see page 10).
2. Follow steps 1 through 7 under Lighting
Instructions, page 13.
3. With control knob pressed in, strike match.
Hold match to pilot until pilot lights.
4. Keep control knob pressed in for 30 seconds
after lighting pilot. After 30 seconds, release
control knob. Now follow step 9, under Light-
ing Instructions, column 2.
5. Replace front panel.
THERMOSTAT
CONTROL OPERATION
Thermostat models only
The thermostatic control used on these models
differs from standard thermostats. Standard ther-
mostats simply turn on and off the burner. The
thermostat used on this heater senses the room
temperature. The thermostat adjusts the amount of
gas flow to the burner. This increases or decreases
the burner flame height. At times the room may
exceed the set temperature. If so, the burner will
shut off. The burner will cycle back on when room
temperature drops below the set temperature. The
control knob can be set to any heat level between
1 and 5.
Note:
The thermostat sensing bulb measures the
temperature of air near the heater cabinet. This
may not always agree with room temperature
(depending on housing construction, installation
location, room size, open air temperatures, etc.).
Frequent use of your heater will let you determine
your own comfort levels.
