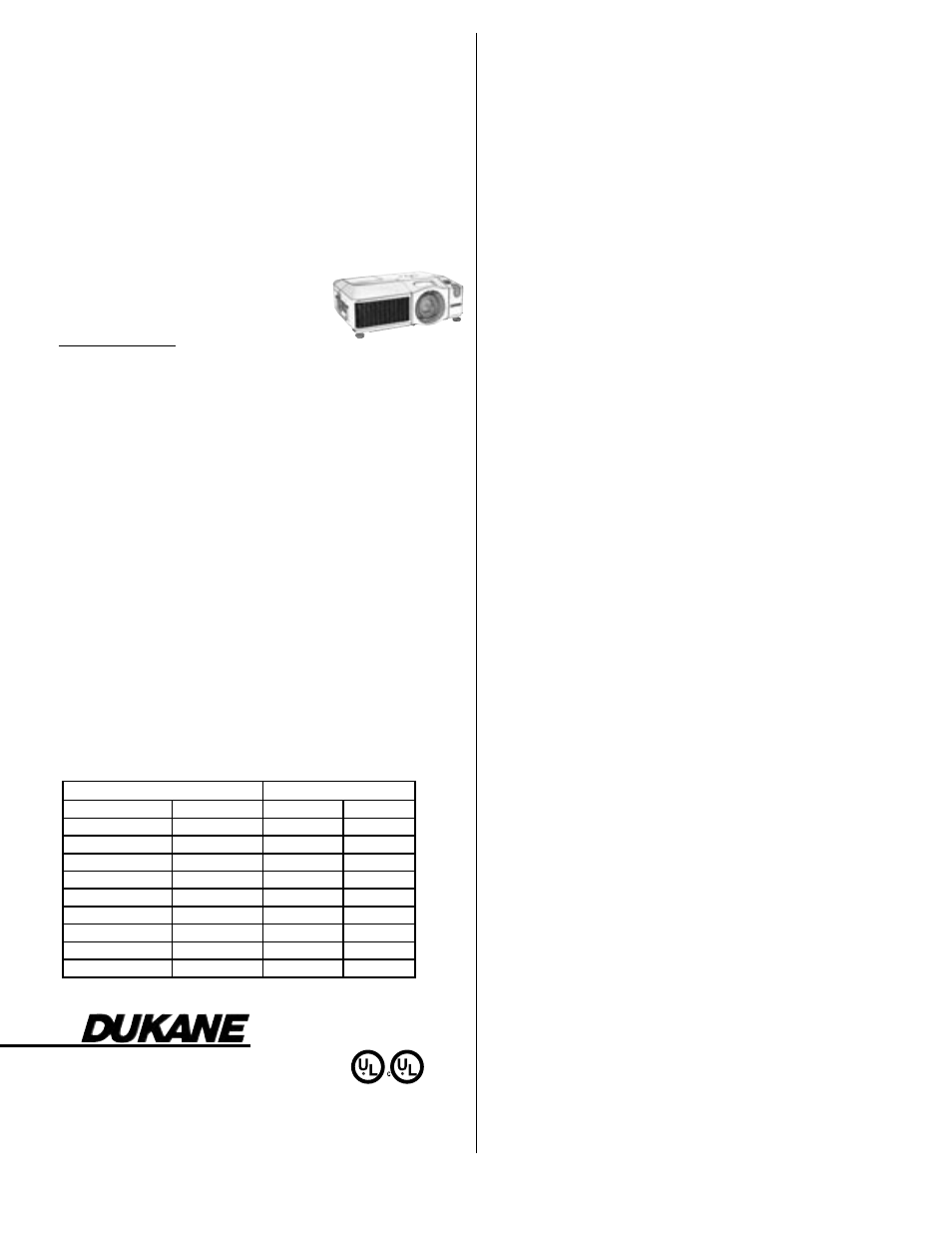

The ImagePro 8948 is a LCD projector that can be used
in a variety of applications. With sufficient brightness for
classrooms and conference rooms the 8948 is designed to
be reliable and easy to maintain.
Computer-less presentations using your SD Card or USB
Flash Drive. Wireless operation using 802.11 b/g via
an SD receiver. Can connect to 4 PC's wirelessly. Lamp
and filter access points are conveniently located and
Kensington™ lock slot and our new
security bar makes this projector secure
and a wise multimedia investment.
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
[email protected]
www.dukcorp.com/av
ImagePro 8948
LCD projector
Key features:
• XGA (1024 x 768) resolution
• 5000 ANSI lumens of brightness
• Wireless 802.11 b/g operation
• Network Capability, RJ-45
• Computer-less presentation with
SD card slot and USB type A
• New HDMI Input for HDTV
• Easy maintenance in ceiling mount with lamp access
on top & filter access on side
• Monitor loopthrough & remote mouse control
• Remote control with "My Buttons"
• Optional bayonet style lenses available
• 4 Built-in 4W speakers with SRS WOW™ technology
• Input source naming
• Horizontal & vertical lens shift
• HDTV ready & progressive scan
• Kensington lock slot & security bar
• Five Year Warranty and One Year Peace of Mind Service
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program. 5
YR
8948 Projection Table
Throw Ratio (distance to width), 1.5 1.8
#080005 ImagePro is a registered trademark of Dukane Corporation
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 2.9 3.5
60 48 5.8 7.1
80 64 8.0 9.6
100 80 10.0 12.0
120 96 12.0 14.5
150 120 15.0 18.1
200 160 20.0 24.3
300 240 30.2 36.4
Specifications 8948
Image Element 0.8” polysilicon TFT x3
Brightness 5000 ANSI lumens, 2300 (whisper mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 1000:1
Scanning Frequency fh 15-106 kHz, fv 50-120 Hz
Lens Manual zoom (F=1.7 to 1.9), 1.2X.
Horizontal & vertical lens shift
Lens Throw Ratio 1.5 -1.8 :1 throw distance to image width
Keystone Correction Digital vertical & horizontal +/-40 deg.
Aspect Ratio 4:3 native, 16:9 selectable
Computer VGA, SVGA, XGA, SXGA, SXGA+ and
Compatibility UXGA Compressed, MAC16”
Video Compatibility NTSC, PAL, PAL-M, PAL-N, SECAM, HDTV
1080i, 720p, 576i, 480i/p
Image Control Freeze function, electronic magnification
and pan
Mouse Control Using USB Type B
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 275W UHB
Lamp Life 2000 hours (3000 hours Whisper Mode)
Audio 4W x 4, WOW Sound
Throw Distance 35” to 510”
Screen Size, diagonal 30” to 350”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
(2) Audio, Stereo, RCA x 2, (L/R)
Inputs, Computer (1) RGB Signal: D-sub, 15 pin, (1) RGB,
BNC X 5
(1) HDMI, (1) Audio, Stereo mini jack
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs,Control 9 pin D-sub Connector, RS232, USB
Type B remote mouse only; 3.5mm mini
stereo jack (wired remote)
Network RJ-45 port / 100Base-T
Other SD Card, USB Type A, USB Storage
Slot, Shared
Security Kensington slot, Security bar
Wireless 802.11 b/g with SD card
Fan Level 35dB, (28dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 100-120V, AC220-240V
50/60 Hz, 460 watt
Size (WxHxD) 16.5” x 5.5” x 12.6”
Weight 15.6 lbs.
Carton Size 22” x 14” x 9”
Shipping Weight 25 lbs.
Accessories Included Remote control, batteries (AA), power
cord, RGB cable, lens cover,
operator/safety manual.
Safety UL60950, C-UL, FCC Part15,
Class B, CE, EN60950
Optional Accessories Lamp 456-8943, Ceiling mount,
universal; RPA-U, Filter; MU03642
Optional Lenses
FL-601 Short fixed, throw Ratio 0.8
SL-602 Short 1.7X zoom, throw ratio 1.2 to 2.0
LL-603 Long 2.0X zoom, throw ratio 1.9 to 3.9
UL-604 Long 1.8X zoom, throw ratio 3.9 to 7.4
