The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
DS242_250 03/02
14.06"
(35.9 cm)
22.87"
(58 cm)
46.00"
(116.8 cm)
10.00"
(25.4 cm)
13.00"
(33 cm)
6.00"
(15.2 cm)
15.18"
(38.7 cm)
REMOVABLE FRONT PANEL
REMOVABLE
FRONT PANEL
1" I.P.S. DRAIN
CONNECTION
9.00"
(22.9 cm)
14.00"
(35.6 cm)
16.42"
(41.7 cm)
11.87"
(30.2 cm)
.5" I.P.S. COLD WATER
CONNECTION
.63" DIA. DRAIN
TUBE CONNECTION
.5" I.P.S. HOT & COLD WATER CONNECTION
1.5" DIA. DRAIN CONNECTION
22.75"
(57.8 cm)
9.5"
(24.1 cm)
CUTOUT DIMENSION
13"
(33 cm)
45"
(114.3 cm)
Top is 18-gauge stainless steel, has 6” (15.2 cm) risers on back and sides,
1.62” (4.11 cm) turn-down on front edge. Top has 9” x 14” (22.9 x 35.6
cm) sink welded in place, comes with chrome-plated faucet set. Top mounted
9.5” (24.1 cm) glass filler, has die-stamped drain opening with chrome-plated
wire strainer. Ice chest opening is 10.5” x 15.13” (26.7 x 38.4 cm), die-
stamped with .19” (.48 cm) raised edge. and has one-piece lift-off cover in
20-gauge stainless steel. Ice bin capacity is 45 pounds.
Ice bin liner is high-impact ABS plastic with coved corners and pitched to
1” (2.54 cm) diameter drain. Bin insulated on sides and bottom with high-
density polyurethane.
Outside body is 24-gauge galvanized metal. Unit comes with 13.19” x 45.75”
(33.5 cm x 116 cm) front panel in 20-gauge stainless steel for field installation.
250

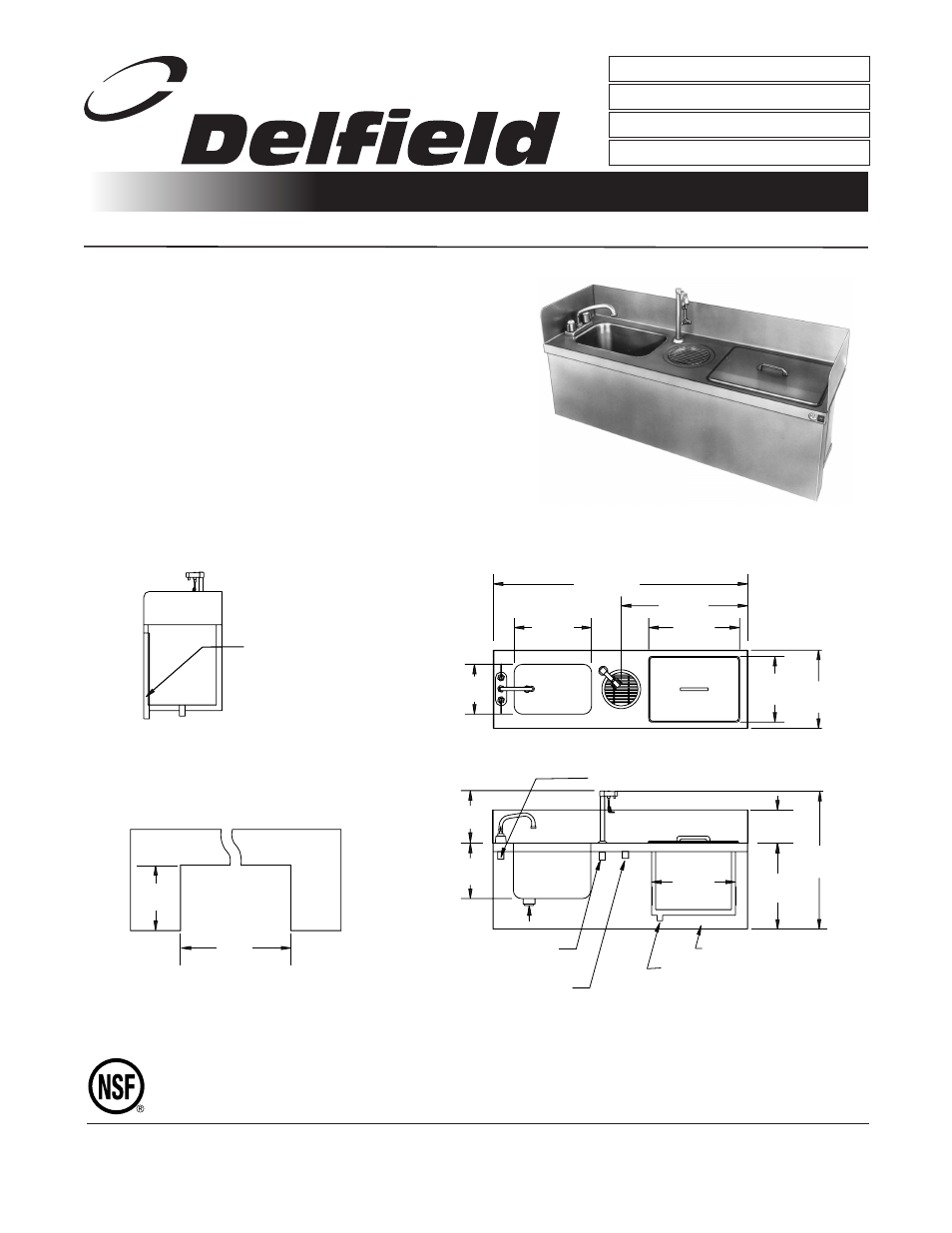

UNDERCOUNTER ICE & WATER STATION
Model 250
ELEVATION
PLAN
SIDE VIEW
Optional Accessories
•
Pitcher filler in place of glass filler. This option increases the
height of the faucet from 9.5” (24.1 cm) to 13.5” (34.3 cm).
