16
Cybex Owner’s Manual

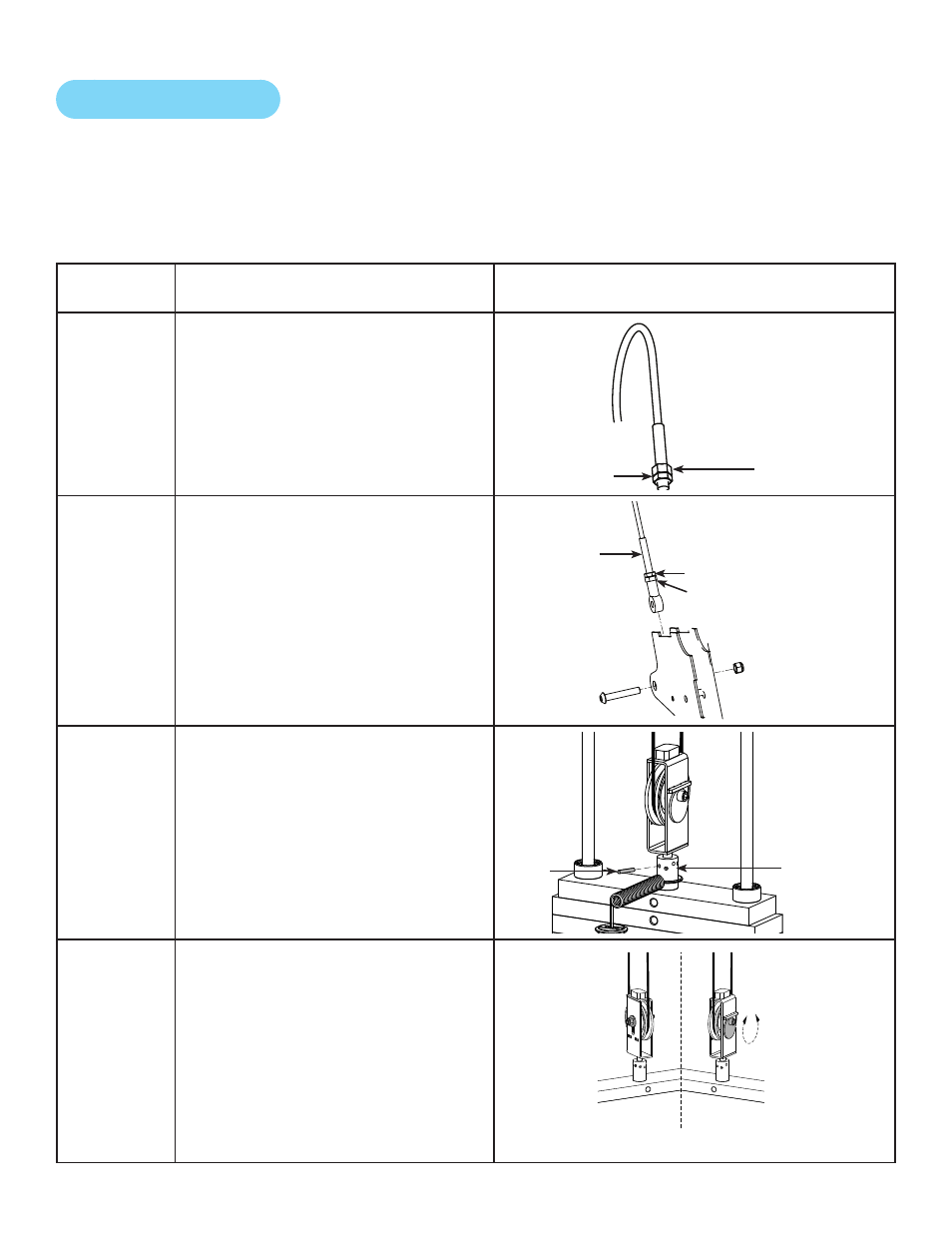

Cable Adjustment
Tools Required
9/16” Wrench (2)
Four types of cable tension adjustment are used on Cybex Strength Systems:
Cable
Adjustment
Description Diagram
Jam Nut
Adjustment
This type of adjustment uses a jam
nut and a tension adjustment nut at
the cable cam end as the primary
adjustment. The other end of the
cable usually contains a roll pin
adjustment.
Tension
Adjustment
Nut
Jam
Nut
Rod End
Adjustment
This type of adjustment uses a
socket head cap screw (SHCS)
securing a cable rod end bearing to
the machine. Primary adjustment
is by turning the rod end bearing.
The other end of the cable usually
contains a roll pin cable adjustment.
Cable
End
Jam Nut
Cable Rod End
Bearing
SHCS
Nylon
Locknut
Roll Pin
Adjustment
This type of adjustment uses a roll
pin and series of holes in the weight
stack top weight connector.
Top Weight
Connector
Roll
Pin
Cam End
Adjustment
This type of adjustment uses an
adjustment bolt on the pulley
bracket. Loosen nut and rotate cam
bolt to adjust cable.
Nut
Cam Bolt
Adjustment
