102370-01K
3
3
For more information, visit www.desatech.com For more information, visit www.desatech.com
SAFETY INFORMATION
PRODUCT IDENTIFICATION
UNPACKING
THEORY OF OPERATION
• To prevent injury, wear gloves when handling heater.
• Never attach duct work to heater.
• Do not alter heater. Keep heater in its original state.
• Do not use heater if altered.
• Turn off propane supply to heater when not in use.
• Use only original replacement parts. This heater must use de-
sign-specific parts. Do not substitute or use generic parts. Im-
proper replacement parts could cause serious or fatal injuries.
SAFETY INFORMATION
Continued
PRODUCT IDENTIFICATION
Power Cord
Hose /Regulator
Assembly
Hot Air Outlet
(Front)
Inlet
Connector
Control
Knob
Motor
Mount
Fan Guard

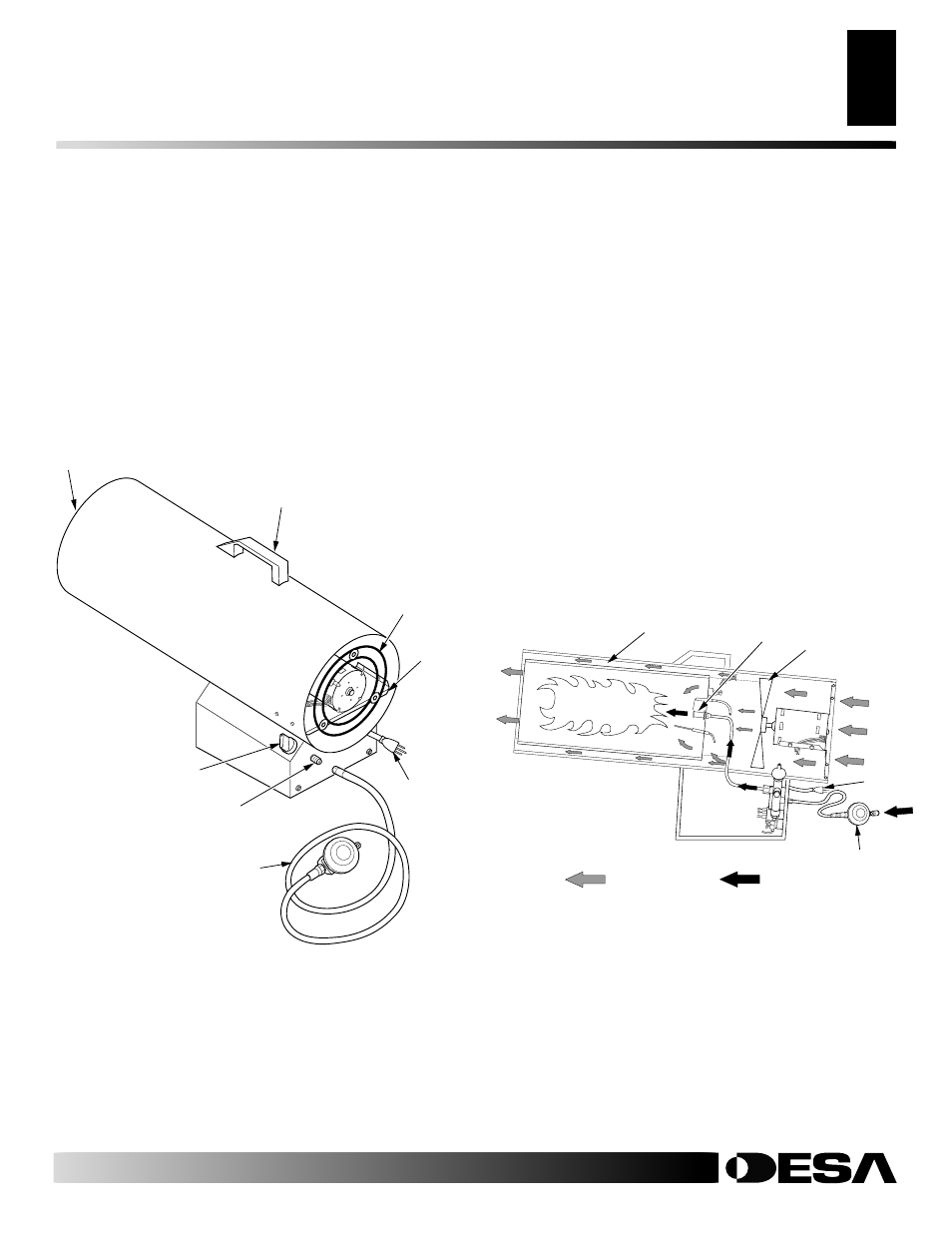

Figure 1 - 100,000 Btu/Hr Model
Handle
UNPACKING
1. Remove all packing items applied to heater for shipment. Keep
plastic cover caps (attached to inlet connector and hose/regu-
lator assembly) for storage.
2. Remove all items from carton.
3. Check all items for shipping damage. If heater is damaged,
promptly inform dealer where you bought heater.
THEORY OF OPERATION
The Fuel System: The hose/regulator assembly attaches to the
propane gas supply. The propane gas moves through the automatic
control valve and out the nozzle.
The Air System: The motor turns the fan. The fan pushes air into
and around the combustion chamber. This air is heated and provides
a stream of clean, hot air.
The Ignition System: The spark transformer and ignitor lights the
main burner.
The Safety Control System: This system causes the heater to shut
down if the flame goes out.
Note: Some parts are located differently on some models.
Air For Combustion
And Heating Fuel
Figure 2 - Cross Section Operational View
Combustion
Chamber
Clean
Heated
Air Out
(Front)
Hose/
Regulator
Assembly
Nozzle
Fan
Cool
Air In
(Back)
Power
Cord
