Dukane 2100 Series - Manual (Page 2)

D
UKANE
S
UN
S
PLASH TM M
ODEL
Y
EAR
2006
S
UPER
V
ALUE
O
VERHEAD
P
ROJECTORS

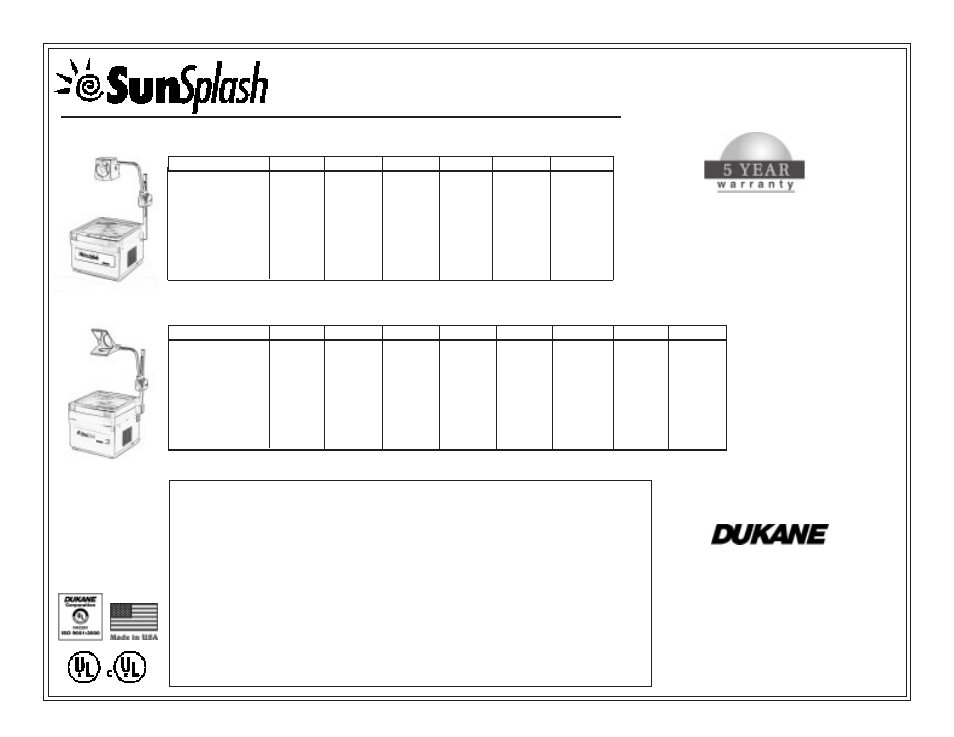

MODEL # SP2127 SP2128 SP2133 SP2134 SP2233 SP2234
Lens Configuration Singlet Singlet 2 Element 2 Element 2 Element 2 Element
Type of Head Closed Closed Closed Closed Closed Closed
Lens Focal Length (in.) 11.5 in. 11.5 in. 14 in. 14 in. 14 in. 14 in.
Lamp Changer No Yes No Yes No Yes
Lumen Output 2000 2000 2000 2000 2000 2000
Regular/Wide Angle Wide Angle Wide Angle Regular Regular Regular Regular
Base Construction ABS ABS ABS ABS Steel Steel
Lamp Type EYB EYB EYB EYB EYB EYB
Lamp Life Hrs. 75 75 75 75 75 75
2000 Lumen Units
MODEL # SP3127 SP3128 SP3134 SP4123 SP4127 SP4128 SP4134 SP4234
Lens Configuration Singlet Singlet 2 Element Singlet Singlet Singlet 2 Element 2 Element
Type of Head Closed Closed Closed Open Closed Closed Closed Closed
Lens Focal Length (in.) 11.5 in. 11.5 in. 14 in. 11.5 in. 11.5 in. 11.5 in. 14 in. 14 in.
Lamp Changer No Yes Yes No No Yes Yes Yes
Lumen Output 3000/2400 3000/2400 3000/2400 4000/3200 4000/3200 4000/3200 4000/3200 4000/3200
Regular/Wide Angle Wide Angle Wide Angle Regular Wide Angle Wide Angle Wide Angle Regular Regular
Base Construction ABS ABS ABS ABS ABS ABS ABS Steel
Lamp Type ENX-5 ENX-5 ENX-5 FXL FXL FXL FXL FXL
Lamp Life (Hi/Ext) Hrs. 125/250 125/250 125/250 60/130 60/130 60/130 60/130 60/130
3000/4000 Lumen Units New Longer Lamp Life Operation! (Lamp Life up to 250 Hours)
Common Specifications
Optical
Projection Stage Size of 10.5” x 10.5”
High Quality Fresnel Lens
Transmissive Design
Mechanical
Quiet Cooling Fan
Recessed Marker Tray
Rack and Pinion Focusing
East-West & North-South Mounting Holes for
Acetate Roll Attachment (steel base units only)
Electrical
120V, 60 Hz Power Operation
Permanently Attached 10’ Power Cord
Cord Storage Compartment
Dimensions
2000 Lumen Units: 10.1”H x 13”W x 15”D
3000/4000 Lumen Units 12.3”H x 13”W x 15”D
Shipping Weights: 2000 Lumen 21.5 lbs. (9.8 kg),
3000/4000 Lumen 23.5 lbs. (10.7 kg)
Safety
Stage Interlock, Locks Off Power If Stage is Opened
Automatic Thermal Cutoff Prevents Overheating
UL and C-UL Listed
Accessories (Not Included)
Acetate Roll Brackets, Part# 438-830C
50’ Acetate Roll, Part# 310-6
Dust Cover, Part# 128-63
SunSplash® is a registered trademark of DUKANE DUKANE DUKANE DUKANE DUKANE Corporation.
* Warranty excludes lamps. Consult Dealer for details.
A
LL
M
ODELS
C
OVERED
B
Y
DUKANE’S DUKANE’S DUKANE’S DUKANE’S DUKANE’S
Form No. 11465-L-05
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free (800) 676-2485
Fax (630) 584-5156
e-mail: [email protected]
Lamp Life (Hrs.) EYB 75 ENX High/Low 125/250 FXL High/Low 60/130
*
