BCI 6820E/6821E User’s Manual
Fast Ethernet Switching Converter
Broadata Technical Support, (800) 214-0222 6
2.0 SETUP
The installation procedure is simple and straightforward.
• Attach fiber cable from the 6820E/6821E to the fiber network.
• Attach UTP cable from the 10/100Base-TX network to the RJ-45
port on the 6820E/6821E .
• Connect the power adapter to the 6820E/6821E and check that
the Power LED lights up. The TP Link and FX Link LED will light
when all the cable connections are satisfactory.

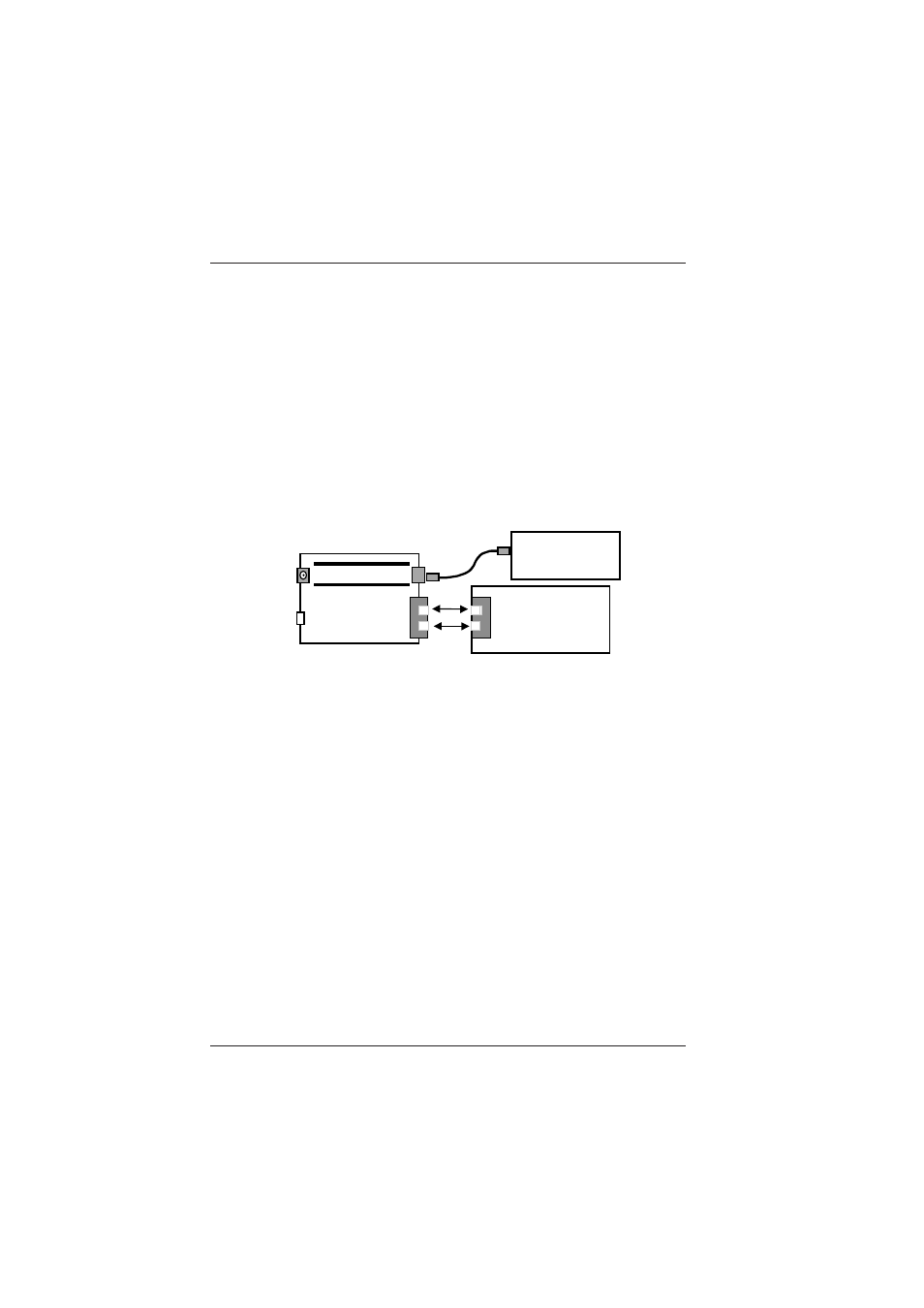

Figure 2-1
6820E/6821E Basic Network Connection
100B as e-T X
Networ k
S C/S T
F i ber
Networ k
TX
RX
RX
TX
H dx
F dx
F i g. 2 B as i c Networ k Connecti on
T P -to-S C/S T
