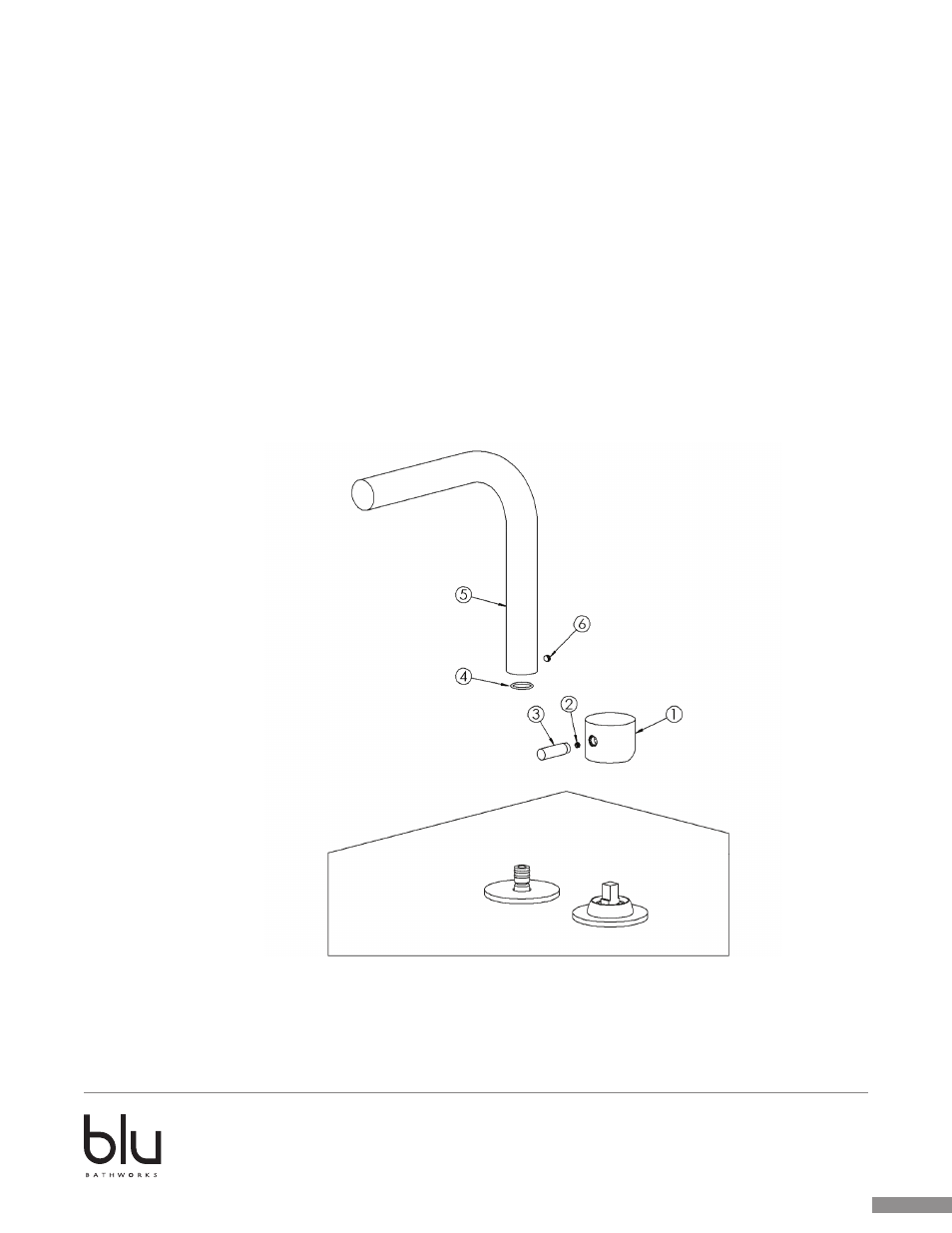

INSTALLATION STEP 4
• Place the control handle (1) and fix it with the grub screw (2).
• Screw the lever (3) on the control handle.
• Place the O-ring (4) and the spout (5).
• Fix the spout with the grub screw (6).
INSTALLATION STEP 1
• Before installation drill two holes, mmØ27 / inØ1,06 for the spout and
mmØ46 / inØ1,81 for the body mixer.
• Screw the nut (1) on the body mixer (3) and place the metal ring
(2).
• Screw the nut (4) on the threaded rod (6) and place the small
metal ring (5).
INSTALLATION STEP 4
• Place the control handle (1) and fi x it with the grub screw (2).
• Screw the lever (3) on the control handle.
• Place the O-ring (4) and the spout (5).
• Fix the spout with the grub screw (6).
