Chapter: Connectors
USB 2, 7-9
page 30
Beckhoff New Automation Technology CB3063

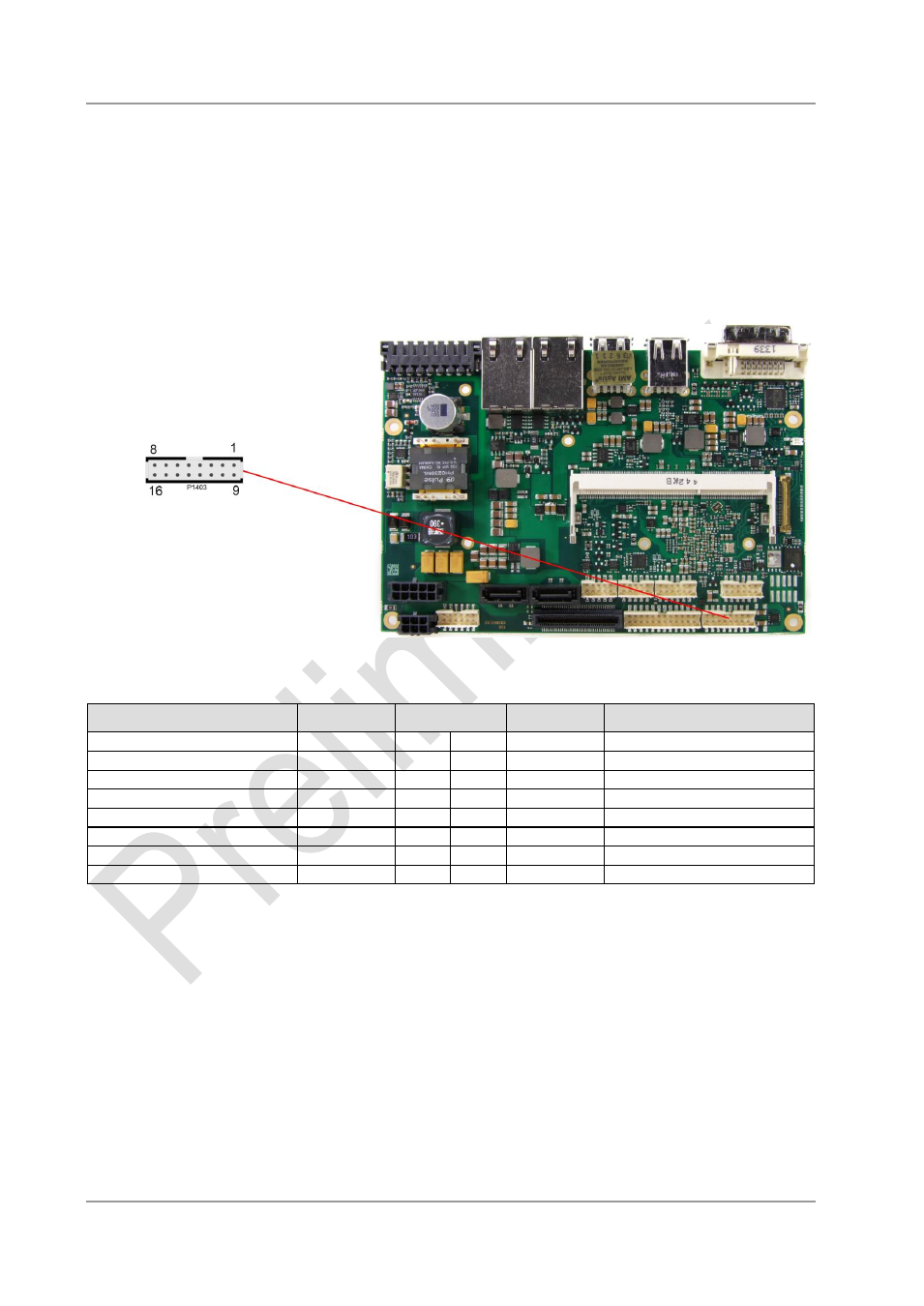

4.11 USB 2, 7-9
The USB channels 2 and 7 to 9 are available via a 2x8pin connector (FCI 98424-G52-16LF, mating
connector FCI 90311-016LF).
The USB channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse
support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup
can be changed with a USB keyboard without enabling USB keyboard support. Running Windows with
these features enabled may lead to significant performance or functionality limitations.
Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.
Pinout USB
Description
Name
Pin
Name
Description
5 volt for USB2
VCC
1
9
VCC
5 volt for USB7
minus channel USB2
USB2-
2
10
USB7-
minus channel USB7
plus channel USB2
USB2+
3
11
USB7+
plus channel USB7
ground
GND
4
12
GND
ground
ground
GND
5
13
GND
ground
plus channel USB8
USB8+
6
14
USB9+
plus channel USB9
minus channel USB8
USB8-
7
15
USB9-
minus channel USB9
5 volt for USB8
VCC
8
16
VCC
5 volt for USB9
