Seat adjustment instructions, 42” models, 44” and 50” models – Dixon 17823-0704 User Manual
Page 20
20

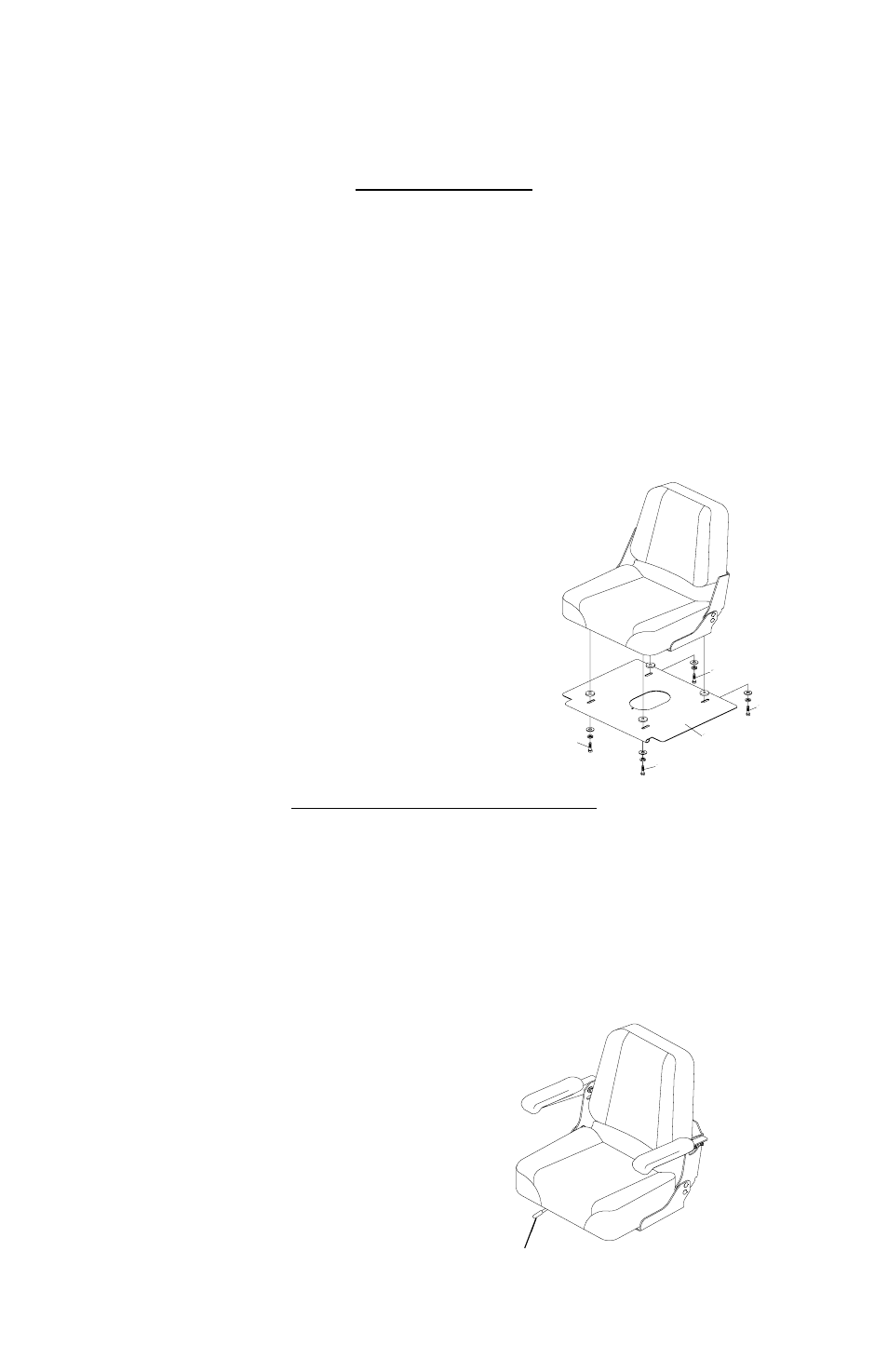

SEAT ADJUSTMENT INSTRUCTIONS
Seat Slide
Adjuster
3224
3224
3224
Seat
Plate
3224
42” Models
1. Raise seat assembly.
2. Loosen four seat bolts, P/N 3224, and slide seat
to desired position.
3. Tighten seat bolts. DO NOT operate mower
without seat bolts properly tightened.
4. Lower seat assembly.
44” and 50” Models
1. Grasp seat slide adjuster and move it into
adjustment position.
2. Slide seat forward or backward.
3. Release seat slide adjuster.
