Setting up the car audio subwoofer 7

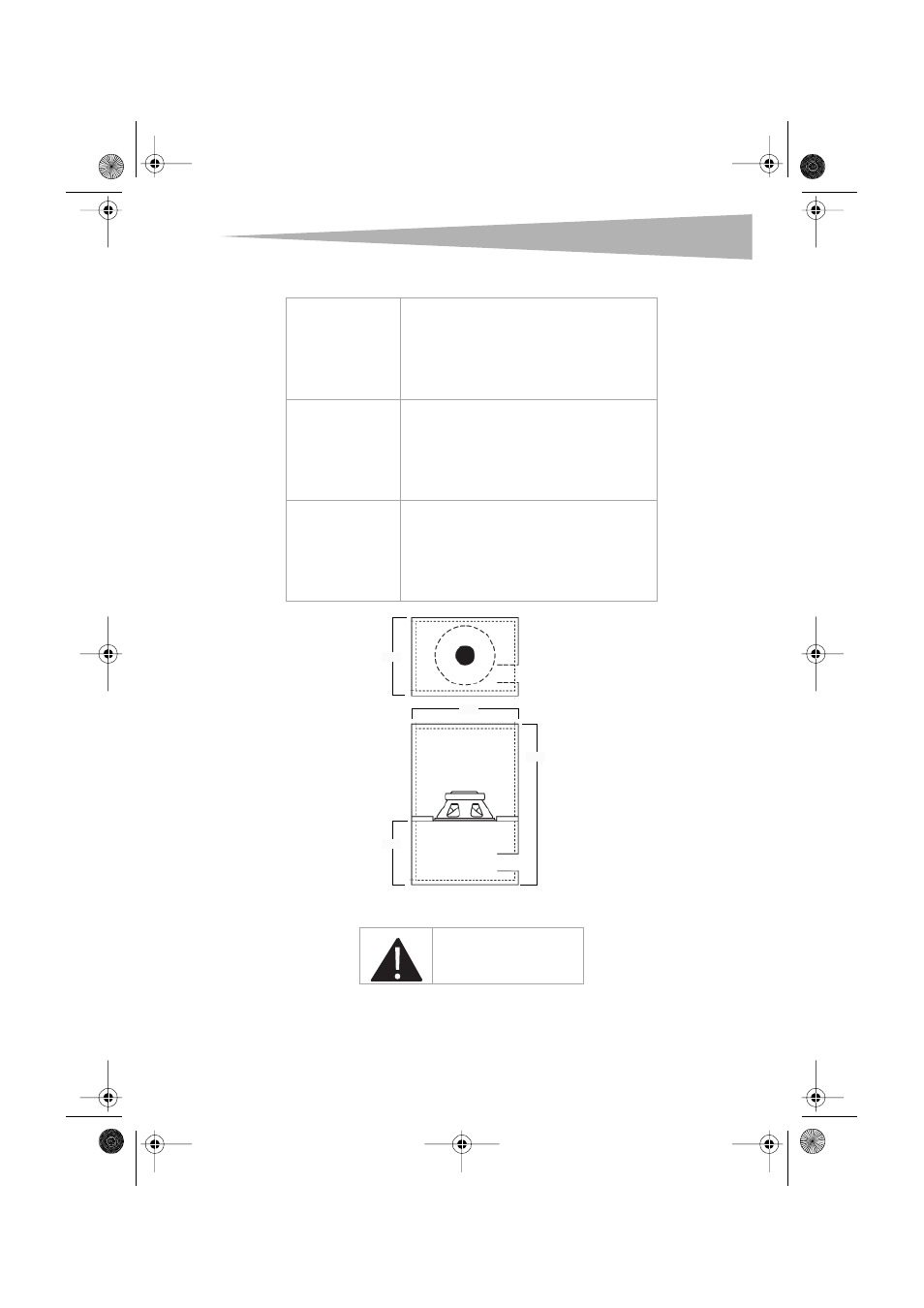

10” Bandpass enclosure
Good Bass
Performance (Mini-Enclosure
Vf) Box Volume .38 Cu. Ft.
(Vr) Box Volume .31 Cu. Ft.
(P) Port 4" ID x 5.125" Long
(Sb) Speaker baffle location/outside front: 5.75"
Example Dimensions: 14" W x 11.75" H x 14" D
Better Bass
Performance Small Enclosure
(Vf ) Box Volume .54 Cu. Ft.
(Vr) Box Volume .46 Cu. Ft.
(P) Port 4" ID x 4.812" Long
(Sb) Speaker baffle location/outside front: 7.5"
Example Dimensions: 14" W x 15.2" H x 14" D
Best Bass
Performance Medium Enclosure
(Vf ) Box Volume .60 Cu. Ft.
(Vr) Box Volume .82 Cu. Ft.
(P) Port 4" ID x 7.125" Long
(Sb) Speaker baffle location/outside front: 7.375"
Example Dimensions: 14" W x 19.75" H x 14" D
Dimensions are external
Depth
Height
Width
Vr
Port
Port
Vf
Sb
