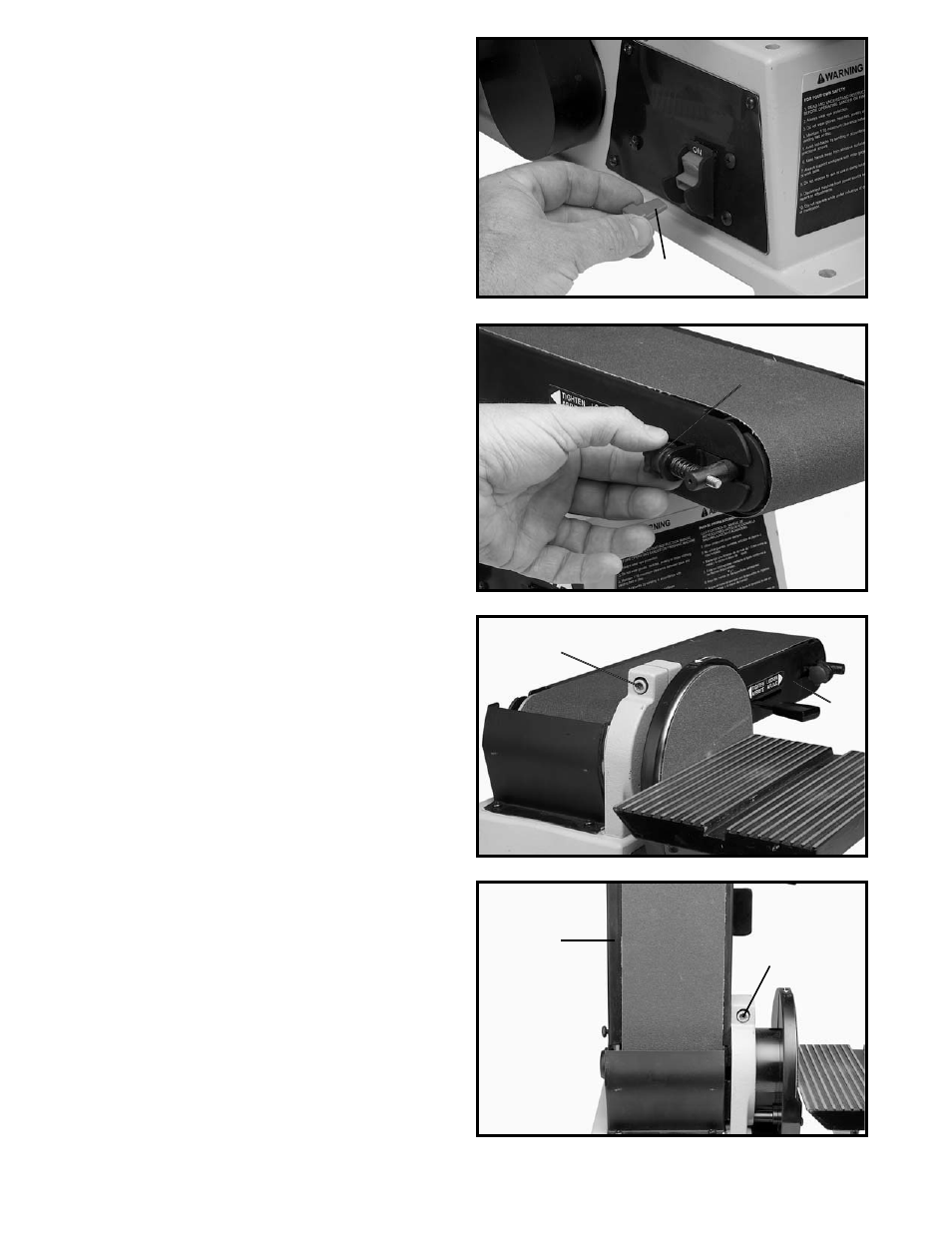

CHANGING POSITION
OF SANDING ARM

1.

DISCONNECT MACHINE FROM POWER SOURCE.

2.

The sanding arm (A) can be used in the horizontal

position, as shown in Fig. 25; vertical position, as shown
in Fig. 26; or any angle in between by loosening screw
(B), positioning the arm (A) to the desired angle and
tightening screw (B).

Fig. 26

A

B

A

B

Fig. 24

TRACKING THE
SANDING BELT

1.

Turn the switch “ON” and “OFF” and check to see

if the sanding belt tends to move to one side or the
other on the two sanding drums. If the belt does not
move to one side or the other and rides on the center
of the sanding drums the belt is tracking properly.

2.

If the sanding belt moves toward the disc, turn the

tracking knob (A) Fig. 24, counterclockwise 1/4 turn.

3.

If the sanding belt moves away from the disc, turn

the tracking knob (A) Fig. 24, clockwise 1/4 turn.

4.

Turn the switch “ON” and “OFF” again, and check

to see if the sanding belt moves to one side or the other
and readjust tracking knob if necessary.

A

Fig. 23

LOCKING SWITCH IN
THE “OFF” POSITION

IMPORTANT: When the machine is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use. This can be done by grasping the
switch toggle (B) Fig. 23, and pulling it out of the switch
as shown. With the switch toggle (B) removed, the switch
will not operate. However, should the switch toggle be
removed while the machine is running, it can be turned
“OFF” once, but cannot be restarted without inserting
the switch toggle (B).

B
