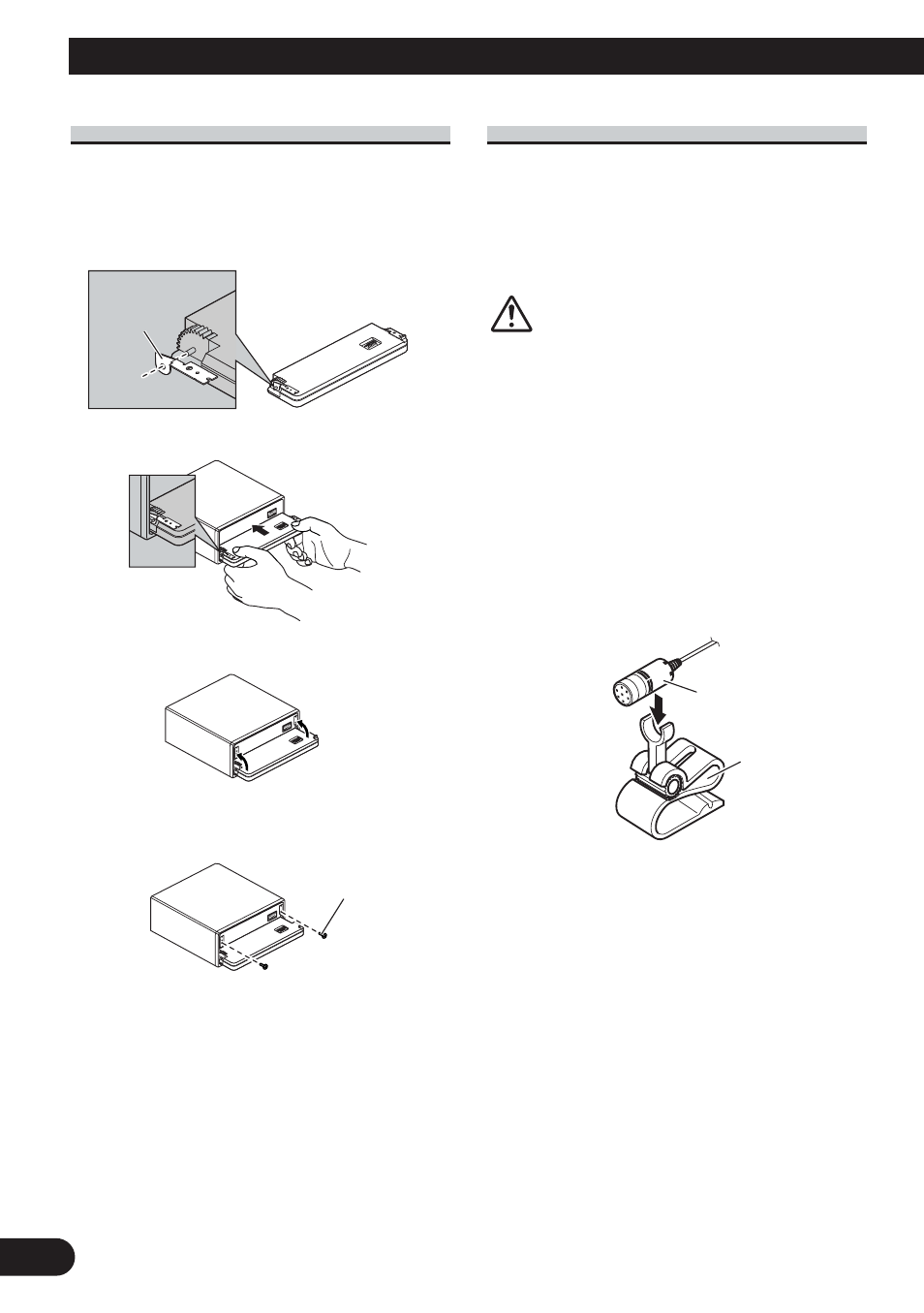

Installation
Fastening the front panel
If you do not plan to detach the front panel, the
front panel can be fastened with supplied screws
and holders.
1. Attach the holders to both sides of the front panel.
2. Replace the front panel to the unit.
3. Flip the holders into upright positions.
4. Fix the front panel to the unit using screws.
Installing the microphone
Installation notes
Install the microphone in a position and ori-
entation that will enable it to pick up the
voice of the person operating the system.
CAUTION
It is extremely dangerous to allow the
microphone lead to become wound
around the steering column or gearstick.
Be sure to install the unit in such a way
that it will not obstruct driving.
When installing the microphone on
the sun visor
1. Install the microphone on the micro-
phone clip.
Screw
Holder
Microphone
Microphone
clip
