PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
12.2

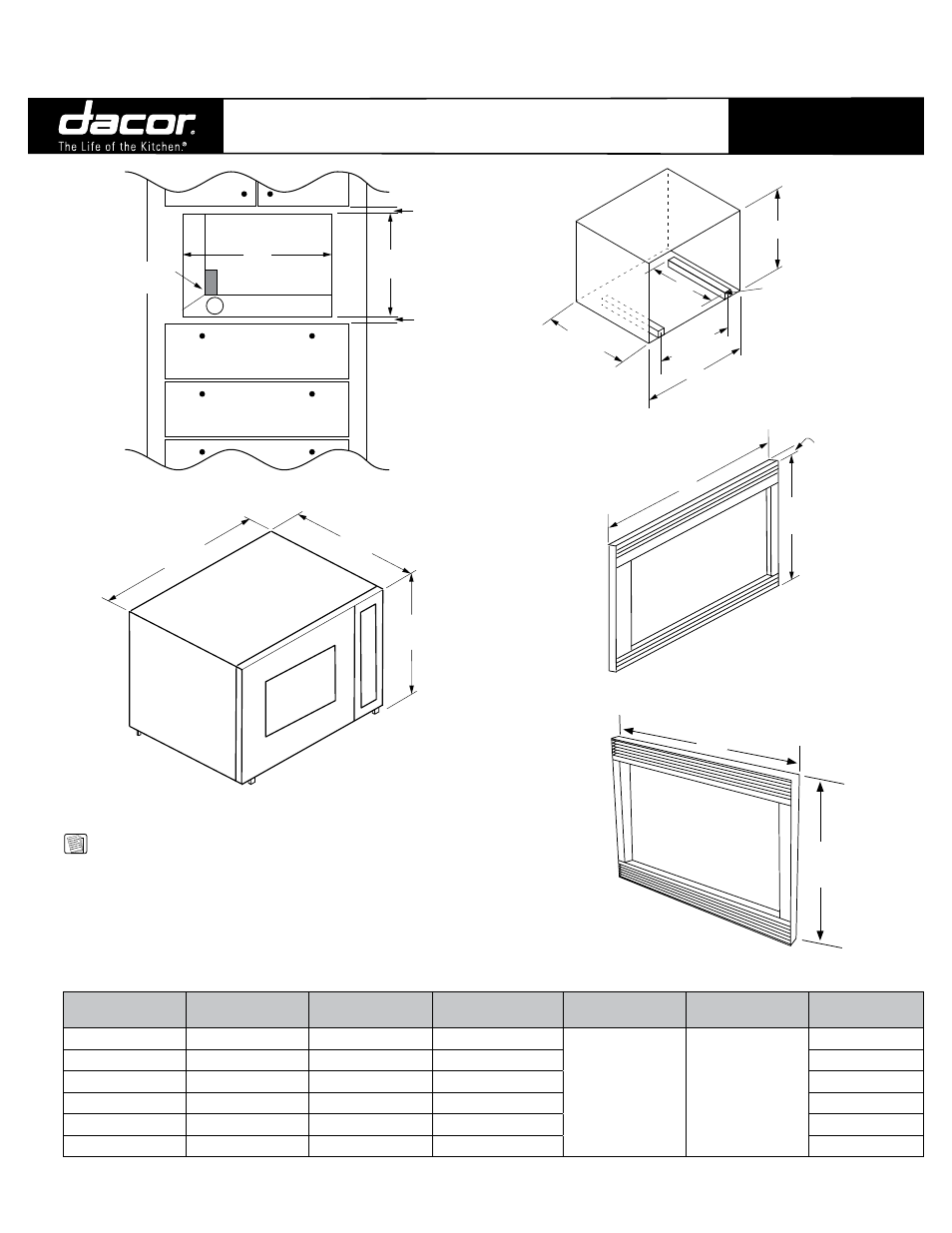

Convection Microwave Oven
DCM24
ACTK27, ACTK30, ACTK36, AOCTK27, AOCTK30
19 1/8"
(486mm)
“B”
1” (25mm)
Min.
3/4” (19mm)
Min.
3
120V
Microwave
Receptacle
MICrOwAvE AND TrIM KIT
24 5/8”
(626mm)
19”
(483mm)
14 7/8”
(378mm)
DCM24 OvErALL DIMENsIONs
Model No. “A” Overall Width “B” Cutout Width “D” Cutout Height
Dedicated Circuit
Required
Total Connected
Load
Approximate
Shipping Weight
DCM24 - - -
120VAC, 60Hz, 15A
(Breaker)
1.6kW (13A)
60 lbs.
ACTK27 27” (686mm) 25 1/4” (641mm) 19 1/8” (486mm) 15 lbs,
ACTK30 30” (762mm) 28 1/4” (718mm) 19 1/8” (486mm) 16 lbs.
ACTK36 36” (914mm) 25” (635mm) 19 1/8” (486mm) 20 lbs.
AOCTK27 27” (686mm) 25 1/4” (641mm) 18 1/2” (470mm) 19 lbs.
AOCTK30 30” (672mm) 28 1/4” (718mm) 18 1/2” (470mm) 20 lbs.
20 1/8”
(511mm)
1” (25mm)
“A”
ACTK OvErALL DIMENsIONs
(Epicure™ or Millennia™ Trim Kit - use these models
when stacking with the Classic Wall Oven)
CUTOUT DIMENsIONs IsOMETrIC vIEw
AOCTK OvErALL DIMENsIONs
(Epicure™ or Millennia™ Trim Kit - use these models
when stacking with the Discovery Wall Oven)
NOTE:
1. 24” (610mm) minimum exterior cabinet depth.
2. See the Combination Installation (CI) Section if
installing with a wall oven, or warming oven.
3. 3/4” (19mm) support platform (flush with cutout).
4. Microwave is supplied with a 48” (1219mm) power
cord, with a three prong grounded plug.
1/1 111307
“A”
20 1/8”
(511mm)
18 3/8"
(467mm)
24"
(610mm)
Exterior
cabinet depth
“D”
“B”
15 5/8"
(397mm)
Wooden Supports
2"x2" Nominal
1 9/16"x1 9/16" Actual
(not needed for ACTK36)
