Desa 000 BTu - Manual (Page 9)

www.desatech.com 117240-01C

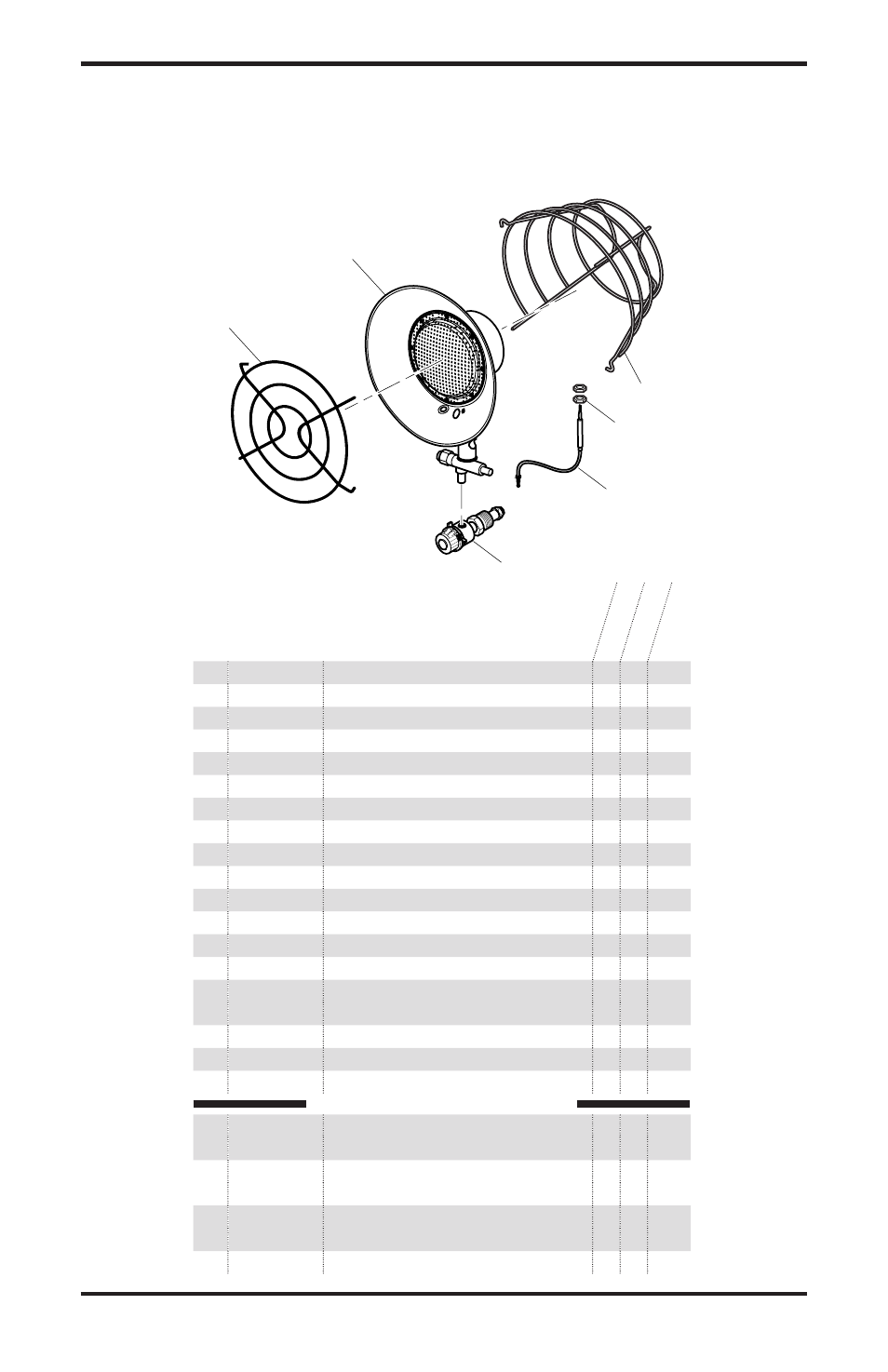

paRTS lIST
This list contains replaceable parts used in your heater. When ordering parts, follow the instructions
listed under Replacement Parts on page 7 of this manual.
KEY
NO. pART NO.
DESCRIpTION QTY.
1 11402-01 Burner Head Assembly • • 1-2
2 10011-01 Grille • • 1-2
3 0715-05 Piezo Ignitor • 1
4 102334-01 Nut, Piezo • 1
5 11405-01 Support Arm • 1
6 1140-01 Burner Head Mounting Bracket • 2
7 114145-01 Brass Screw • 2
8 11403-01 Hose Assembly • 2
11406-01 Support Arm Bracket • 1
10 11408-01 Fitting • 1
11 11407-01 Fitting • 1
12 LPA2025 POL Excess Flow/Regulator • • 2-1
13 114100-01 Thermocouple • • 1-2
14 10088-01 Thermocouple Nut • • 2-4
15 11404-01 Electrode Assembly (Round) • 1
11404-02 Electrode Assembly (Flat) • 1
16 1165-01 Rear Guard • • 1-2
17 115063-01 Wing Nut • • 2
18 115062-01 Shoulder Bolt 5/16-18 x 1.25 • • 2
pARTS AVAILABLE - NOT SHOWN
11401-07 Instruction Hang Tag (English) • 1
11401-10 Instruction Hang Tag (English) • 1
11401-08 Instruction Hang Tag (Spanish) • 1
11401-11 Instruction Hang Tag (Spanish) • 1
11401-0 Instruction Hang Tag (French) • 1
11401-12 Instruction Hang Tag (French) • 1
LPA5050 Replacement Screen Assembly • • 1-2
2
12
13
14
1
16
MODELS
SpC-15RG, HD15G, TC108, TC109, TT15G
30,000 Btu 15,000 Btu
